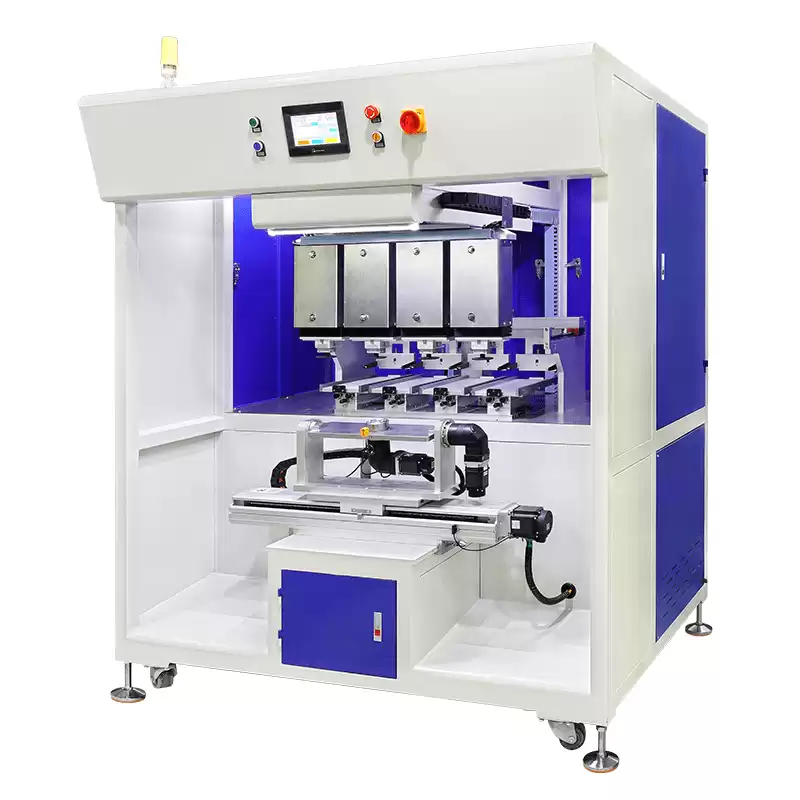

WP-4CS-SERVO-Servo Rotary Pad Printer

Features of this machine:

1. Control method: PLC plus touch screen control, flexible setting of function parameters, convenient to debug and manage

2. Inking method: sealed oil cup inking, clean scraping, environmentally friendly and ink-saving

3. Ink base adjustment: multi-function X, Y and taper adjustment of ink base to make printing positioning accurate

4. Print head control: independent control of print head, front and back, up and down stroke and speed adjustment

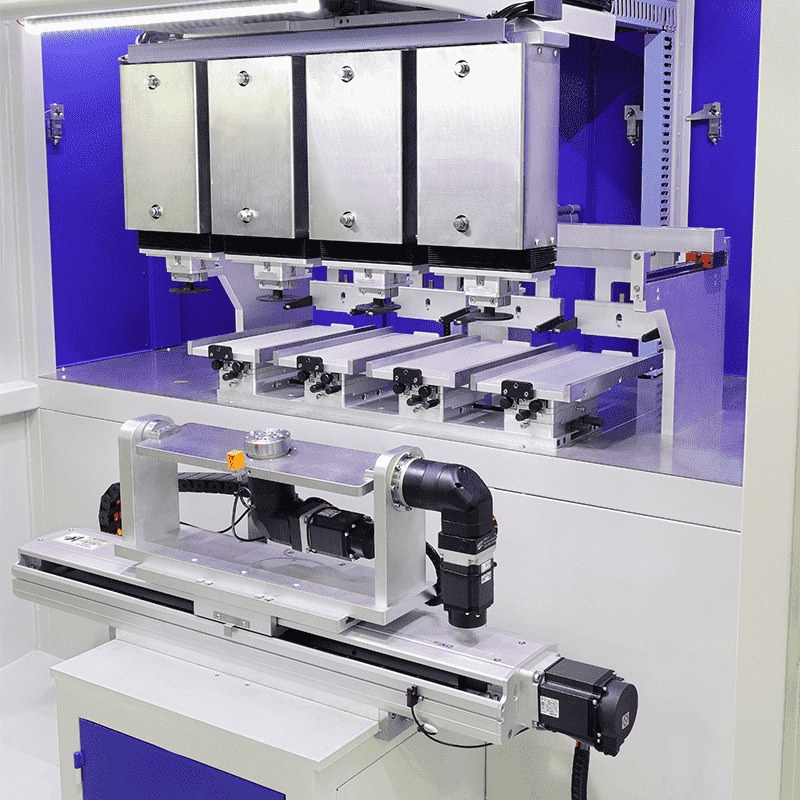

5. Printing station control: servo control shuttle module and rotary table to achieve multi-color printing of products

6. Shock absorption and performance: special shock absorption device, the machine operates very smoothly

7. Component guarantee: precision pneumatic components and solenoid valves are used






With its advanced servo-driven technology, this pad printing machine guarantees precise and accurate printing, ensuring exceptional print quality every time. Whether you need to print on various materials or irregular surfaces, this machine offers versatility and efficiency.



Technical Parameters




Up and Down Itinerary 0~200mm
Front and Back Travel 0~450mm
Steel Plate Size 150X350X10mm
Ink Cup Size φ130X140mm
Servo Rotation Angle Motor 1: 360°, Motor 2: ±90°
Printing Speed 800~900 Pcs/hr
Weight 500kg
Machine Dimensions 1350X1700X1800mm
Air Pressure
6~8 Bar
Power
3.2kW





Application




Servo pad printer is suitable for multi-color pattern printing on different plane positions of stationery, toys, gifts, electrical appliances, electronics and other products.



DAILY

• Suitable for printing for plastics, metals, glass, and ceramics

• Print different front rear image location





COSMETIC

• Suitable for printing for consumer goods

• Ideal for large-scale production lines



TOYS

• Suitable for different plane positions printing for toys

• Ensures precise control and smooth operation







Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
