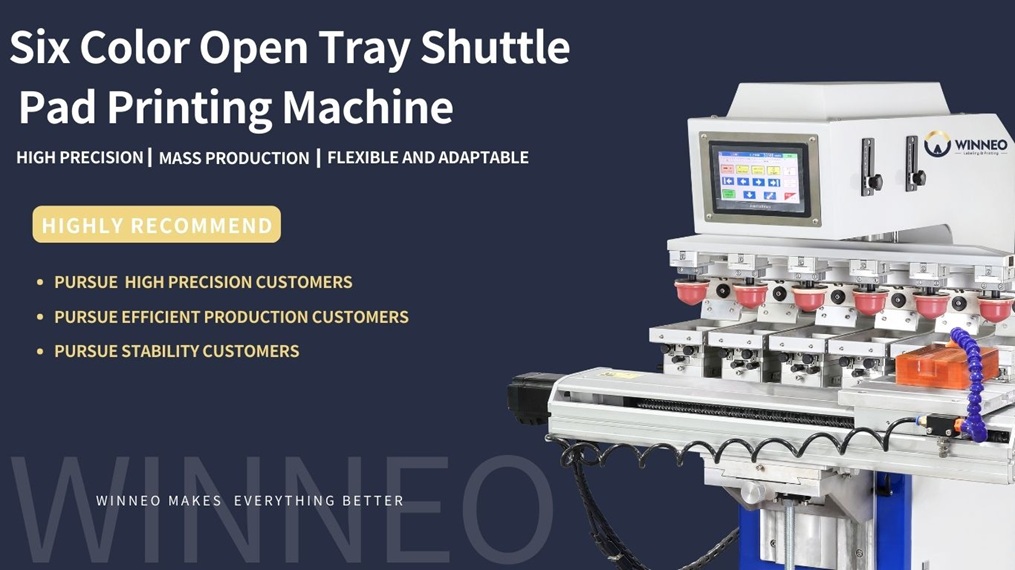

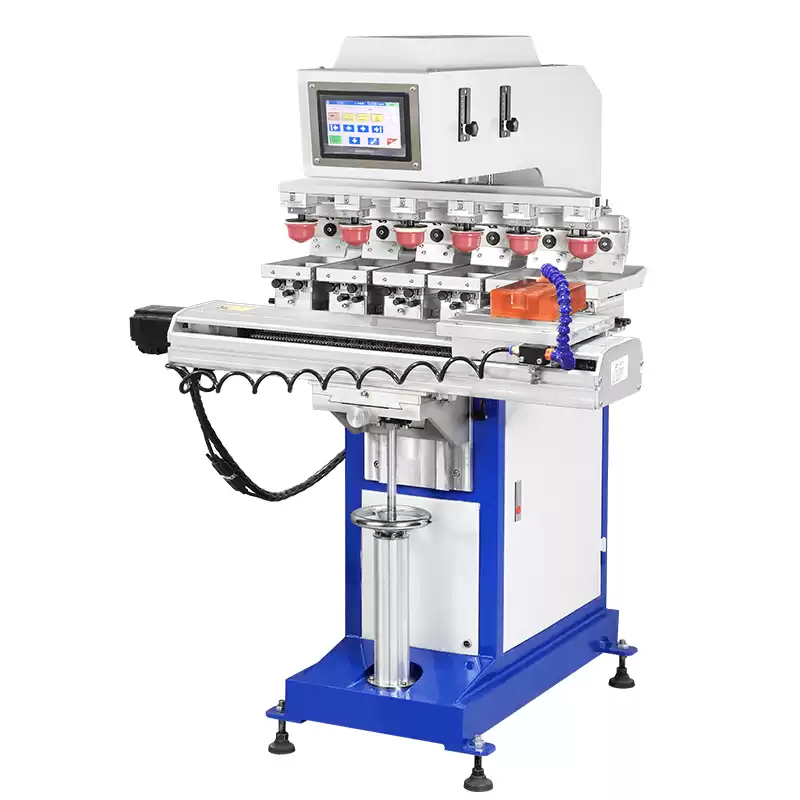

WP-6P160S-Six Color Open Tray Shuttle Pad Printing Machine

Features of this machine:

1. Control method: Microcomputer board buttons control various functions and actions and simple operation

2. Paste head adjustment: Independent rubber head front and back, up and down stroke and speed adjustment

3. Position adjustment: The ink base and workbench can be multi-functional X, Y, R axis adjustment

4. Inking method: Optional oil basin or sealed oil cup inking, clean ink scraping

5. Workbench features: Equipped with precise shuttle or conveyor belt workbench, special shock absorbing device

6. Component guarantee: Adopt precision pneumatic components and solenoid valves

7. Configuration selection: Standard configuration and imported configuration are optional,customizable additional functions






This series of ink pad printing machine has outstanding features for stable, durable and fine workmanship, The work table can be adjusted according to the real printing demand, ink cup, pad and plate can easily changed.



Technical Parameters




Model
WP-6P160S
WP-6P200S
Stroke For Front And Rear Cylinder 160mm 200mm
Printable Colors 6 6
Workbench Shuttle Shuttle
Weight 160kg 250kg
Machine Dimensions 980 × 830 × 1450mm 1020 × 880 × 1500mm
Can Be Equipped With Safety Protective Covers
Can Be Equipped With Hot Air Drying
Can Be Equipped With Cleaning System
Steel Plate Size
100 × 150mm 100 × 200mm
Maximum Printing Area
80 × 130mm 80 × 180mm
Maximum Printing Speed
700pcs/hr
600pcs/hr
Air Pressure
5–7 Bar
Power Supply
110V/220V 60/50Hz 40W
110V/220V 60/50Hz 40W



Application




Electric pad printing machine is suitable for single-color or up to 6-color overprinting of patterns in stationery, toys, gifts, appliances, electronics, and other products.



DAILY

• Suitable for printing for plastics, metals, glass, and ceramics

Fast running speed and simple operation





COSMETIC

• Suitable for printing for consumer goods

Meet diversify product printing demand



TOYS

• Suitable for different printing for toys

• Achieve multi-color printing to create colorful, vivid logo image







Terms of Service



1. This pad printer machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
