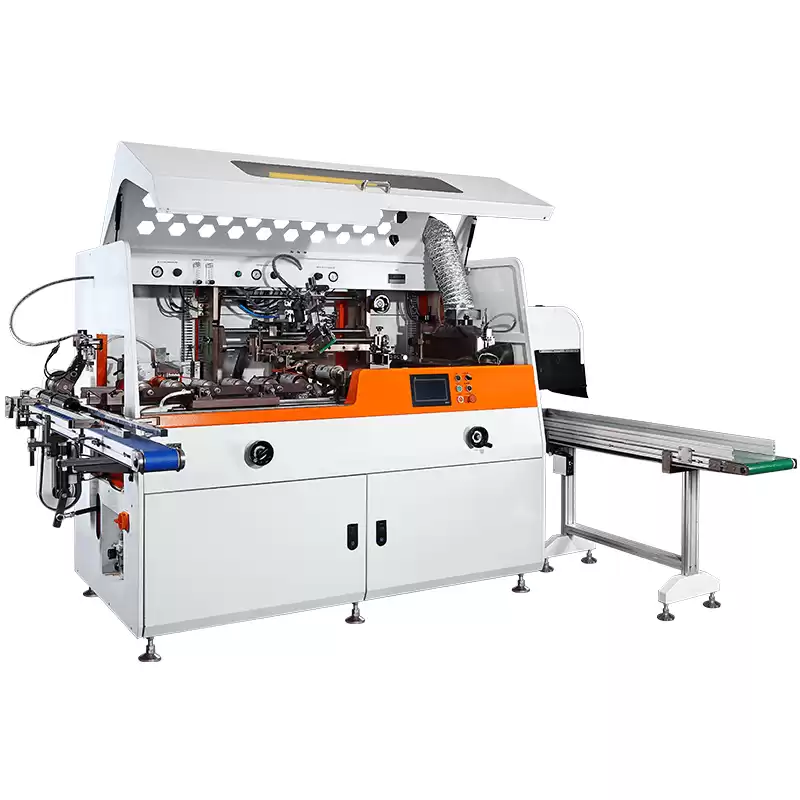

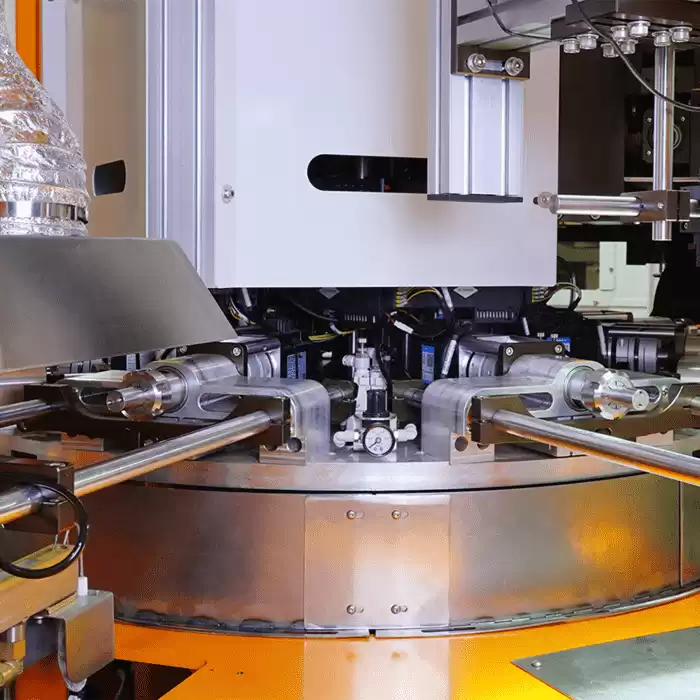

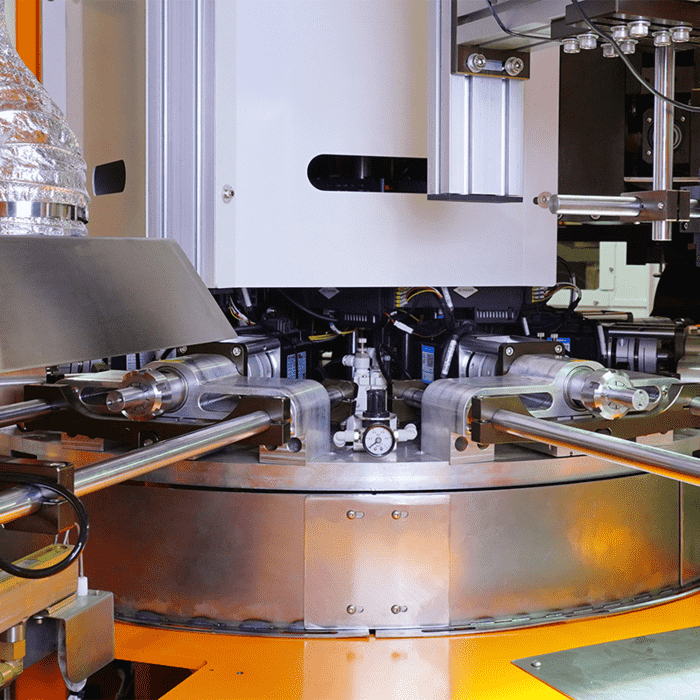

WS-AUTO/1CL Full Automatic Four Colors Screen Printing Line





Features of this machine:



Intelligent control: using intelligent human-machine interface and PLC programmable controller for accurate color registration

High efficiency: with synchronous automatic feeding, automatic lifting and printing, and ultraviolet curing functions

Excellent quality: mechanical synchronous design, imported electrical components, control system

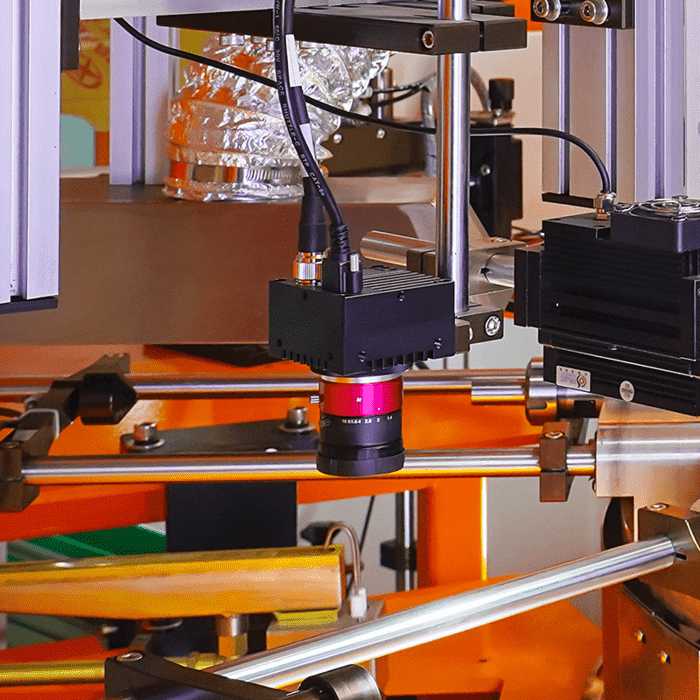

Customizable automatic combined production line: CCD visual inspection, fully automatic hot stamping and labeling etc.

Powerful functions: with round bottle pre-alignment function, can print on both sides of flat bottles at the same time.





The Full Automatic Colors Screen Printing Line offers exceptional flexibility with the ability to combine 1 to 6 colors. Engineered for high efficiency, this system integrates automatic feeding, lifting printing, and UV curing functions, significantly enhancing productivity. It features a mechanical synchronization design and imported electrical components, ensuring top-notch reliability and durability.



Technical Parameters




Printing Product Type Round Elliptical
Printing Product Width φ10~130mm R10~250mm
Printing Product Length L30~260mm L30~260mm
Max. Printing Area L260xW220mm L120xW220mm
Max. Printing Speed 4000Pcs/hr 5000Pcs/hr
Weight 1600kg/unit
Host Size 2300x1800x1700mm
Auxiliary Machine Size 2100x1800x1700mm
UV Lamp Power 5kW
Air Pressure 5~7 bar
Power Supply AC 380V 3Phase 50/60Hz 9kW





Application




Widely applicable across multiple industries, including cosmetics, beverages, food, stationery, and baby care products, the WS-AUTO/1CL Automatic Screen Printing Machine guarantees exceptional performance.



Automatic Screen Printing Machine for Round Bottles
FOODS & BEVERAGES

• Ideal for packaging for food and beverages labeling

• Enhances product visibility and branding





Screen Printing Line with PLC Programmable Controller
DAILY

• Ideal for labeling personal care products

• Enhances packaging appeal for daily-use items



Four Color Screen Printing for Flat Bottles
COSMETIC

• Suitable for cosmetic tubes and bottles labeling.

• Can print on both sides of flat bottles at the same time.







Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?

① Send the product picture you want to print, which will help us better determine the model

② Fill in the size of your product (length * width * height); if it is a bottle: diameter + height

③ Send the pattern to be printed

④ The specific size of the pattern (length * width) or range (minimum pattern size and maximum pattern size)

⑤ The printing speed you require

⑥ Are there other products that need to be printed

⑦ Printing position


2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
