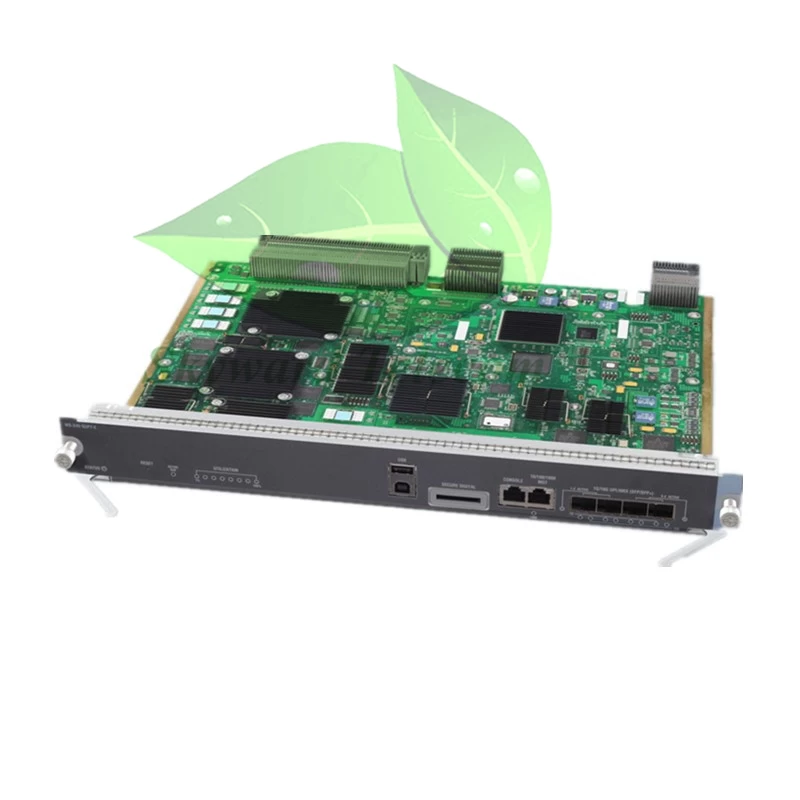

WS-X45-SUP7-E Overview
The Cisco Catalyst 4500E supervisor engine 7-E, is the leading borderless networks access and aggregation supervisor engine for the Cisco Catalyst 4500E series. Supervisor Engine7-E delivers high-performance aggregation deployments with increasing Gigabit Ethernet and 10G Ethernet fiber density along with hardware capabilities to support enterprise-level aggregation functions.
WS-X45-SUP7-E Specification
|
Brand
|
Cisco
|
|
Model No
|
WS-X45-SUP7-E
|
|
Centralized switching capacity
|
848 Gbps
|
|
Per-slot switching capacity
|
48 Gbps
|
|
Throughput
|
250 Mpps for IPv4
|
|
125 Mpps for IPv6
|
|
250 Mpps for L2 Bridging
|
|
IPv4 routing entries
|
256000
|
|
IPv6 routing entries
|
128000
|
|
Multicast routes
|
16,000 (available with Cisco IOS XE 3.1.0 SG)
32,000 (Available with Cisco IOS XE 3.2.0 SG or later)
|
|
CPU
|
Dual core; 1.5 GHz
|
|
CPU queues
|
64
|
|
Synchronous dynamic RAM (SDRAM)
|
2 GB upgradable to 4 GB
|
|
Nonvolatile RAM (NVRAM)
|
1 GB
|
|
Security and QoS hardware entries
|
128000
|
|
Cisco Network Admission Control (NAC)
andDynamic
|
12000
|
|
MAC addresses
|
55000
|
|
Active VLANs
|
4094
|
|
Address Resolution Protocol (ARP) entries
|
47000
|
|
Spanning Tree Protocol instances
|
10000
|
|
Switched virtual interfaces (SVIs)
|
4094
|
|
Switched Port Analyzer (SPAN)
|
Maximum of 8 sessions: ingress or egress
|
|
Warranty
|
1
year
|
|
Lead time
|
2-3
business days
|
