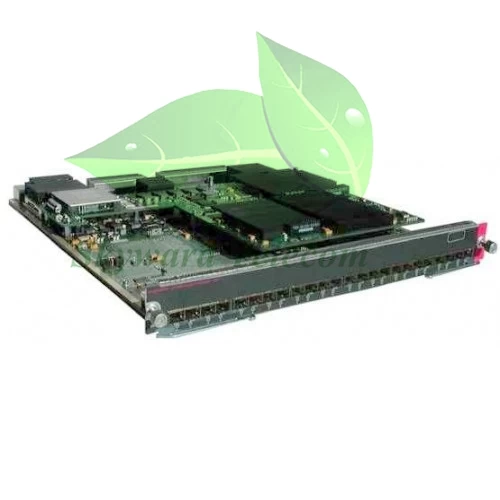

WS-X6724-SFP Overview
WS-X6724-SFP is 24-port SFP Gigabit Ethernet interface module for 6500 series. The Module are ideal for gigabit Ethernet over fiber to gigabit
uplinks, aggregation of high-density 10/100 interfaces, Metro Ethernet, backbone and server farm or data center connections. WS-X6724-SFP
interface module can equipped with WS-F6700-DFC3 daughter card to support dCEF (distributed forwarding) in hardward-base to improve the
centralized forwarding performance of system, and this interface module is only compatible with supervisor 720.
WS-X6724-SFP Specification
|
Model
info
|
WS-X6724-SFP
|
|
Product Description
|
Cisco
Catalyst 6500/7600 Series SFP Gigabit Ethernet interface module
WS-WS-X6724-SFP
|
|
Devide Tyde
|
Gigabit
Ethernet interface SFP module
|
|
Ports
|
24
* SFP Gigabit Ethernet ports
|
|
Forwarding Engine Architecture
|
Centralized
CEF engine located on supervisor’s PFCx makes forwarding decision
Upgradeable to dCEF switching with optional
WS-F6700-DFC3
|
|
Performance/ Forwarding Rate (Mpps)
|
720
Gbps using CEF; Up to 30 Mpps per system
Using dCEF upgrade: up to 48 Mpps
sustained per slot for modules equipped with
DFC3 to support distributed forwarding *
|
|
Scheduler
|
Deficit
Weighted Round Robin (DWRR)
|
|
Queues
|
Receive:
1 round robin queues, 8 threshold (2q8T when using Transmit: 1.17MB per port
|
|
Switch Fabric Connections
|
single
20 Gbps channel connection to switch fabric on Supervisor Engine 720
|
|
Jumbo frame support for bridged and routed packets
|
Up
to 9216 bytes
|
|
Maximum port density per chassis
|
228
ports/6513E
192 ports/6509E
|
|
Supervisor engines supported
|
Supervisor
Engine 720
|
|
Chassis supported
|
support
all Cisco Catalyst 6500/7600 Series chassis except 6503
|
|
Slot requirements
|
Any
slot in any Chassis except 6503
|
|
Indicators
|
Status:
green (operational), red (faulty), and orange
module booting or running diagnostics)
Link: green (port active), orange (disabled),
off (not active or not connected), blinking
orange (failed diagnostic and disabled)
|
|
Warranty
|
1
year
|
|
Lead time
|
2-3
business days
|
|
Shipment
|
DHL,
Fedex, Aramex, EMS or per request
|
