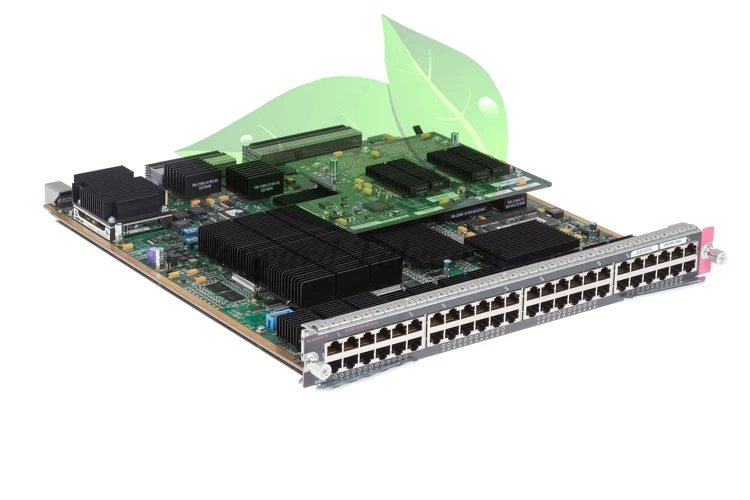

WS-X6748-GE-TX Overview
WS-X6748-GE-TX is 48-port 10/100/1000 RJ-45 interface module for Cisco Catalyst 6500 series only. The upgradeable option of distributed
forwarding daughter card makes WS-X6748-GE-TX is ideally suited to high-performance enterprise and service provider distribution, core-layers,
data-center, and web-hosting applications where voice capability is not required. WS-X6748-GE-TX enables Cisco Express Forwarding local
switching by adding WS-F6700-DFC3 daughter card to exclusively support Supervisor engine 720 to provide optimal interface module
performance or upgrades to Cisco Express Forwarding switching by integrating with WS-F6K-DFC or WS-F6K-DFC3 to support supervisor engine
1A/2/720/32 or integrates with WS-F6K-DFC4 to operate with the Supervisor Engine 2T.
WS-X6748-GE-TX Specification
|
Model
No
|
WS-X6748-GE-TX
|
|
Product Description
|
Cisco
Catalyst 6500 Series 10/100/1000 Gigabit Ethernet interface module
WS-X6748-GE-TX
|
|
Devide Tyde
|
Gigabit
Ethernet interface copper module
|
|
Ports
|
48
* 10/100/1000 Ethernet ports
|
|
POE+
|
No
option to upgrade
|
|
Performance or forwarding rate (Mpps)
|
32
Gbps; 15 Mpps persystem in class interface modules
256 Gbps using Cisco Express Forwarding; up to 30 Mpps per system in Cisco
Express Forwarding 256 interface modules
Using Distributed Cisco Express Forwarding upgrade: Up to 15 Mpps per slot
for slots equipped with distributed forwarding card (DFC) or DFC3 to support
distributed forwarding
|
|
Forwarding Engine architecure
|
Centralized
Cisco Express Forwarding engine located on supervisor policy feature card
(PFC) makes forwarding decision
Optional: Distributed forwarding card with WSF6K-DFC3 or WS-F6K-DFC
|
|
DFC upgrade option
|
Class
interface module
Not support Cisco Express Forwarding 256 Interface Modules
Use WS-F6K-DFC) with Supervisor Engine 2 and switch fabric module 2
(SFM2)
Use WS-F6K-DFC3) with Supervisor Engine 720
|
|
Chassis or slot support requirements
|
Class
interface module
Any Slot in any chassis Cisco Express Forwarding 256 Interface
Modules
Any Slot in any chassis
|
|
Queues
|
Receive:
1 round robin queues, 8 threshold
|
|
Port buffers
|
1.3
MB per port
|
|
Warranty
|
1
year
|
|
Lead time
|
2-3
business days
|
|
Shipment
|
DHL,
Fedex, Aramex, EMS or per request
|
