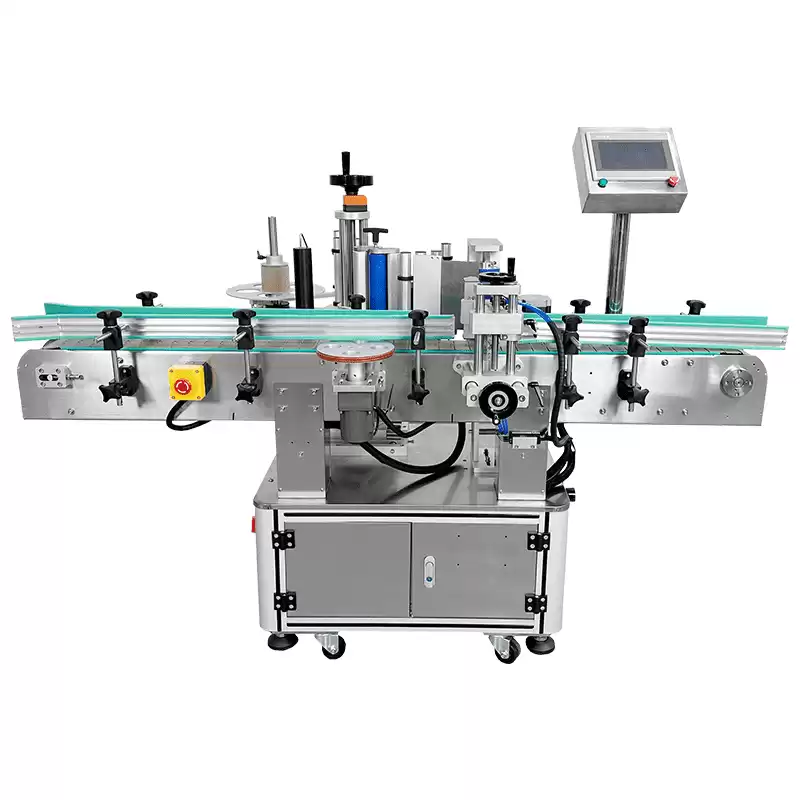

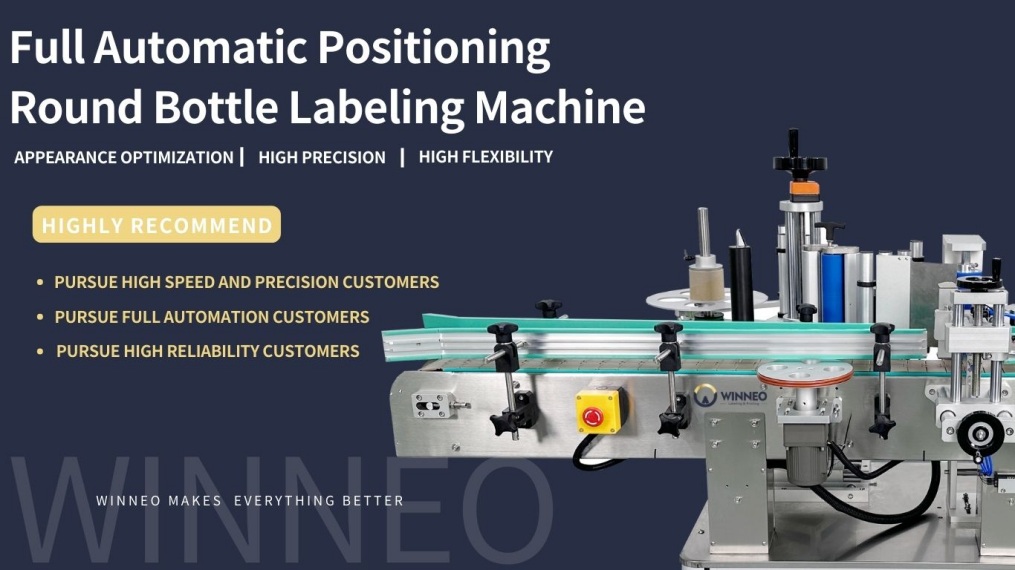

WT-203-Full Automatic Positioning Round Bottle Labeling Machine

Features of this machine:

1. Powerful functions: The same device can realize single labeling and double labeling of round bottles

2. High label overlap: eliminates the up and down fluctuations of the bottle and improves the labeling accuracy

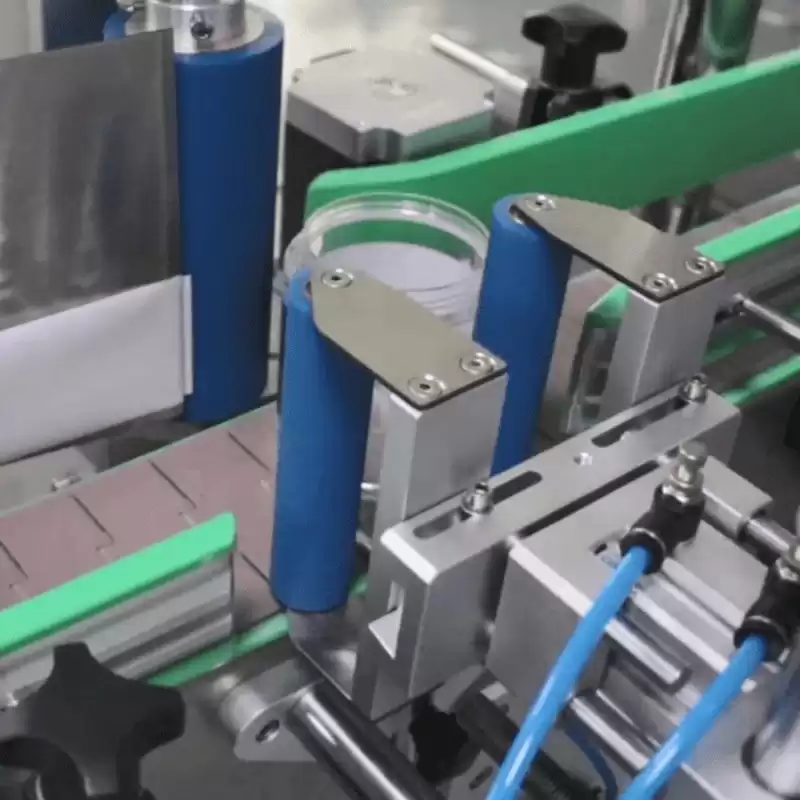

3. Automatic bottle separation: with Spring-type bottle separation mechanism, eliminate the problem of poor bottle separation

4. Touch screen control: the parameter modification is intuitive and clear, and the various functions are easy to switch

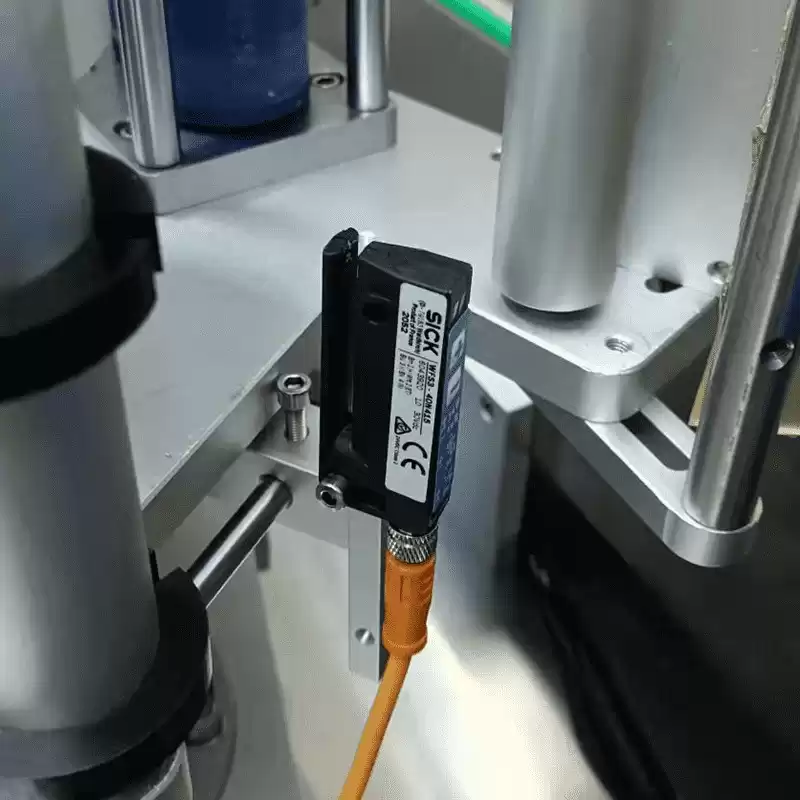

5. Intelligent control: Automatic photoelectric tracking, with the function of no object without labeling

6. Sturdy and hygienic: Mainly made of stainless steel and high-grade aluminum alloy, meets the GMP requirements

7. Optional functions

① Coding/inking function

② Automatic feeding function (bottle unscrambler)

③ Automatic material collection function (considered in combination with the product)

④ Add additional labeling device

⑤ Unlabeled bottle rejection function (customized according to customer requirements)



Double Label Positioning Labeling Machine



The Full Automatic Positioning Labeling Machine is widely used in cosmetics, food, pharmaceuticals, disinfectant and other industries.Optional circumferential positioning detection device can realize labeling at the specified position on the circumferential surface. Optional ribbon coder and inkjet printer can be used to print production date and batch number information on the label, realizing the integration of labeling and coding.



Technical Parameters




Labeling Accuracy ±1.0mm (excluding product and label errors)
Labeling Speed 25~60 pieces/minute (related to product size)
Applicable Product Diameter φ25mm~φ120mm
Applicable Label Size Length: 20mm~290mm; Width: 20mm~150mm
Overall Machine Size Approximately 1950mmx1200mmx1530mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 185Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage 220V
Air Pressure 0.4~0.6Mpa
Power Consumption 865W





Application




Printing labeling machine is suitable for round bottle labeling, can do single labeling and double labeling, the labeling position can be adjusted easily.



Automatic Three Roller Positioning Labeling Machine
DAILY

• Suitable for lotion and cleaning spray bottles

• Supports single and double labeling with adjustments





Full Automatic Positioning Labeling Machine
MEDICINE

• Suitable for vitamin and antiseptic bottles

• Ensures precise labeling with high positioning accuracy



Full Automatic Positioning Labeling Machine
FOOD&BEVERAGES

• Suitable for juice and dressing bottles

• Provides secure adhesion and perfect label alignment



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
