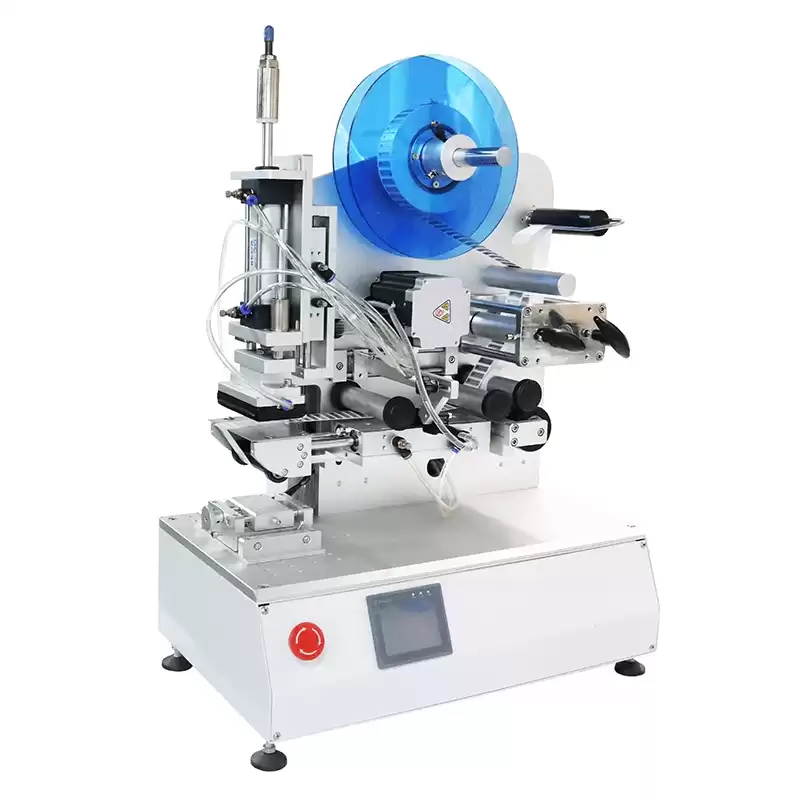

WT-301-Semi-automatic High-precision Flat Labeling Machine

Features of this machine:

1. High precision: with a labeling accuracy of ±0.2mm, meeting the needs of high-precision labeling

2. Easy to operate: Manual labeling can be completed by loading and unloading materials

3. Safe to use: the transmission parts are wrapped, and the circuit and the air circuit are arranged separately

4. High stability: the electronic control system composed of PLC + subdivided stepper motor + optical fiber sensor is adopted

5. Optional functions and components:
    ① Automatic feeding function
    ② Automatic material collection function (considered in combination with the product)
    ③ Other functions (customized according to customer requirements).



Semi-automatic High-precision Labeling Machine

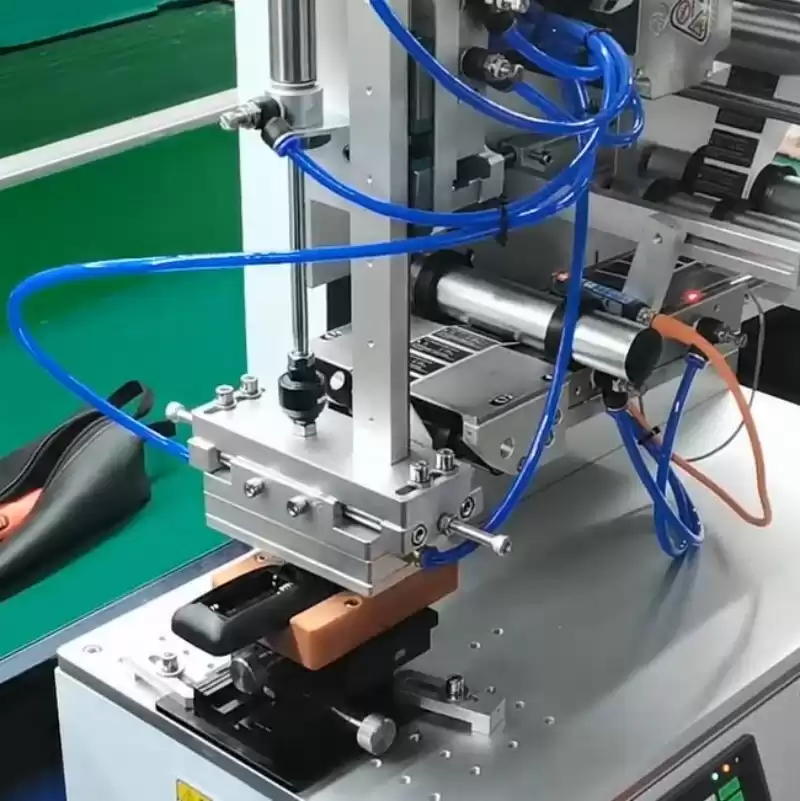

The Semi-Auto Flat Labeling Machine suitable for labeling on the upper flat surface, curved surface and concave surface of the product, with a labeling accuracy of up to ±0.2mm. It is mainly used for precision labeling of electronic components and digital products, such as SD cards, mobile phone batteries, FPC, mobile phone chargers, etc. High-precision labeling highlights the excellent quality of products and improves competitiveness.



Technical Parameters




Labeling Accuracy ±0.2mm (excluding product and label errors)
Labeling Speed 15~30 pieces/minute (related to product size)
Applicable Product Size Length: 20mm~200mm; Width: 20mm~180mm; Thickness: 0.2mm~75mm
Applicable Label Size Length: 10mm~70mm; Width: 5mm~70mm
Overall Machine Size Approximately 650mmx530mmx830mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight Approximately 41Kg
Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ240mm
Voltage 220V
Air Pressure 0.4~0.6Mpa
Power Consumption 330W





Application




Semi-Auto High Precision Flat Surface Label Applicator is suitable for flat containers including rectangular or tapered bottles, boxes, packages, bags, pouches, lids, tins, and much more. Labels are applied straight without wrinkles or folds in exactly the location desired.



Semi-Auto Flat Labeling Machine
FOOD&BEVERAGES

• Suitable for labeling food and beverage packaging

• Enhances product accuracy of information





Semi-automatic High-precision Labeling Machine
DAILY

• Suitable for labeling daily-use products

• Creates a clean, professional look for everyday items



Semi-Auto Flat Labeling Machine
MEDICINE

• Suitable for labeling blood bags, medical bottles, vials

• Ensures clear and accurate labeling for safety and use



Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
