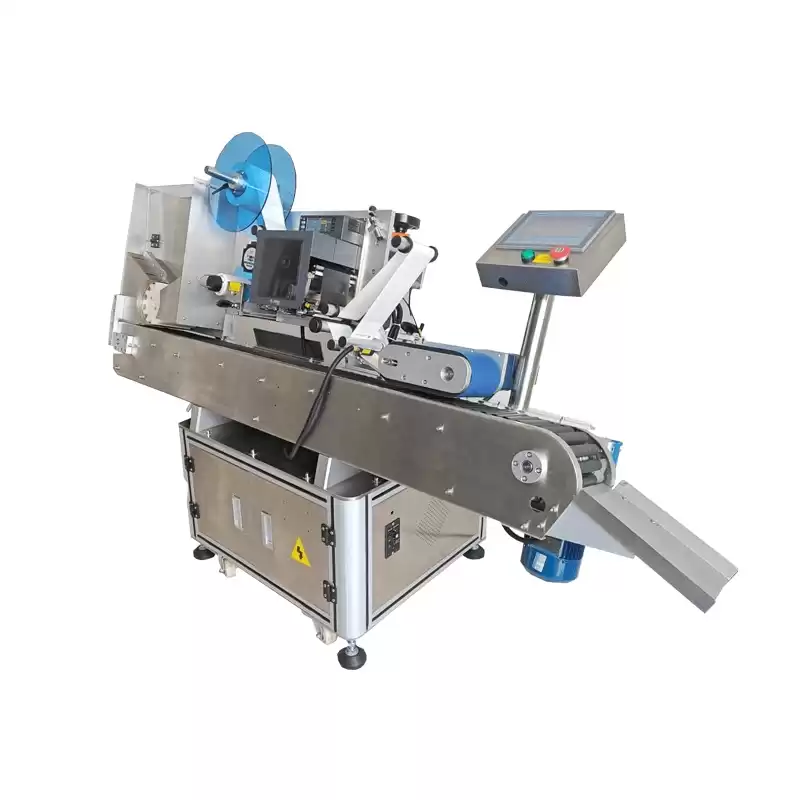

WT-405-Full Automatic Horizontal Labeler with Printer

Features of this machine:

1.Designed for small round bottles: Suitable for 10-30mm diameter round bottles, curved surface fit without warping.

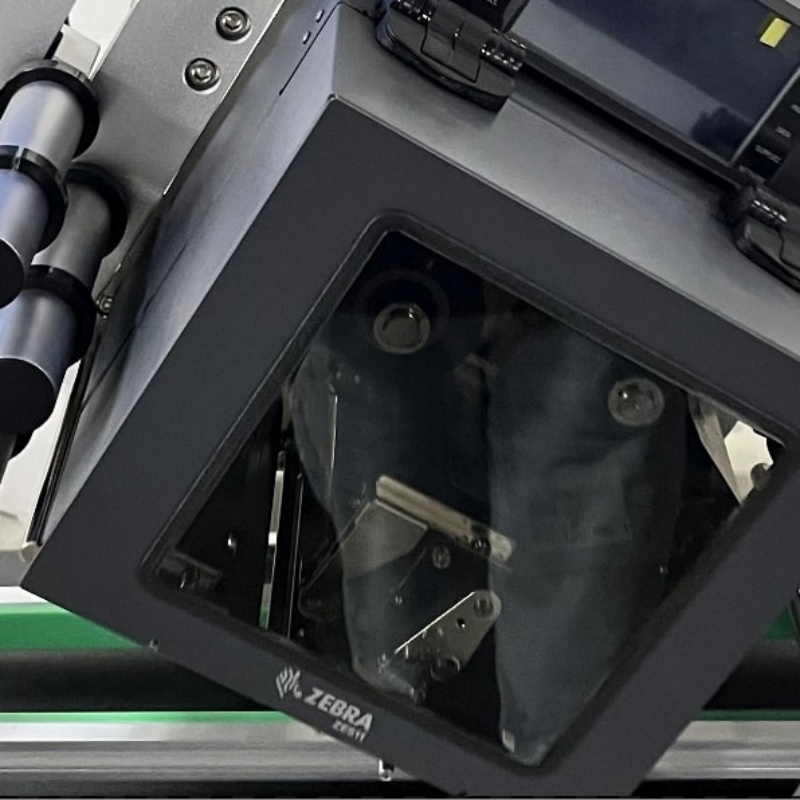

2.High-precision printing:  using Zebra printer, supports real-time printing of medical/cosmetic vial data.

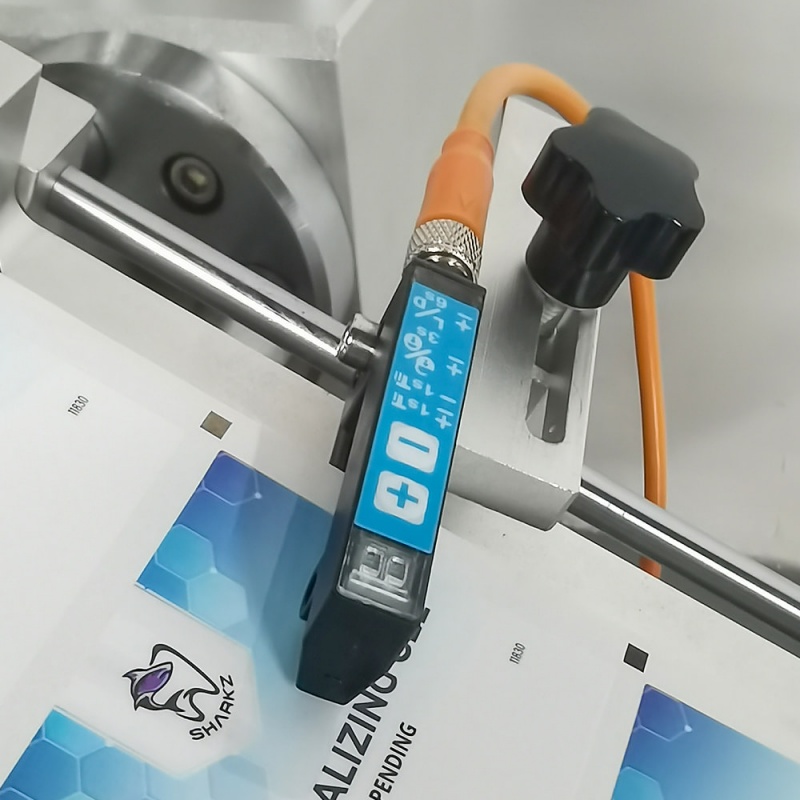

3.Arc adaptive tracking: Photoelectric + encoder double closed-loop control, head and tail error ≤1.0mm.







The fully automatic horizontal labeling machine features horizontal conveying and labeling technology to ensure stable operation and high efficiency. Ideal for small cylindrical objects, it can be equipped with an integrated thermal transfer or inkjet printer to directly print production dates, batch numbers, and barcodes on labels during application.



Technical Parameters




Labeling Accuracy ±1.0mm (excluding product and label errors)
Labeling Speed 25~60 pieces/minute (related to product size)
Applicable Product Diameter φ25mm~φ120mm
Applicable Label Size Length: 20mm~290mm; Width: 20mm~150mm
Overall Machine Size Approximately 1950mmx1200mmx1530mm (LxWxH)
Applicable Power Supply 220V/50HZ
Overall Machine Weight

Approximately 200kg

Applicable Label Inner Diameter φ76mm
Applicable Label Outer Diameter φ280mm
Voltage (V) 220V
Air Pressure 0.4~0.6Mpa
Power 865W
Printer Brand TSC, Zebra
Printer Resolution 300DPI or 600DPI
Printer Width 100mm or 135mm or customized





Application

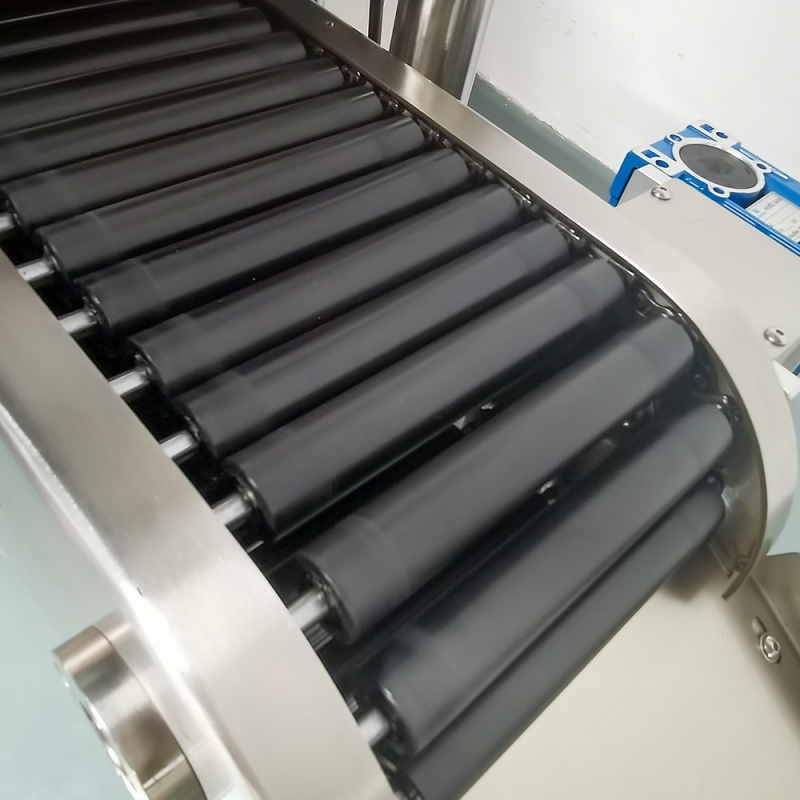

Automatic Horizontal Wrap Labeler is specifically designed for labeling slim, non-freestanding cylindrical containers such as sausage packages, blood collection tubes, lipsticks, ampules, pens, etc. Its horizontal wrap labeling system accommodates both full and partial wrap labels, while the angled roller conveyor ensures precise product orientation and stable labeling.



MEDICINE

• Suitable for labeling blood collection tubes

• Complies with medical traceability standards





Food & BEVERAGES

• Suitable for labeling sausage packaging

• Delivers precise vacuum-sealed product labeling





Terms of Service



1. This machine has a one-year warranty from the date of purchase. If it is used normally and maintained according to the instructions, the faulty parts will be repaired or replaced free of charge
2. WINNEO's professional engineering team will provide you with free technical consultation and other services
3. The response time of customer service is within 24 hours
4. After the warranty period expires, software and hardware support and services are still provided, and lifelong maintenance of the equipment is provided



FAQ




1. How to quickly purchase the right machine from us?
① Sending pictures of the products you want to label will help us better help you determine the model
② Fill in your product size (L * W * H); If it is a bottle: diameter + height
③ Send the picture of the label to be pasted
④ Label size (L * W)
⑤ The labeling speed you require
⑥ Are there other products that need to be labeled
⑦ Labeling position: half circle/full circle/front + back, etc.

2. How to ensure packaging and logistics safety?
① Our products are packaged in sturdy wooden boxes and fixed in all directions and safely.
② According to customer needs, we often use international logistics such as DHL, FedEx, UPS, as well as professional multinational freight forwarders and various Haipai channels to ensure the safety of goods

3. Delivery time and logistics time of goods
① The delivery time of standard machines is usually 3-5 days; The delivery time of non-standard machines is usually 7-15 days; The delivery time of customized machines needs to be determined after discussion
② The logistics time of goods depends on the logistics method you choose, please communicate with us in detail

4. How can I get more information?
You can contact us for more detailed information and we will give you the most satisfactory answer.
