MATERIAL NUMBER:
X20IF10E3-1
DESCRIPTION:
- PROFINET IO device
- Integrated switch for efficient cabling
The interface module is equipped with a PROFINET IO device interface. This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.
The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.

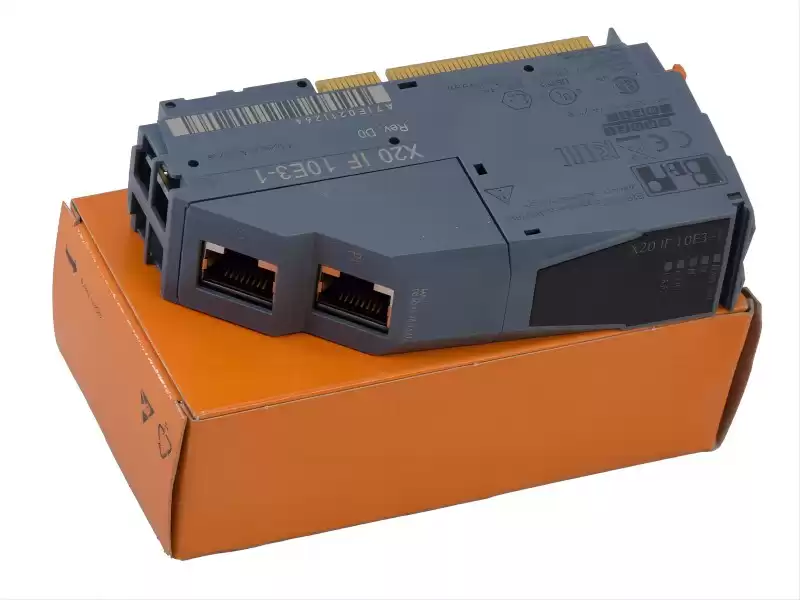

The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.
Short description
| Communication module |
PROFINET IO device (slave) |
General information
| B&R ID code |
0xA71E |
| Status indicators |
Module status, network status, data transfer |
| Diagnostics |
|
| Module status |
Yes, using LED status indicator and software |
| Network status |
Yes, using LED status indicator and software |
| Data transfer |
Yes, using LED status indicator |
| Power consumption |
2 W |
| Additional power dissipation caused by actuators (resistive) [W] |
- |
| Certifications |
|
| CE |
Yes |
| UKCA |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| HazLoc |
cCSAus 244665
Process control equipment
for hazardous locations
Class I, Division 2, Groups ABCD, T5 |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
| EAC |
Yes |
| KC |
Yes |
Interfaces
| Fieldbus |
PROFINET IO device (slave) |
| PROFINET attributes |
|
| Conformance class |
C |
| Performance class |
RT (switch supports IRT) |
| Netload class |
III |
| Variant |
2x shielded RJ45 (switch) |
| Line length |
Max. 100 m between 2 stations (segment length) |
| Transfer rate |
100 Mbit/s |
| Transfer |
|
| Physical layer |
100BASE-TX |
| Half-duplex |
Yes |
| Full-duplex |
Yes |
| Autonegotiation |
Yes |
| Auto-MDI/MDIX |
Yes |
| Controller |
netX100 |
Electrical properties
| Electrical isolation |
PLC isolated from PROFINET IO (IF1 and IF2) |
Operating conditions
| Mounting orientation |
|
| Horizontal |
Yes |
| Vertical |
Yes |
| Installation elevation above sea level |
|
| 0 to 2000 m |
No limitation |
| >2000 m |
Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 |
IP20 |
Ambient conditions
| Temperature |
|
| Operation |
|
| Horizontal mounting orientation |
-25 to 60°C |
| Vertical mounting orientation |
-25 to 50°C |
| Derating |
- |
| Storage |
-40 to 85°C |
| Transport |
-40 to 85°C |
| Relative humidity |
|
| Operation |
5 to 95%, non-condensing |
| Storage |
5 to 95%, non-condensing |
| Transport |
5 to 95%, non-condensing |
Mechanical properties
| Slot |
In the X20 CPU and expandable bus controller X20BC1083 |
