MATERIAL NUMBER:

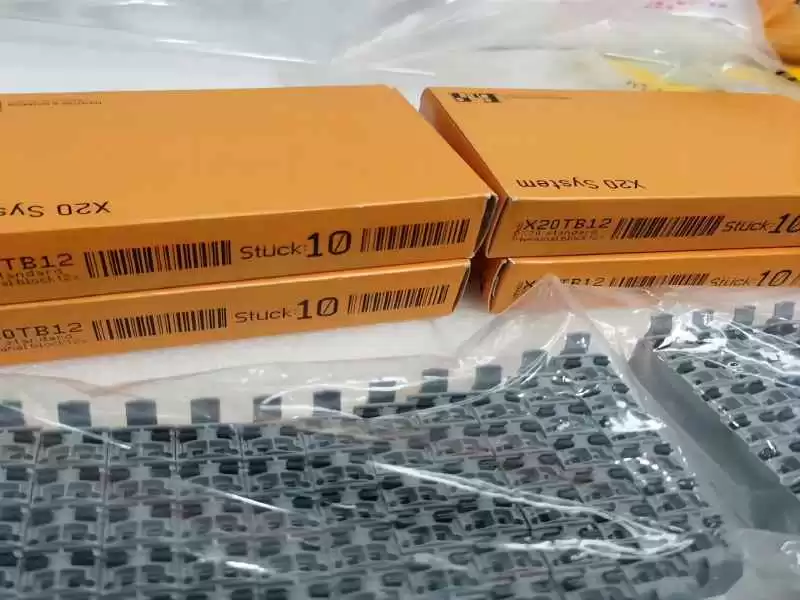

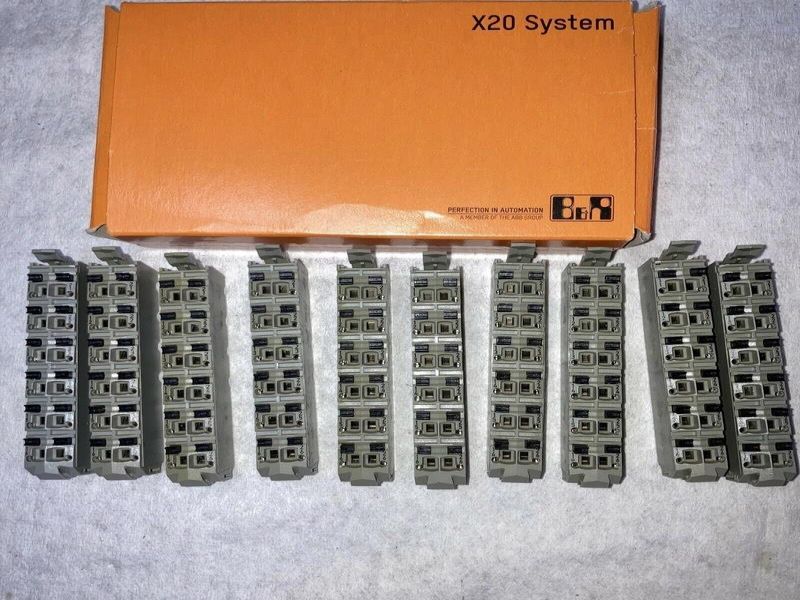

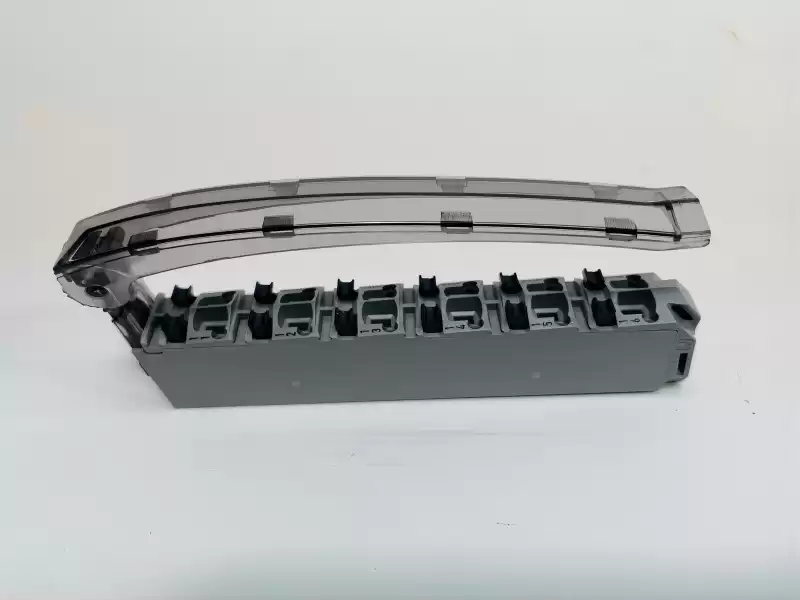

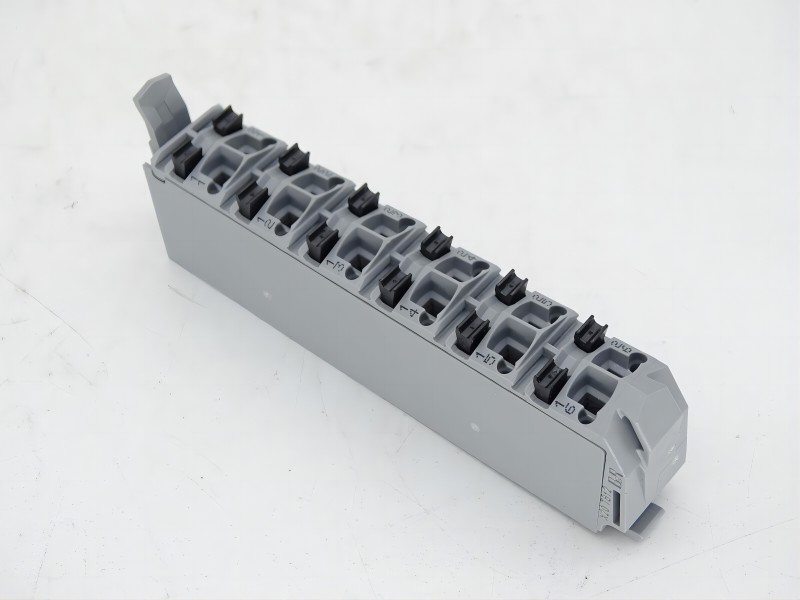

X20TB12
DESCRIPTION:
- Tool-free wiring with push-in technology
- Simple wire release using lever
- Ability to label each terminal
- Plain text labeling also possible
- Test access for standard probes
- Can be customer-coded
The X20 24 VDC modules are wired using the X20TB06 and X20TB12 terminal blocks.
General information
| Certifications |
|
| CE |
Yes |
| ATEX |
Zone 2, II 3G Ex nA nC IIA T5 Gc
IP20, Ta (see X20 user's manual)
FTZÚ 09 ATEX 0083X |
| UL |
cULus E115267
Industrial control equipment |
| DNV |
Temperature: B(0 - 55°C)
Humidity: B(up to 100%)
Vibration: B(4 g)
EMC: B(bridge and open deck) |
| LR |
ENV1 |
| KR |
Yes |
| ABS |
Yes |
Terminal block
| Number of pins |
12 |
| Type of terminal block |
Push-in terminal |
| Push-in force per contact |
Typ. 10 N |
| Cable type |
Only copper wires (no aluminum wires!) |
| Wire stripping length |
7 to 9 mm |
| Connection cross section |
|
| Solid wires |
0.08 to 2.50 mm² / 28 to 14 AWG |
| Fine-stranded wires |
0.25 to 2.50 mm² / 24 to 14 AWG |
| With wire end sleeves |
0.25 to 1.50 mm² / 24 to 16 AWG |
| With double wire end sleeves |
Up to 2x 0.75 mm² |
| Distance between contacts |
|
| Left - Right |
4.2 mm |
| Above - Below |
10.96 mm |
Electrical properties
| Nominal voltage |
240 VAC / 48 VDC |
| Max. voltage |
300 VAC / 60 VDC |
| Nominal current |
10 A / contact |
| Contact resistance |
≤5 mΩ |
Ambient conditions
| Temperature |
|
| Operation |
Corresponds to the X20 module used |
| Relative humidity |
|
| Operation |
Corresponds to the X20 module used |
