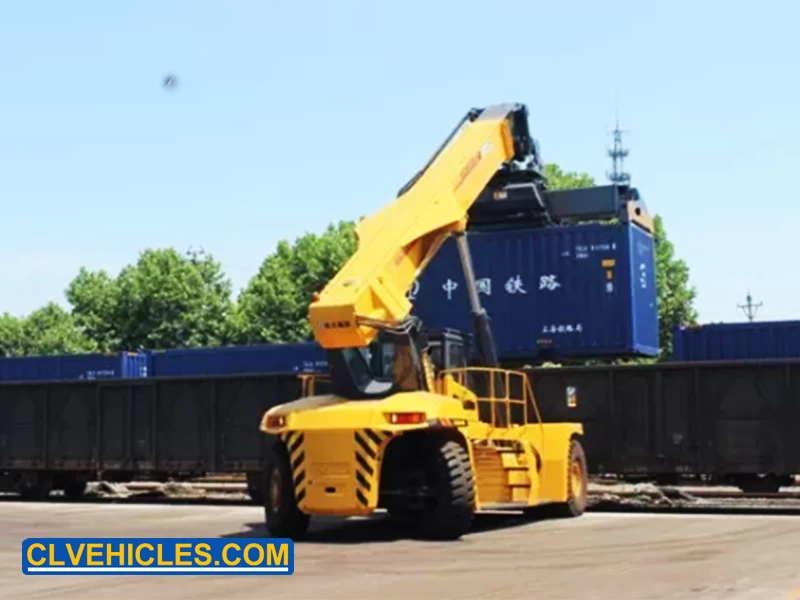

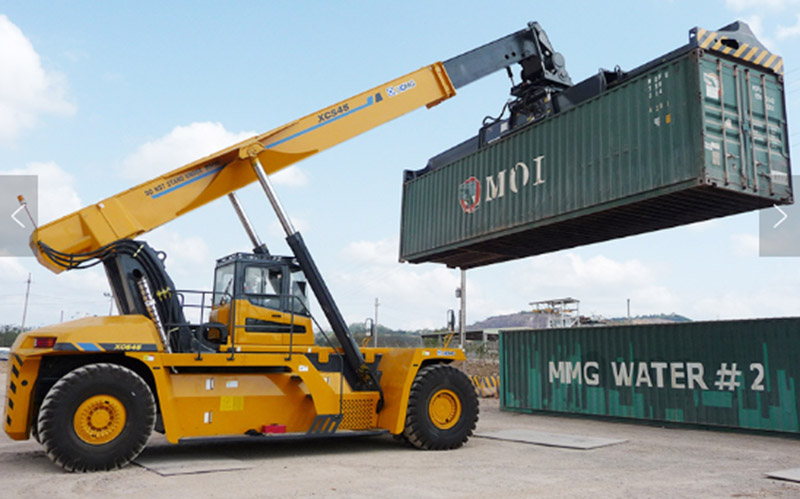

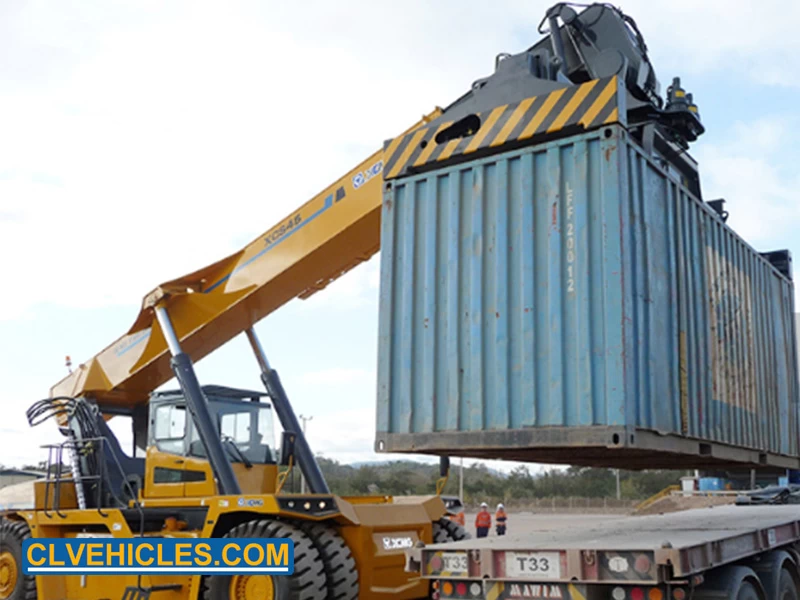

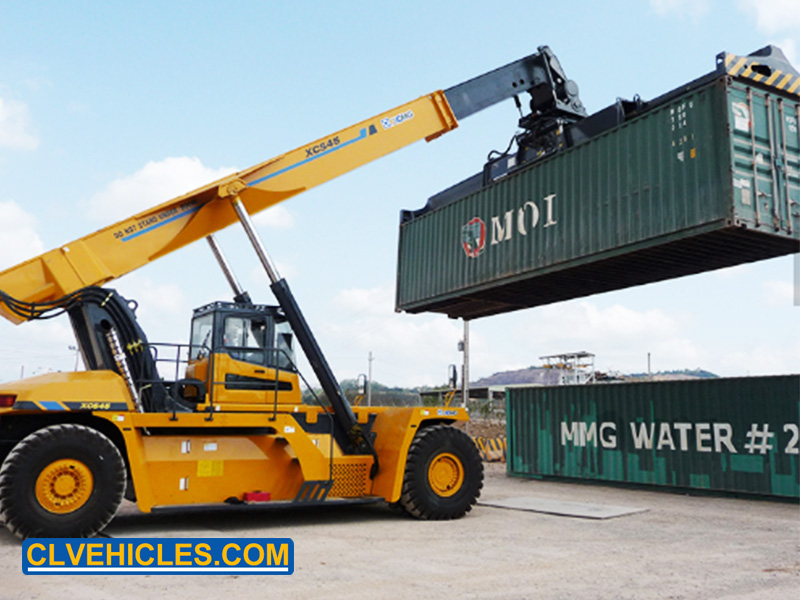

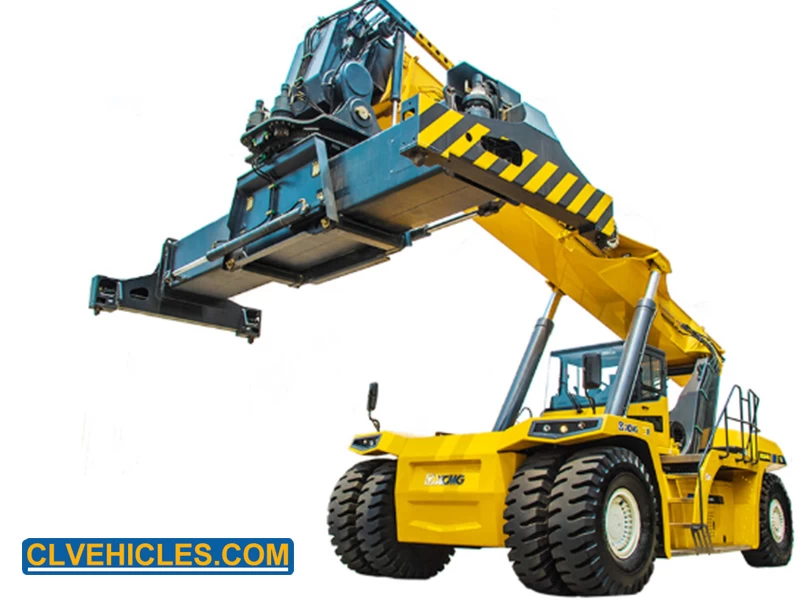

45Ton XCMG XCS45 Port Reach Stackers
XCS45 Port Reach Stackers is Electric proportional control system adopted, offers good inching control. Main control valve is a large flow load sensitive electric proportional control change valve. The speed of actuator has no relationship with the weight of load, and flow distribution function is available, which can realize combined movements. Constant-power variable pump is used as main pump. Pump pressure and flow are automatically regulated via load feedback, which greatly improves control performance and energy saving effect.
Quick Details
|
Rated lifting capacity
|
45000KG
|
|
Max. lifting height
|
151000mm
|
|
Max. lifting speed
|
452mm/s
|
|
Max. travel speed
|
27km/h
|
|
Engine rated power
|
265/2100kW /(r/min)
|
Applications
45 t container reach stacker with best working efficiency and complete safety measures. Unique low speed large torque optimal transmission chain, innovative oil cylinder differential control technology and vertically lifting spreader technology contribute to highest working efficiency in the industry;the technologies specialized for container reach stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading and driving safety active protection, lead to better active safety; three energy-saving measures, such as flow self-adaptive load sensitive hydraulic system, efficient power transmission system and transmission ECO control, lead to more fuel-efficient.
Competitive Advantages
(1) Efficient operation
Unique low speed large torque optimal transmission chain, max. travel speed of 27 km/h and high power performance contribute to quick job site transfer.
Innovative oil cylinder differential control technology and vertically lifting spreader technology contribute to rapid working speed, leading to 15% improvement in efficiency while lifting and stacking containers.
(2) Safe and free from worry
With accumulation of experience for 75 years in crane safety control and the technologies developed for container reach stackers, such as overturning prevention, spreader-swing preventing, testing of spreader unbalance loading, driving safety active protection, detection of driver in place, the active safety of the machine during driving and lifting operation are improved to the greatest extent.
(3) Energy-saving and economical
Three energy-saving measures, such as flow self-adaptive load sensitive hydraulic system, efficient power transmission system and transmission ECO control, lead to high transmission efficiency, less energy loss, reduced fuel consumption by 10% ~ 15%.
(4) Comfortable driving
Fourteen humanization-oriented designs, such as movable panorama driver's cab,man-machine interactive system for providing abundant information and perfect lighting system, etc. offer more comfortable driving and operating environment.
