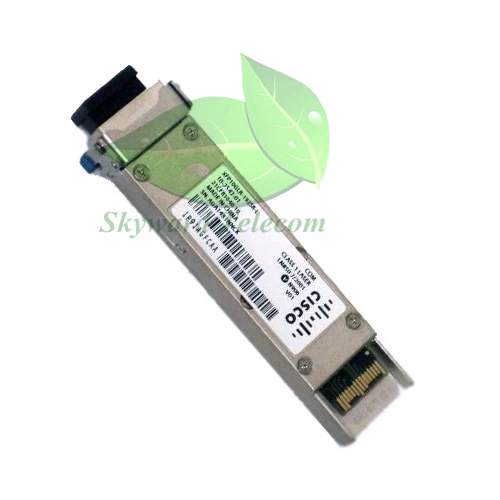

XFP10GLR-192SR-L Overview
The Cisco XFP module offers customers 10 Gigabit Ethernet and Packet-over-SONET/SDH (POS) connectivity options for data center, enterprise wiring closet, and service provider transport applications.
XFP10GLR-192SR-L Specification
|
General
|
|
|
Device Type
|
XFP transceiver
module
|
|
Form Factor
|
Plug-in module
|
|
Networking
|
|
|
Connectivity
Technology
|
Wired
|
|
Cabling Type
|
10GBase-LR,
10GBase-LW
|
|
Data Link
Protocol
|
SONET/SDH, 10 GigE
|
|
Data Transfer
Rate
|
10 Gbps
|
|
Optical Wave
Length
|
1310 nm
|
|
Line Rate
|
OC-192/STM-64
|
|
Max Transfer
Distance
|
6.2 miles
|
|
Features
|
PoS (Packet over
SONET)
|
|
Compliant
Standards
|
IEEE 802.3ae
|
|
Expansion /
Connectivity
|
|
|
Interfaces
|
1 x Ethernet
10GBase-LR/10GBase-LW - LC single-mode x 2
|
|
Compatible
Slots
|
1 x XFP
|
|
Miscellaneous
|
|
|
Compliant
Standards
|
Laser Class 1, IEC
60825-1
|
|
Power
|
|
|
Power
Consumption Operational
|
1.5 Watt
|
|
Dimensions
& Weight
|
|
|
Width
|
0.7 in
|
|
Depth
|
2.8 in
|
|
Height
|
0.3 in
|
|
Weight
|
10.58 oz
|
|
Manufacturer
Warranty
|
|
|
Service &
Support
|
Limited warranty - 90
days
|
|
Environmental
Parameters
|
|
|
Min Operating
Temperature
|
32 °F
|
|
Max Operating
Temperature
|
158 °F
|
|
Compatibility
Information
|
|
|
Designed For
|
Cisco
1-Port 10GE XFP Interface Module, CRS-1 Series 4-Port 10GE LAN/WAN-PHY
Interface Module, CRS-1 Series 8-port 10GbE LAN/WAN-PHY Interface Module,
CRS-3 14-Port 10GE LAN/WAN-PHY Interface Module, CRS-3 20-port 10GbE
LAN/WAN-PHY Interface Module ¦ Cisco Ethernet Services Plus Extended
Transport 20G Line Card, 40G Line Card ¦ Cisco Ethernet Services Plus
Transport Extended Combination 20G Line Card for Carrier Ethernet, Extended
Combination 20G Line Card with DFC3CXL for Carrier Ethernet, Extended Combination
40G Line Card for Carrier Ethernet, Line Card (LAN/WAN PHY, OTN/G.709)
|
|
Warranty
|
1 year
|
|
Lead time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex,
EMS or per request
|
