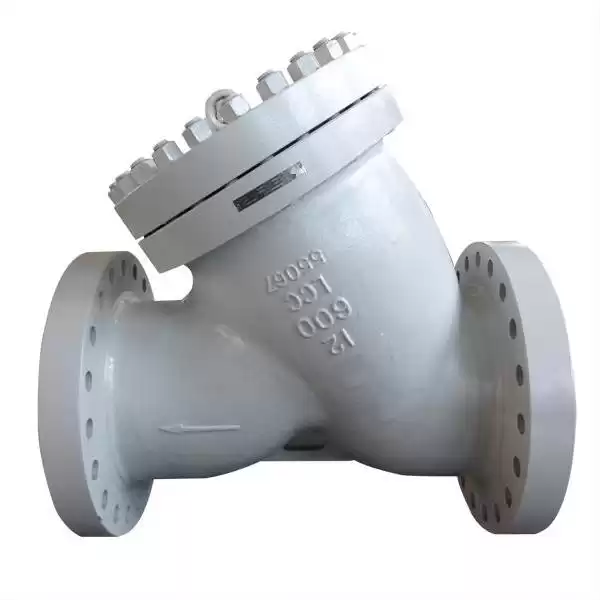

Y Strainer 12Inch 600LB WCB

ASME B16.34 Y Strainer, Manufacture STAVAL Factory Offers.


  • Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
  • Pressure Range150LB ~ 2500LB (PN16 ~PN420)
  • Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze, Cast Iron
  • ConstructionBW, Flange
  • Bore
  • End Connection
  • Seat
  • Feature
  • Working Temp.-196°C to +600°C

Key Specification
Type

Y Strainer

Size

12Inch

Pressure

600LB

Construction

 Bolt Cover, With Drain Valve

Connection

RF End

Body Material

A216 WCB

Cover Material

A105

Screen Material

SS304

Bolt/Nut

B7/2H+Zn

Design Standard

ASME B16.34

Face to Face Dimension

ASME B16.10

End Connection

ASME B16.5

Inspection & Test Std.

API598

Temperature Range

-29℃~+400

Medium

Oil, Water, Gas
