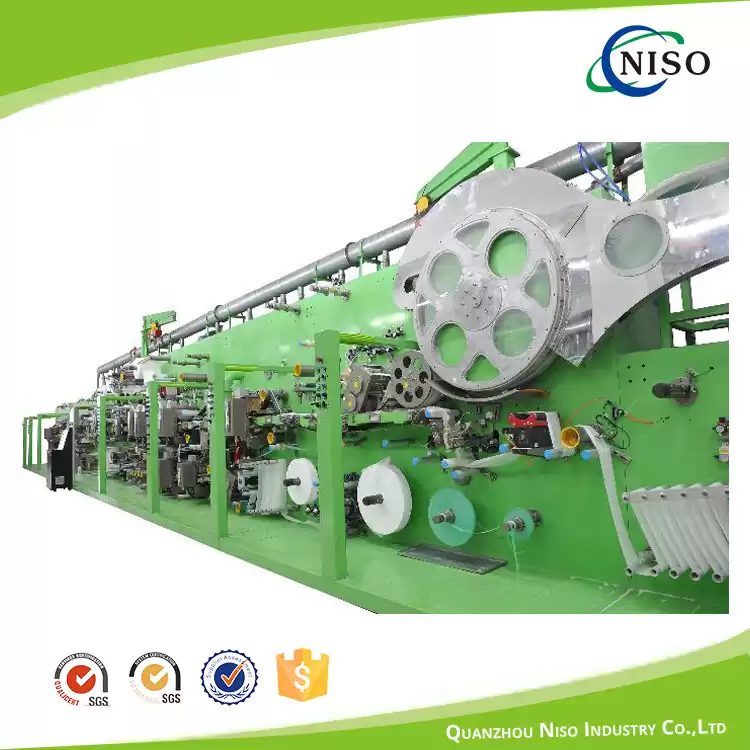

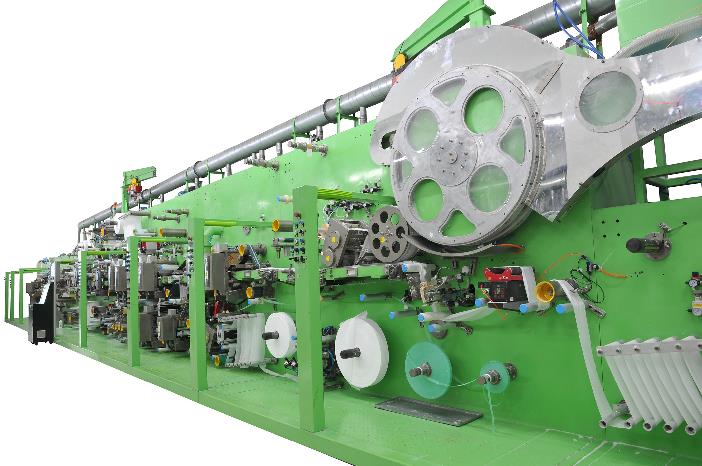

YC-HY600-FC Frequency Type Sanitary Napkin Machine

YC-HY600-FC is a full auto specialized in manufacturing sanitary napkin machine.It can do 2 sizes.



YC-HY600-FC Frequency Type Sanitary Napkin Machine

YC-HY600-FC Frequency Type Sanitary Napkin Machine







Machine parameter


Model YC-HY600-FC
Name Frequency  type
Automaticly Full auto
Product size 2 sizes
classic thick & ultra thin
wing & straight
Design speed 800pcs/min
Production speed 500-600pcs/min
Power 200 KW
Power source 380V, 50HZ, 3 phase 6 wire
Efficiency 88%
Rejection rate ≦ 2%
Machine weight 60 Ton
Machine size 28m * 3m * 3m
Operating size 33m * 7m * 5m
Air pressure 0.6-0.8MPA
Machine color Customlized
Machine direction  Customlized



Machine description


Machine total system
1.Pulp crusher system
2.SAP feeding system
3.Drum forming system
4.Lower tissue paper feeding system
5.Upper tissue paper feeding system
6.Web roller compacting system
7.Top sheet non woven feeding system
8.PE film feeding system
9.Rotary die system
10.Pull assembly before longitudinal fold
11.Longitudinal fold unit
12.Pull assembly after longitudinal fold
13.Rejection output

14.Out put system



About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.
NISO covers an area of 5000 square meters, gets CE, ISO, SGS.
NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.
NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.



Factory processing map



Packing and packaging diagram


Our customers

After-sales service
