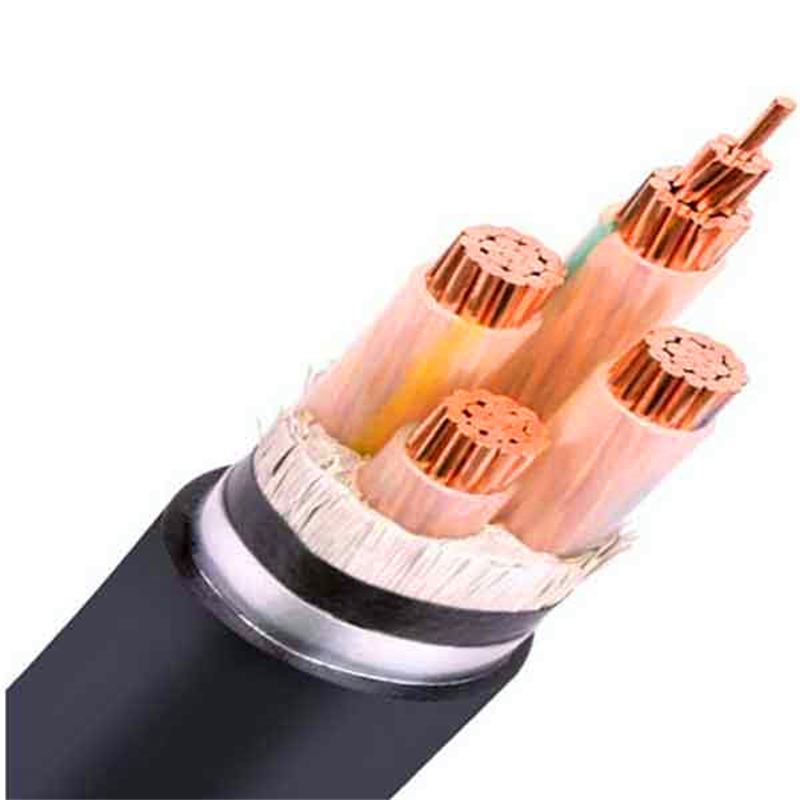

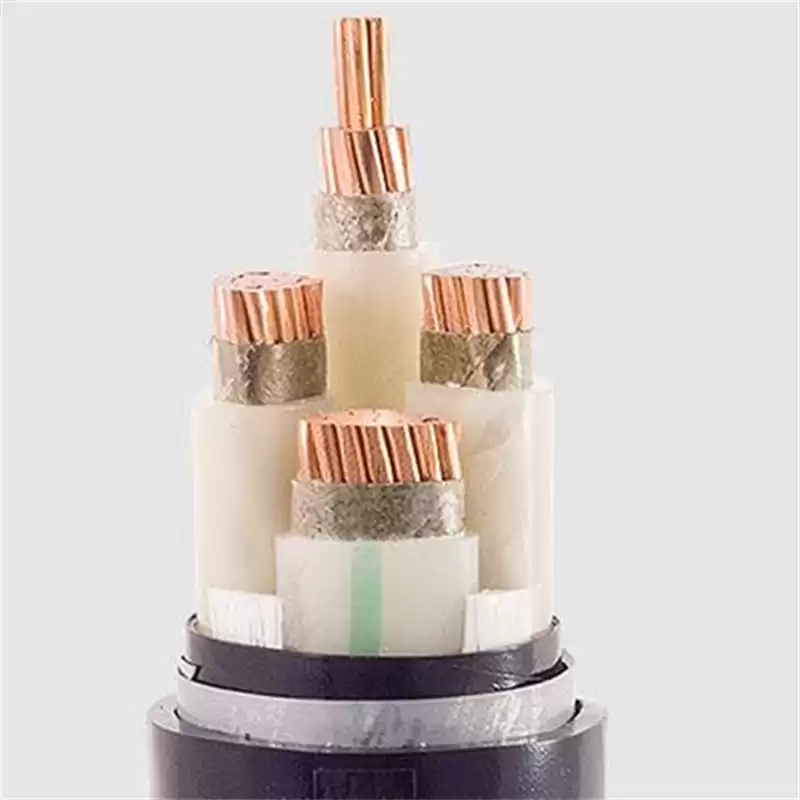

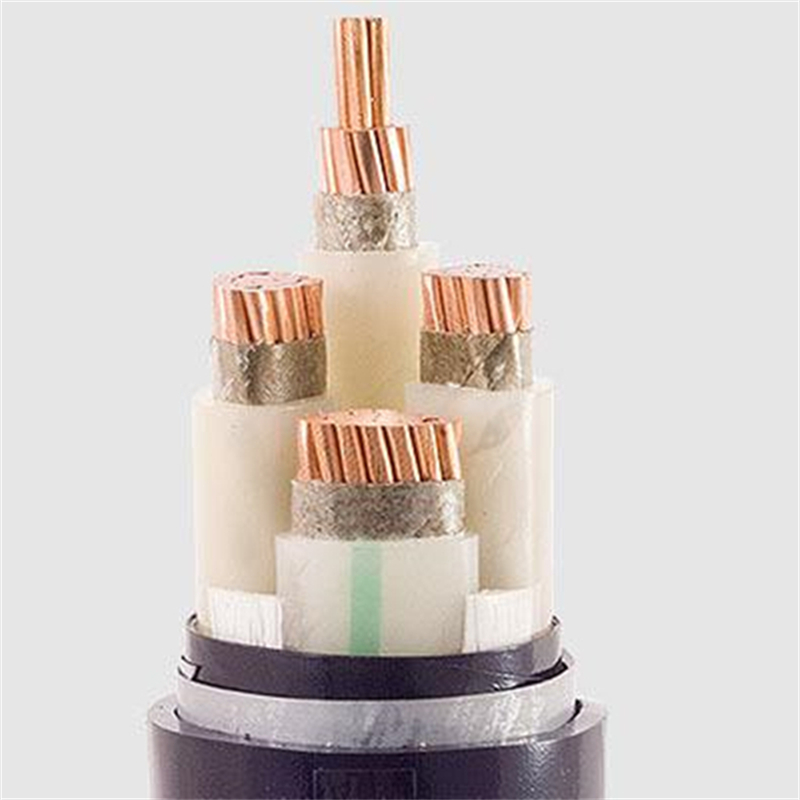

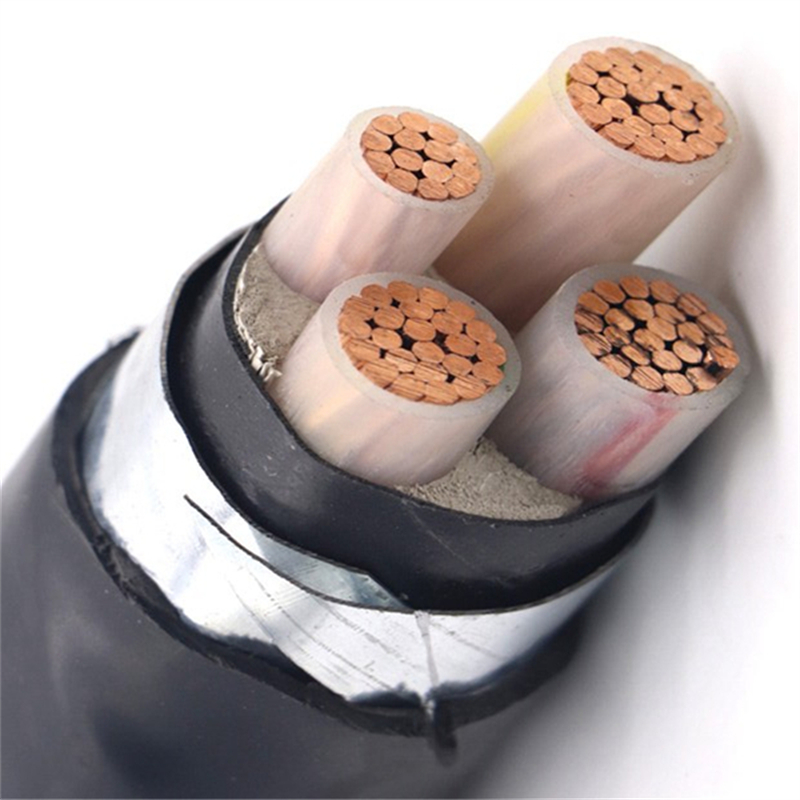

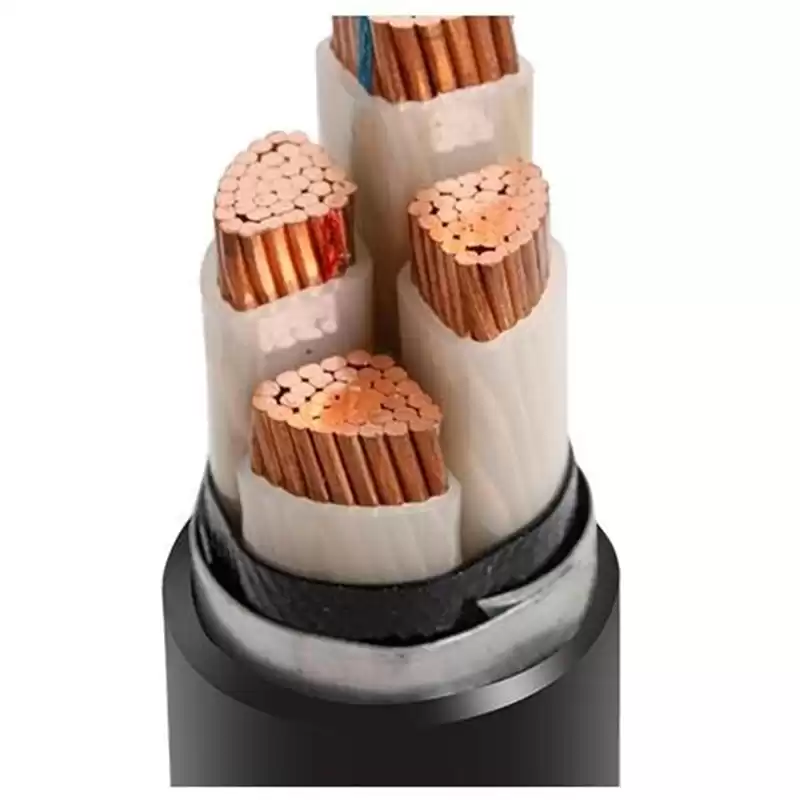

YJV22 Copper Wire XLPE Insulated STA Armoured ​PVC Sheath Power Cables

YJV22 Copper Wire XLPE Insulated STA  Armoured PVC Sheath Power Cables. The structurer is CU/XLPE/PVC/STA/PVC, includes the Copper Wire Condutor, XLPE Insulation, PVC Inner Sheath, Steel Tape Armoured, PVC Out Sheath. STA armoured cable is a steel tape armored cable. It is a kind of armored cable. It is usually used for transmission lines below 35KV. The steel tape armored cable has a metal armor layer in the cable sheath, which is mainly used to prevent the cable is damaged by external squeezing.



YJV22 Copper Wire XLPE Insulated STA  Armoured PVC Sheath Power Cables


PRODUCTS NAME

YJV22 Copper Wire PVC Insulated STA Armoured PVC Sheath Power Cables.

PRODUCTS KEYWORDS

YJV22, N2XBY, STA Armoured, cu/xlpe/pvc/sta/pvc, steel tape armoured power cable, copper wire power cable, xlpe insulated cable, electric cable, wire and cables.

PRODUCTS APPLICATION

YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables, power and control cable for fixed installation. Can be used indoors, outdoors, underground, in concrete and in water.

Seebest Cable

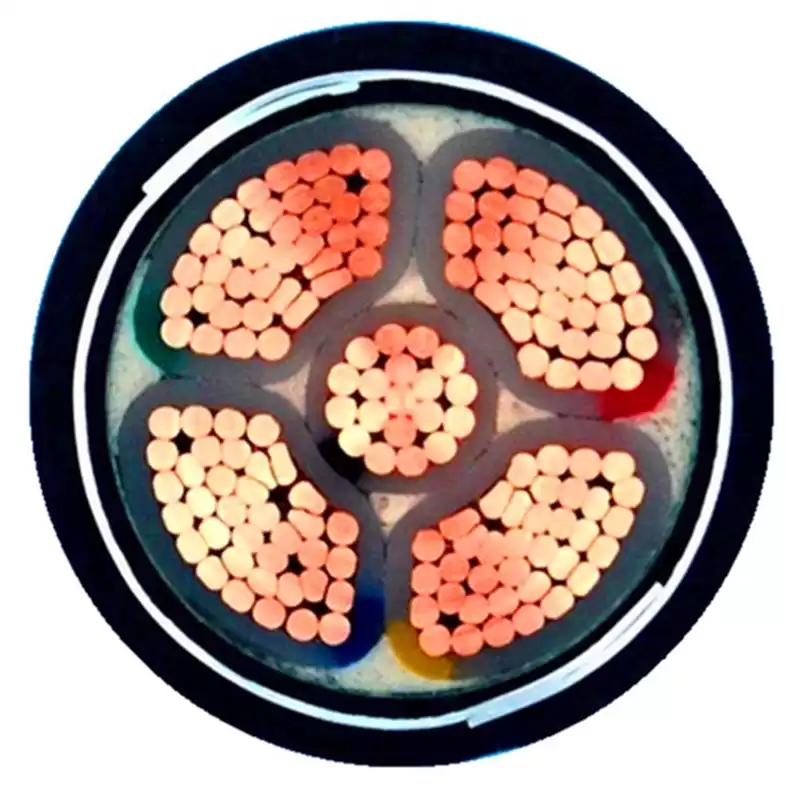

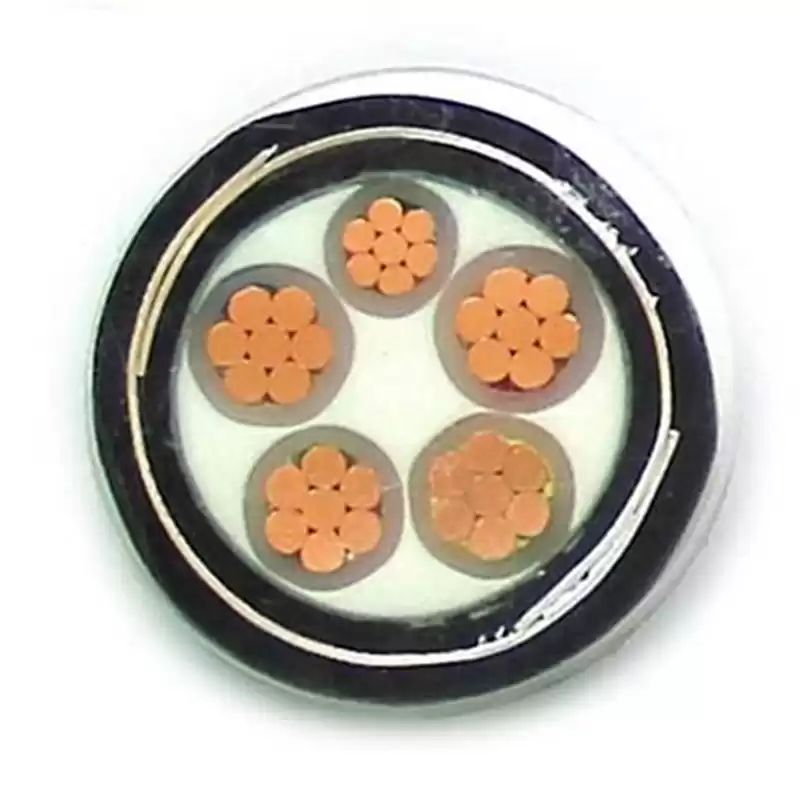

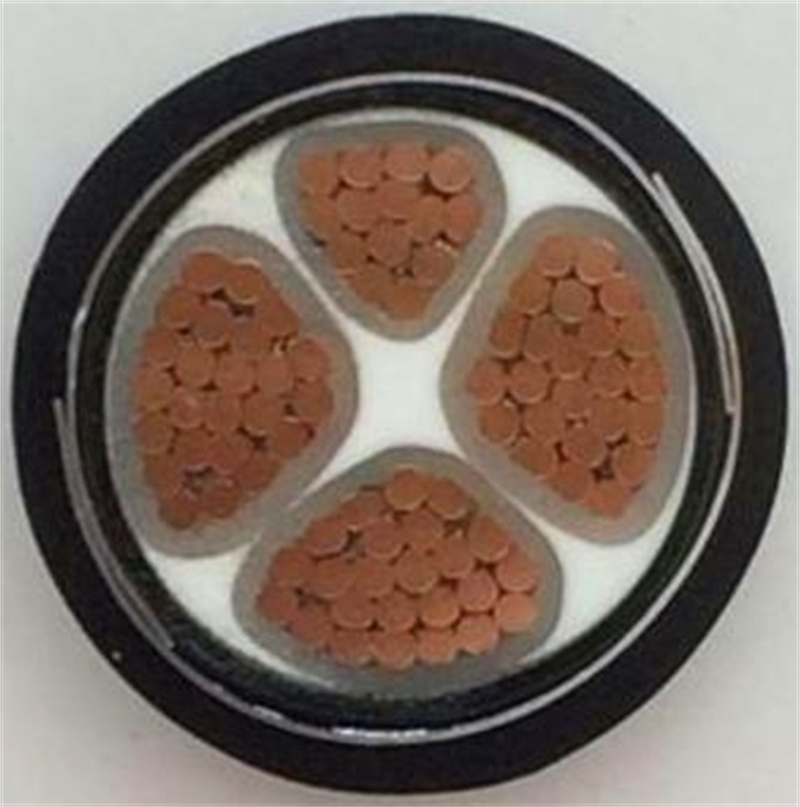

PRODUCTS STRUCTURE

YJV22 Copper Wire XLPE Insulated STA Armoured PVC Sheath Power Cables

the structure as below:

---Conductor Material

     Plain annealed copper wire, solid Class 1, or stranded Class 2.

---Insulation Material

     XLPE (corss-linked polyethylene).

---Inner Sheath Material

     PVC (polyvinyl chloride).

---Armoured Material

     Galvanized steel tape armoured, double layers, 100% coverage.

---Out Sheath Material

     PVC (polyvinyl chloride).

Seebest Cable

a

PRODUCTS DIMENSIONS

 Description of Cable   Products Main Technical Sheet
 Products Name

 YJV22 Copper Wire XLPE Insulated STA Armoured

 PVC Sheath Power Cables.

 Conductor Material  Plain annealed copper wires, stranded Class 2.
 Conductor Structure  3C x 7/2.14 mm.
 Insulation Material  XLPE (corss-linked polyethylene).
 Insulation Thickness  1.2 mm.
 Insulation Colour  Brown, blue, yellow/green; or others.
 Inner Sheath Material  PVC (Polyvinyl Chloride).
 Inner Sheath Thickness  1.0 mm.
 Inner Sheath Colour  Black.
 Armoured Material  Galvanized steel tape, double layers.
 Out Sheath Material
 PVC (Polyvinyl Chloride).
 Out Sheath Thickness  1.8 mm.
 Out Sheath Colour  Black, red, orange, or others.
 Conductor Cross-section  3 x 25 mm2.
 Core Number  Three cores, 3 cores, 3C.
 Out Diameter  17.7 mm.
 Voltage Rate  600/1000V, 0.6/1kV (U0/U).
 About Net Weight  1166 kg/km.
 Production Standard

 GB/T 12706-2020, IEC 60502.

 Max. Conductor DC

 Resistance at 20℃ in Air

 0.727 Ω/km.

 Min. Insulated

 Resistance at 70

 0.009 MΩ.km.

 Max. Ampacity

 at 25℃ in Underground

 110A.

Seebest Cable

COMPANY PROFILE

Xiamen Seebest Wire & Cable Co., Ltd, was established in 2009, is located in Xiamen City, Fujian Province, China. The total area of company more than 100,000 square meters. The company is a modern manufacturing enterprise specializing in the research, development, production, sales and service of wire and cables for customers at home and abroad.

COMPANY ADVANTAGE

---Reasonable Price, Overvalue Products, Quickly Delivery, Foremost Services.
---ISO9001, CCC, CE, CB, RoHS, SAA, VDE, DEKRA, UL, and other certificates.
---20 years of professional experience in wire and cable manufacturing, sales, and service.
---One hour arrives at Xiamen airport, seaport, High-speed Railways station, and bus station.
---2 professional engineers, 8 rigorous QC staff, and a total of 168 experienced staff.

---Familiar with GB, JB, IEC, AS/NZS, BS, VDE, TüV, UL, and other standards, can be customized for wire and cables according to the customer's requirements.

Seebest Cable

COMPANY PRODUCTS

---Electrical Wires: PVC or LSZH Insulated Electrical Wires.
---Power Cables: 0.6/1kV, PVC, XLPE, or LSZH Insulated Power Cables.
---Electronic Wires: UL 62, UL 1007, UL1015, UL 2464, UL 2468, VDE 0281, VDE 0282,

    VDE 0250, and other Electronic Wires.

---Customized Products: Fire Retardant Cables, Fire Resistant Cables, Mineral Insulated Power

    Cables, LSZH, LSOH, LSFH and other RoHs Cables, and Environmental Protection Cables.

---Communication Cables: Networking Cables, Telephone Cables, Coaxial Cables, Speaker Cables.

---Power Plugs: CCC, UL, VDE, and other standards Power Plugs.

Seebest Cable

COMPANY SLOGAN

---Seebest Cable: Become the most trusted cable company in China.
---Seebest Cable: Focus on Quality, Foremost Service.
---Seebest Cable: It is your Production Base, Overseas Warehouse, Purchase Consultant,

Technology Supporter, and Sales Assistant in Wire and Cables Industry.

COMPANY FAQ

1. Are you a manufacturer or trading company?
We are a professional manufacturer, we can control your order from the first step to the final shipment (from start to end), welcome you to visit us, we will receive you warmly in Xiamen City, China.

2. Can you provide the free samples?
Of course, we can provide free samples to you, but you should pay the express freight and taxes.

3. What’s your Minimum Order Quantity?
For the Electrical Wires less than 16mm2, the MOQ is 5,000 meters;

For the Power Cables more than 25mm2, the MOQ is 1,000 meters;

For the networking cables, the MOQ is 100 boxes/cartons;

For the Electronics Wire with International Approvals, the MOQ is 10,000 meters.

For other customized wire and cables, please negotiate the MOQ with us immediately.

Seebest Cable


4. Can you give me the price discount?

We can give you the price discount, but the discount percent depends on the quantity, quality, packaging and payment terms in your order.

In addition, price is an important factor, but it should not the decisive factor; the price can be lower, but we must keep the safe bottom-line. The high-quality products can help you saving more money, and there is not potential safety hazard, you don't worry about them every day.

5. Can you provide the OEM, OBM and ODM services?

Yes, we can provide OEM, OBM and ODM services for you, but you should provide the Power of Attorney for Trademark and other detailed information to us.
