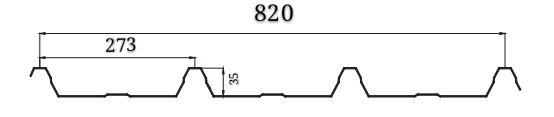

YX35-273-820 Roof Panel Roll Forming Machine

Easy to operate and running stable.





          YX35-273-820 Roof Panel Roll Forming Machine


 Roof Panel Roll Forming Machine


1.Main features of YX35-820 roof panel machine roll forming machine


    The advantages of roof panel machine are as follows:

    1.Low cost, light weight but high strength, short building period, and re-cycle use

    2.Save material ,no waste.

    3.Easy operation, low maintenance cost

    4.Able to deal with stainless material



2.Detailed Images of YX35-820 roof panel forming machine


        Machine Parts

              1) YX35-820 roof panel machine pre-cutter

        Brand: BMS    Original: China

        With feeding material guide.


 Roof Panel Roll Forming Machine


2)            2) YX35-820 roof panel machine rollers

        Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.

        with black treatment or Hard-Chrome Coating for options.

        Body framemade from 350# H type steel by welding


Roof Panel Roll Forming Machine



Roof Panel Roll Forming Machine


3)              3YX35-820 roof panel machine post cutter

         Made by high quality mold steel Cr12 with heat treatment

        Cutter frame made from high quality 20mm steel plate by welding

        hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa


Roof Panel Roll Forming Machine


Roof Panel Roll Forming Machine


4)              4) YX35-820 roof panel machine touch screen


Roof Panel Roll Forming Machine


4)             5) YX35-820 roof panel machine control cabinet


Roof Panel Roll Forming Machine


4)              6) YX35-820 roof panel machine product show


Roof Panel Roll Forming Machine

Roof Panel Roll Forming Machine


5)           7) YX35-820 roof panel machine decoiler

        ManualDecoiler: one set

        Un-powered,manually control steel coil inner bore shrinkage and stop

        Max. feeding width: 1200mm, coil ID range 508mm±30mm

        Capacity: 5-9 Ton

 Roof Panel Roll Forming Machine



        With 6 tons hydraulic decoiler for option

Roof Panel Roll Forming Machine


6)           8) YX35-820 roof panel machine exit rack

        Un-powered,three units


Roof Panel Roll Forming Machine




Other detailes of YX35-820 roof panel roll forming machine



Suitable for material with thickness 0.3-0.8mm

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 14 steps to form.

Main motor=5.5KW , Frequency speed control. Forming speed approx.12-15m/min

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,

Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)

Combined with: PLC, Inverter, TouchScreen, Encoder, etc

Cut-to-lengthtolerance≤±2 mm

Control Voltage 24V

User's manualin English



After-sale service of roof panel roll forming machine



1. The warranty of purlin roof panel roll forming machine

    is one year after the client receives the machine.

    Within the one year, we will courier the replacement parts to the client free of charge.

2. We offer technical support for the entire life of our machines.

3. We can send our technicians to install and train the workers in the clients' factories with extra cost.



Terms of trade



1. Minimum order quantity (MOQ): 1 piece

2. Delivery time: about 30 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,

    Malaysia ,Thailand,  Philippines, Myanmar ,Vietnam, South Africa, Mozambique,

    Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
