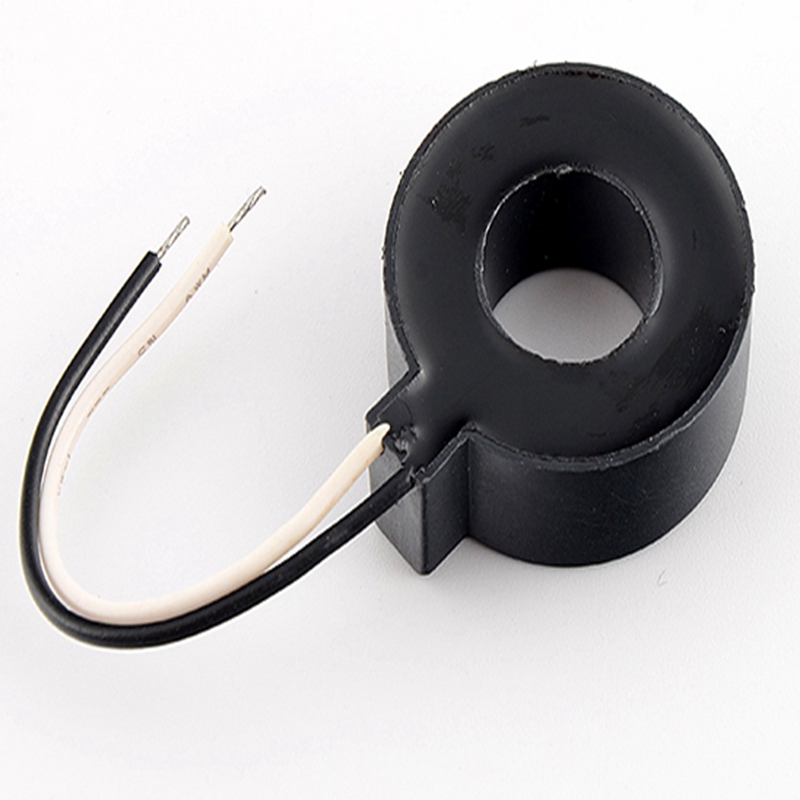

zct zero current transformer model ZCT206

High sensitivity and close to zero load shift
Excellent characteristics in temperature and balance

Small change of output voltage after large DC impulse

A variety of configuration and output characteristics
Used for leakage current detection

Facebook Twitter Pinterest LinkedIn 分享

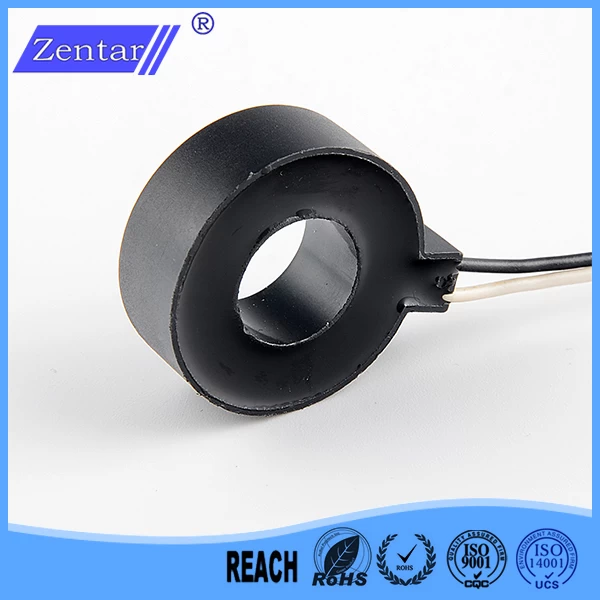

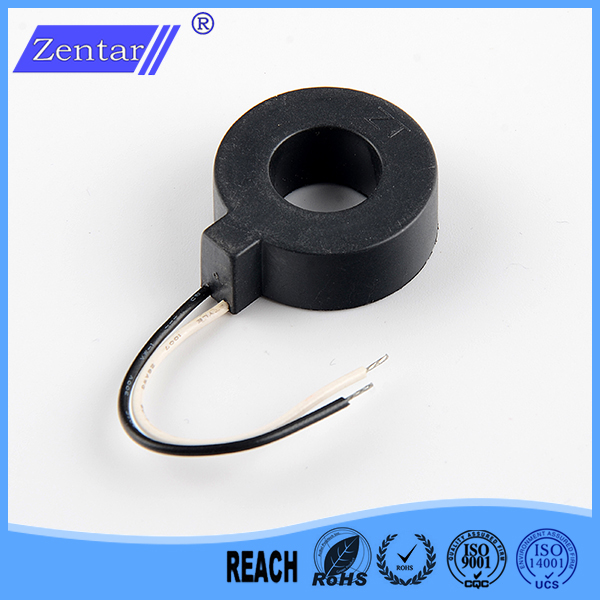

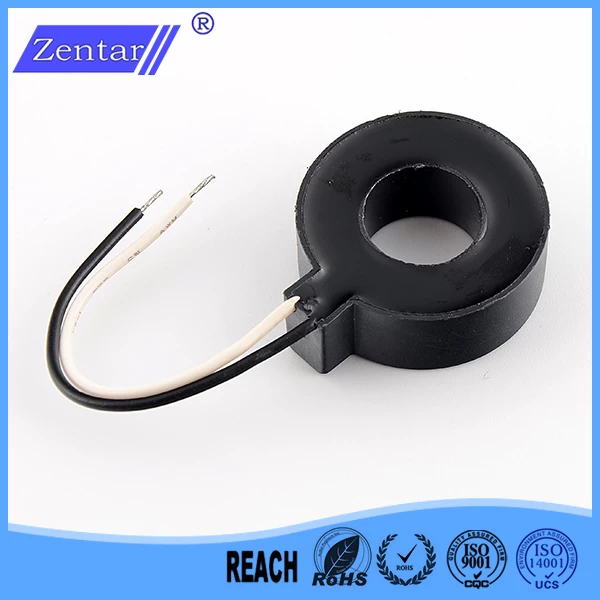

zct zero current transformer model ZCT206


Zero phase current transformer which detects the difference between the currents flowing in a number of conductors. The current flowing to a load must equal the current flowing back from the load. If this is not the case, a potentially dangerous residual current will be flowing somewhere in the installation.

Wire lead type zero phase current transformers are easy integrated into standard PCB sub-assemblies that are compliant with IEC61008, IEC61009 and IEC62423 requirements.


Rated Current 50A
DC Resistance at 25℃ 58±5Ω
Dielectric Withstanding     Voltage(Hi-pot) 2500Vrms
Output Voltage Vo 7.5-8.5mV
zct zero current transformer


Electrical Characteristic

Item

Rated Current(A)

Output Voltage
Vo(mv)

Test Conditions

Over Leakage
Characterstics

Temperature
Characteristics
-35~80℃

Dimensions
(mm)













ID

OD

HT

ZCT201

30

4-5.1

lin=10mA RL=510

-10%~0%

10%Max

5.9

16

6.5

ZCT202

30

5.1-6

lin=8mA RL=750

-10%~0%

10%Max

5.8

15.2

6.1

ZCT203

50

17-21

lin=22.5mA RL=1k

-10%~0%

10%Max

9.2

21

7.3

ZCT204

30

12-15

lin=22.5mA RL=1k

-10%~0%

10%Max

9.8

20.6

6.5

ZTC205

30

12.5-15.5

lin=8mA RL=4.7k

-10%~0%

10%Max

9.3

21.3

7.2

ZCT206

50

17-21

lin=22.5mA RL=1k

-10%~0%

10%Max

12.3

26

10

ZCT207

30

7.5-8.5

lin=25mA RL=1k

-10%~0%

10%Max

15.4

29.8

10

ZCT208

60

10.2-12.5

lin=20mA RL=680

-10%~0%

10%Max

7.2

19.4

7.7

ZCT209

50

8-11.2

lin=11.25mA RL=1k

-10%~0%

10%Max

7

17.2

7

ZCT210

50

8-11.2

lin=11.25mA RL=1k

-10%~0%

10%Max

6.8

16.9

7.9

ZCT211

50

8-11.2

lin=11.25mA RL=1k

-10%~0%

10%Max

10.6

25.4

8

ZCT212

60

10.2-12.5

lin=20mA RL=680

-10%~0%

10%Max

11

23.5

8

ZCT213

60

≥300

lin=25mA RL=1k

-10%~0%

10%Max

9.4

23.8

12.7

ZCT218

60

10.2--12.5

lin=25mA RL=680

-10%~0%

10%Max

7.5

18.9

7.6

ZCT220

60

≥300

lin=25mA RL=47k

-10%~0%

10%Max

10.1

24

11.5

ZCT225

60

≥300

lin=25mA RL=47k

-10%~0%

10%Max

10.9

25.5

9

ZCT401

100

17-21

lin=22.5mA RL=1k

-10%~0%

10%Max

15

29.2

10

ZCT402

100

6.3-7.5

lin=20mA RL=370

-10%~0%

10%Max

17.5

35.9

8.8

ZCT403

250

17-21

lin=22.5mA,RL=1k

-10%~0%

10%Max

29

51

12

ZCT404

250

17-21

lin=22.5mA,RL=1k

-10%~0%

10%Max

32

55.6

12

ZCT405

250

17-21

lin=22.5mA,RL=1k

-10%~0%

10%Max

42

80*69

20

ZCT406

630

17-21

lin=25mA,RL=1k

-10%~0%

10%Max

51.3

84

26

ZCT407

800

17-21

lin=22.5mA,RL=1k

-10%~0%

10%Max

51

96*89

23

ZCT408

100

125-150

lin=500mA,RL=150

-10%~0%

10%Max

19

36

11.5

ZCT409

225

125-150

lin=500mA,RL=150

-10%~0%

10%Max

24

42

12

ZCT410

400

125-150

lin=500mA,RL=150

-10%~0%

10%Max

43

90*74

16

ZCT411

800

120-151

lin=500mA,RL=150

-10%~0%

10%Max

53

96*89

23


Output voltage and Turns resistor graph




Testing



Packing and Shipping

We provides customized service and expertise in consulting, design and manufacturing of current transformers,RCD fused connection unit and wireless energy monitor.
