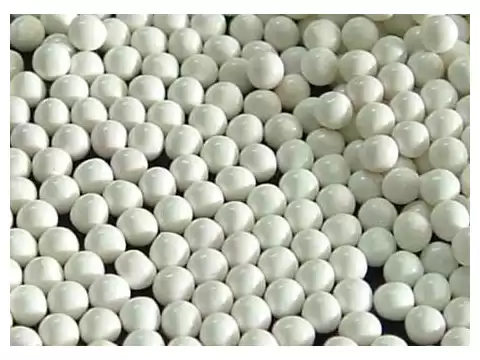

About Zirconium Silicate Grinding Bead
*A medium density media particularly suitable for use in large-volume agitated bead mills
*Fully dense, perfect sphericity and extremely smooth beads surface
*No porous and irregular shape problems
*Outstanding breakage resistance
*Optimum performance-price ratio
This is the bead recommended to efficiently fine-grind zircon
Zirconium Silicate Grinding Bead Specification
|
Production
Method
|
Main Components
|
True Density
|
Bulk Density
|
Moh's Hardness
|
Abrasion
|
Compressive
Strength
|
|
Sintering
Process
|
ZrO2：65%
SiO2：35%
|
4.0g/cm3
|
2.5g/cm3
|
8
|
<50ppm/hr
(24hr)
|
>500KN
（Φ2.0mm）
|
|
Particle Size
Range
|
0.2-0.3mm
0.3-0.4mm 0.4-0.6mm 0.6-0.8mm
0.8-1.0mm 1.0-1.2mm 1.2-1.4mm 1.4-1.6mm 1.6-1.8mm
1.8-2.0mm 2.0-2.2mm 2.2-2.4mm
2.4-2.6mm 2.6-2.8mm 2.8-3.2mm 3.0-3.5mm
3.5-4.0mm Other sizes may also
be available based upon customers’ request
|

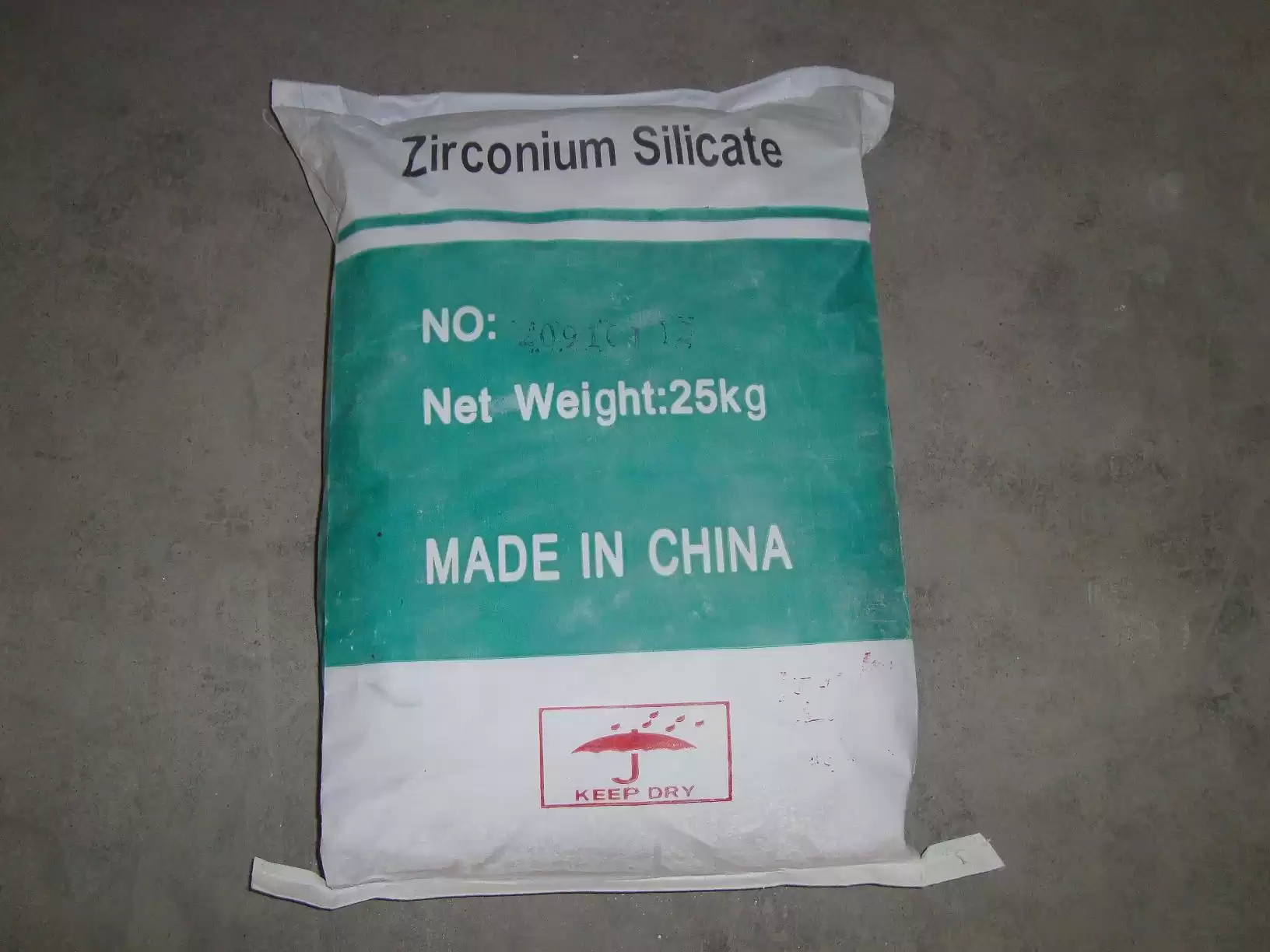

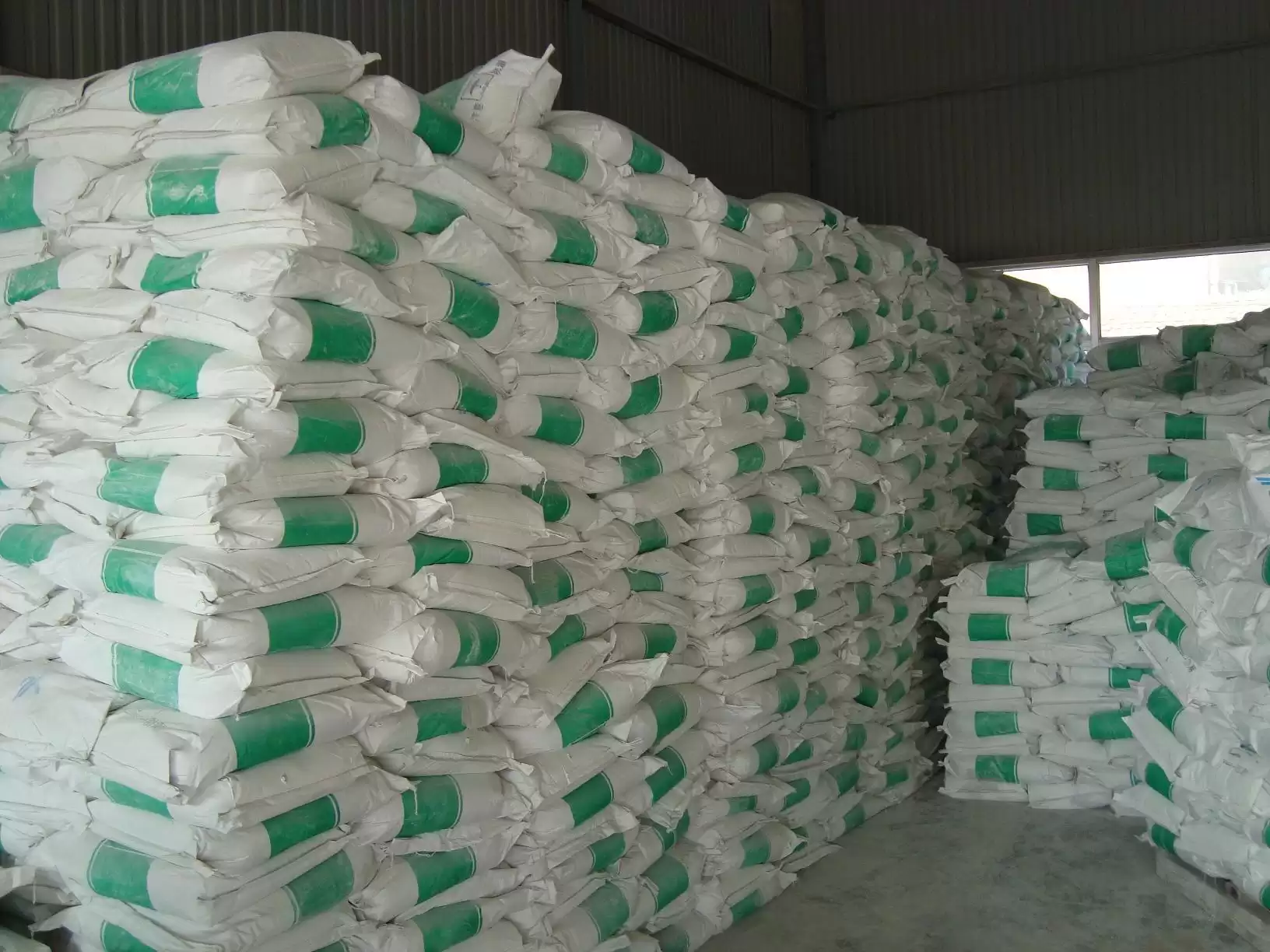

Packing Service:Be carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
What is Zirconium Silicate Grinding Bead used for?
Zirconium Silicate Beads can be used in milling and dispersion of following materials, just name a few:
Coating, paints, printing and inks
Pigments and dyes
Agrochemicals e.g. fungicides, insecticides
Minerals e.g. TiO2 ,GCC , Zircon and Kaolin
Gold, silver, platinum, lead, copper and zinc sulfide
