Product Feature
■ Excellent performance because of an MCU intelligent control technology;
□ 3000 watt solar generator with a pure sine wave AC output;
■ convenient and practical 5V DC-USB output port and 12V DC output port;
□ Solar array and battery common-anode system input;
■ Charge by the electricity grid for flexible configuration;
□ Solar power generator with overcharge protection and over-discharge protection for longer battery life;
■ LCD and LEDs for visualization of the operation status of the equipment;
□ Solar generator with overall automatic protection and alarms including AC output overload protection, and short circuit protection.
High cell efficiency up to 23.4%
Maximize electricity production in the available area
ETFE laminate: durable & scratch-resistant & splash-Proof
Over-charge protection
Over-current protection
Over-temperature protection
Flexible & easy set-up
3 levels of adjustments
Range: -40℃~50℃

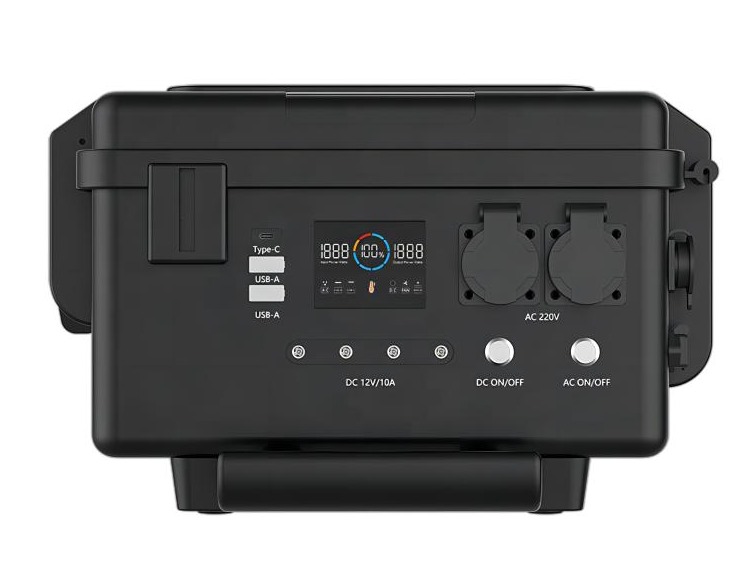

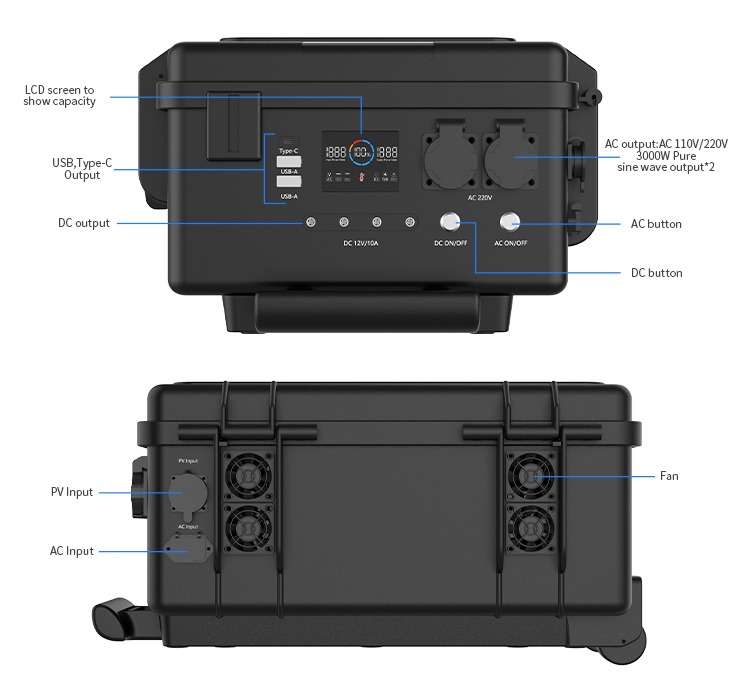

Interface & Key description
3584Wh POWERFUL CAPACITY
Outdoor generators in perfect battery capacity to power most of your essential devices and small appliances such as mini refrigerator, fan, camera, projector, lamp light, TV, CPAP, and more. This powerful portable charging station serves as a reliable emergency backup or handy travel companion.
Product Paramenters
|
Model No:
|
ZL3000
|
|
Capacity:
|
3584Wh
|
|
Ouput Peak power:
|
Max 6000W peak
|
|
Battery Type:
|
LiFePO4 70Ah*16PCS 8S2P
|
|
AC Input:
|
1500W
|
|
MPPT PV Input:
|
120-500V Max3500W
|
|
USB Output1:
|
QC3.0(5V-12V) 18W*2
|
|
USB Output2:
|
TYPE C: PD60W
|
|
DC Output3:
|
12v 10A*4
|
|
AC output:
|
AC 110V/220V 3000W Pure sine wave output*2
|
|
Indicator:
|
LCD screen to show DC,AC volt, power percentage,Frenquency Hz.
|
|
Charging time:
|
2-3hours
|
|
Shell material:
|
Engineering PP
|
|
Product weight:
|
37KG
|
|
Dimension:
|
570x425x280mm
|
|
Color:
|
BLACK
|
|
Certificate:
|
CE,FCC,MSDS,UN38.3
|
|
Carton Info:
|
632*496*336mm,1PC,45KG
|
|
Packing accessories:
|
AC charge cable , PV charge cable ,User manual
|
Application Scenarios
Q. What's price?
A: We provide reasonable price and recommend suitable batteries to our customers.
Q. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q. Can I print my LOGO on it?
A: Yes, LOGO/sticker/OEM/ODM welcomed.
Q. Do you accept OEM/ODM?
A: Yes,it is available.We have OEM group to design battery case.
Q.Which certificates do you have?
A:We have CE/ROHS/FCC/SGS/UN38.3/MSDS ...etc.
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. What is your Shipping way?
A: We suggest sample & small order to be shipped to destination through our shipper partner who has excellent UPS/DHL/FEDEX/TNT service.Big order to be shipped by sea.
