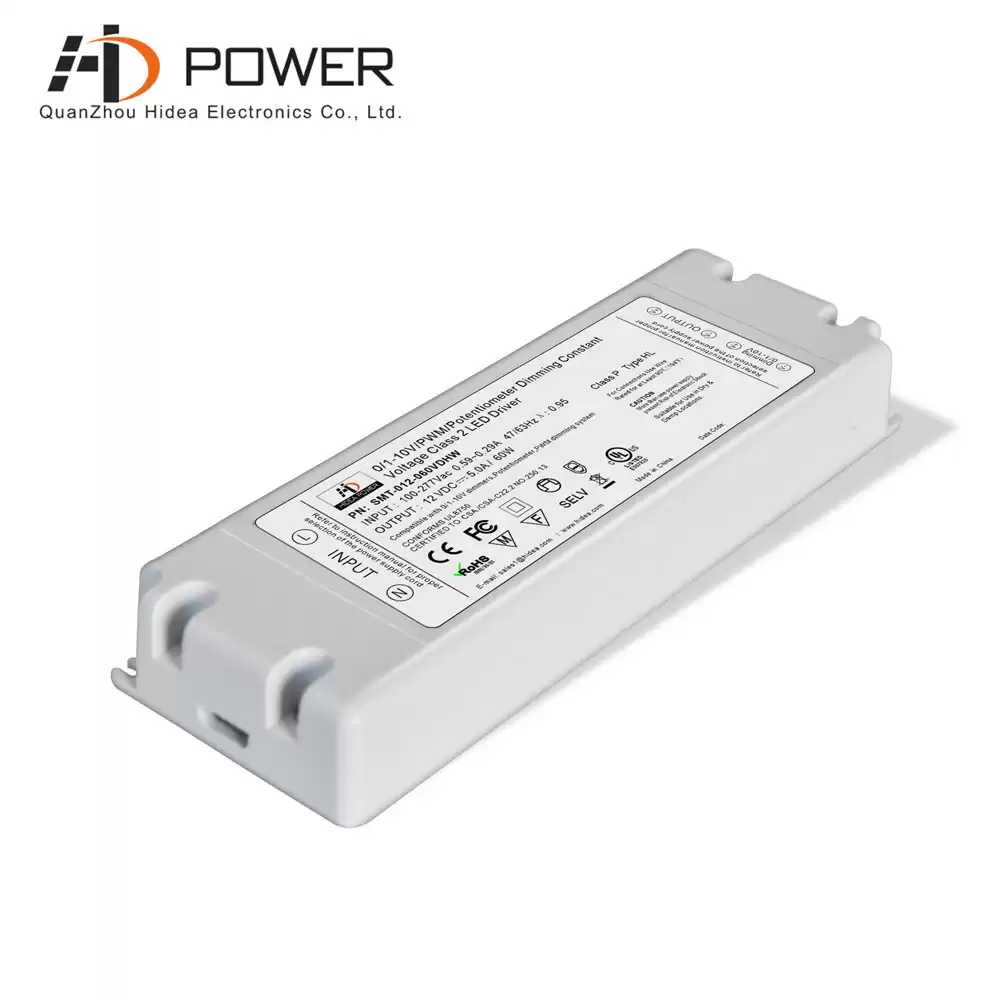

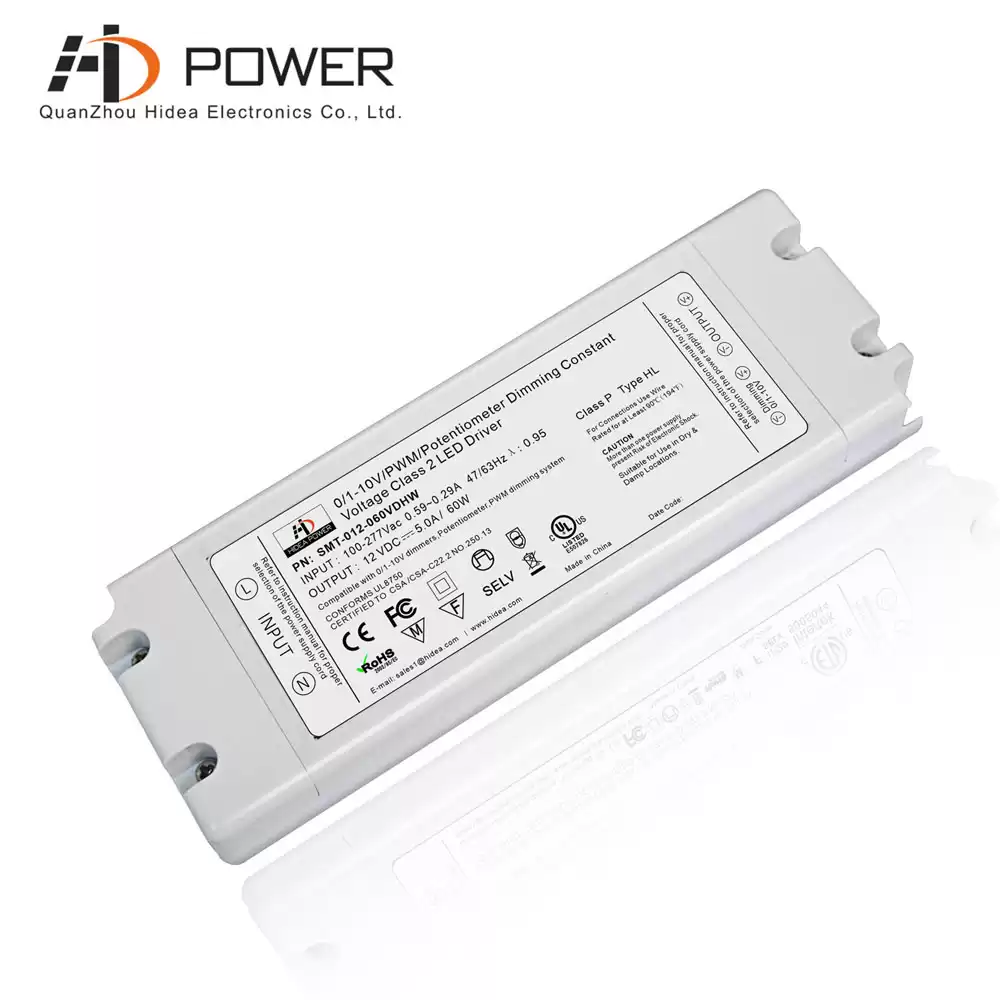

A series of 60w dimmable led drivers 12v, through 100% full load burn-in test. It application with Black Hawk Led Lights strip lighting 12 Volts, suit for suitable for dry & damp location.
Specification
|
model
|
SMT-012-060VDHW
|
SMT-024-060VDHW
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Accuracy
|
±0.5V
|
±0.5V
|
|
Voltage Regulation
|
±0.5%
|
|
Rated current
|
5.00A
|
2.50A
|
|
Load Regulation
|
±1%
|
|
Rated power
|
60W
|
60W
|
|
Input
|
Voltage Range
|
100-277V AC
|
|
Frequency Range
|
47~63HZ
|
|
Power Factor ( Typ.)
|
0.98@120VAC 0.98@277VAC
|
0.98@120VAC 0.98@277VAC
|
|
Protection
|
Full Load Efficiency(Typ.)
|
>88%
|
>89%
|
|
AC Current(Typ.)
|
0.9A/110VAC / 0.64A/277VAC
|
|
Inrush Current (Typ.)
|
14A, 50%, 780us
|
|
Leakage current
|
<0.50mA
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition removed
|
|
Over Loading
|
≤120% Hiccup mode,recovers automatically after fault condition is removed
|
|
Over voltage
|
≦140VAC(90~135V) , ≦285VAC(170~277V)
|
|
Environment
|
Working TEMP.
|
-40~+60℃
|
|
Working Humidity
|
20~90%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP.coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
Class P, Type HL, EN61347-1 EN61347-2-13
|
|
Withstand voltage
|
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547 Alight industry level (surge4KV)
|
|
Others
|
Weight
|
About 0.35Kg
|
|
Size
|
178*61*24mm(L*W*H)
|
|
packing
|
20PCS/CTN (L*W*H)
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.
|
|
2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.
|
|
3. Tolerance:includes set us tolerance,line regulation and load regulation .
|
Compatible Light Type
12v 24v 60W 0-10v dimmable constant voltage led driver plastic 100-277VAC input for Black Hawk Led Lights strip lighting 300LEDs are sell well in North American and Europe market.
Related Products
|

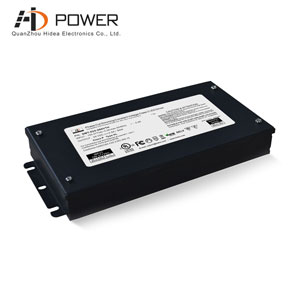

 60w 12v 24v output dimmable constant voltage led driver, suitable for dry & damp location...
