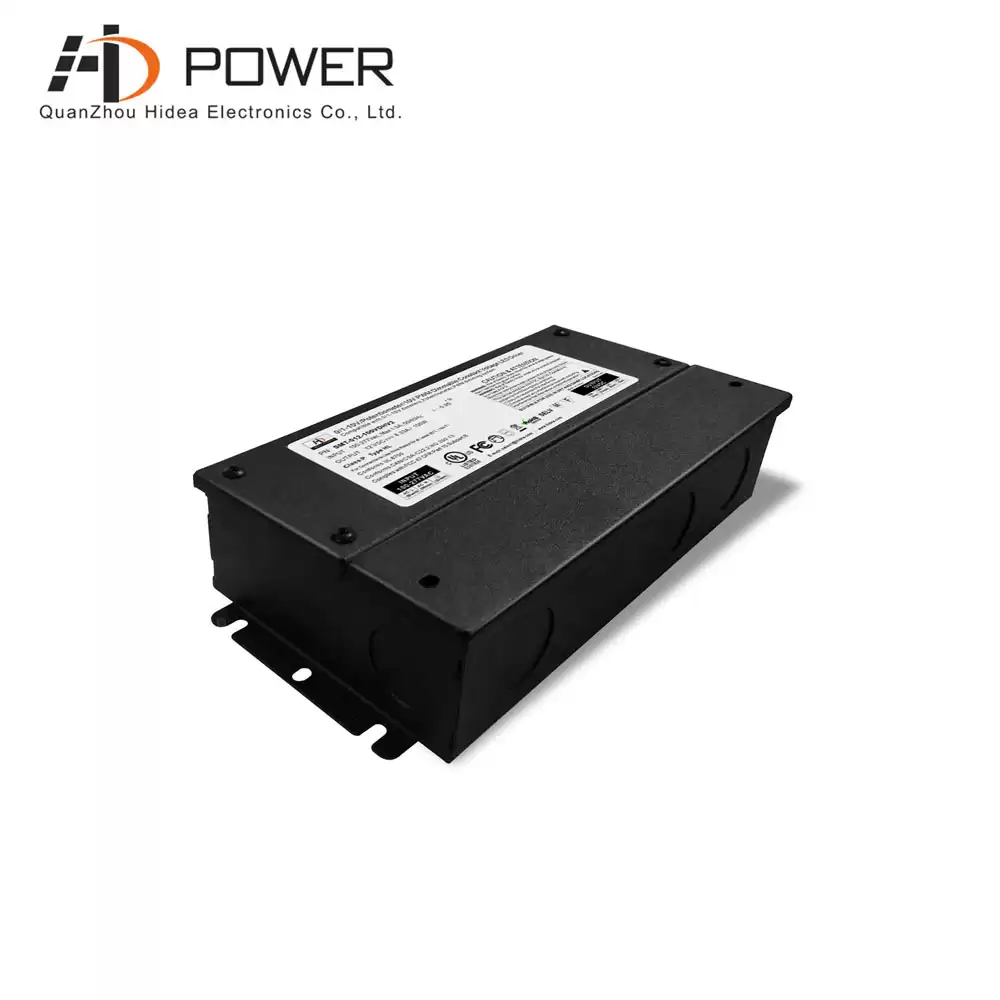

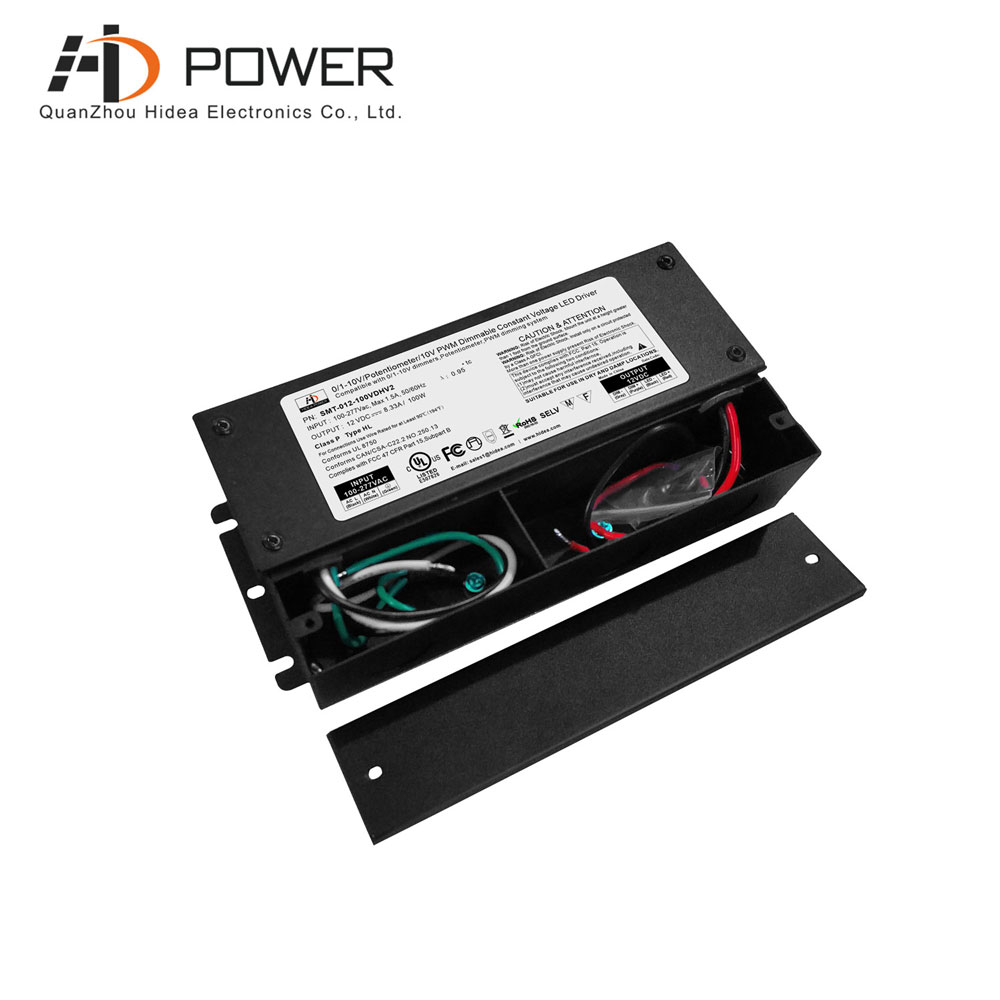

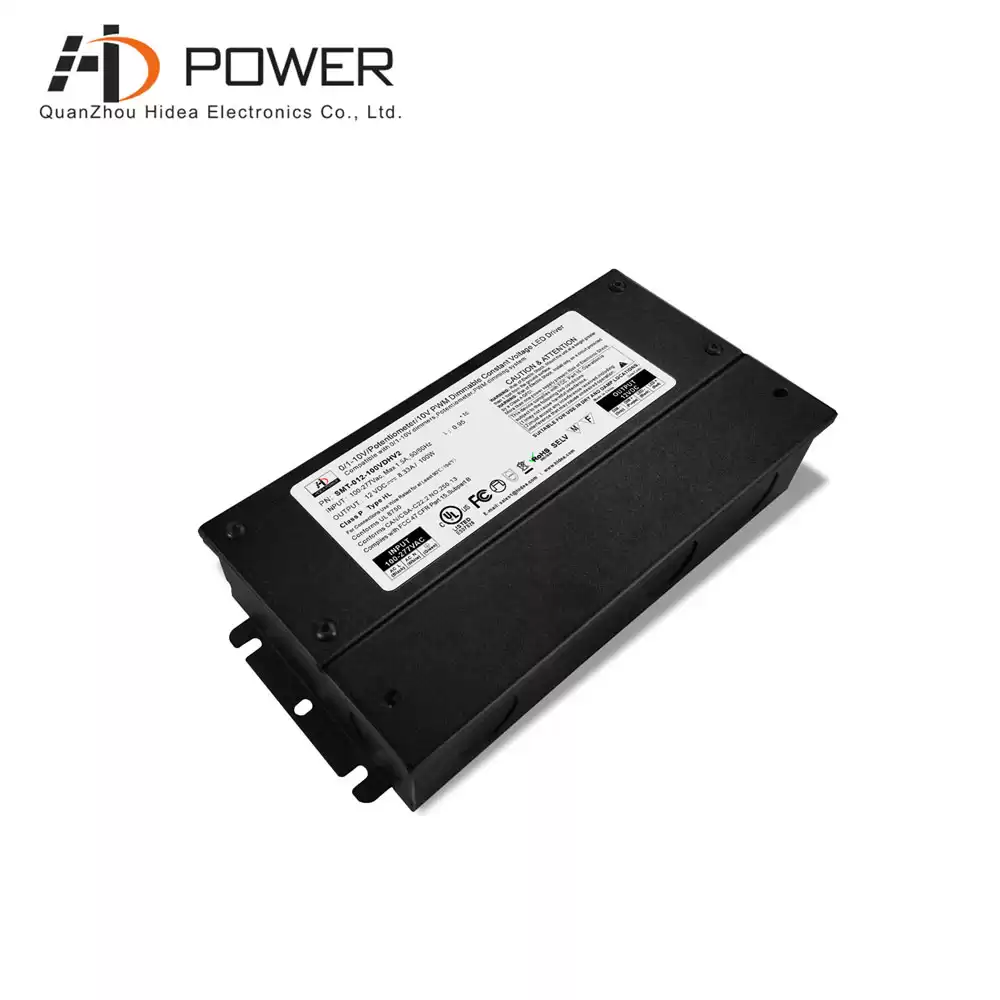

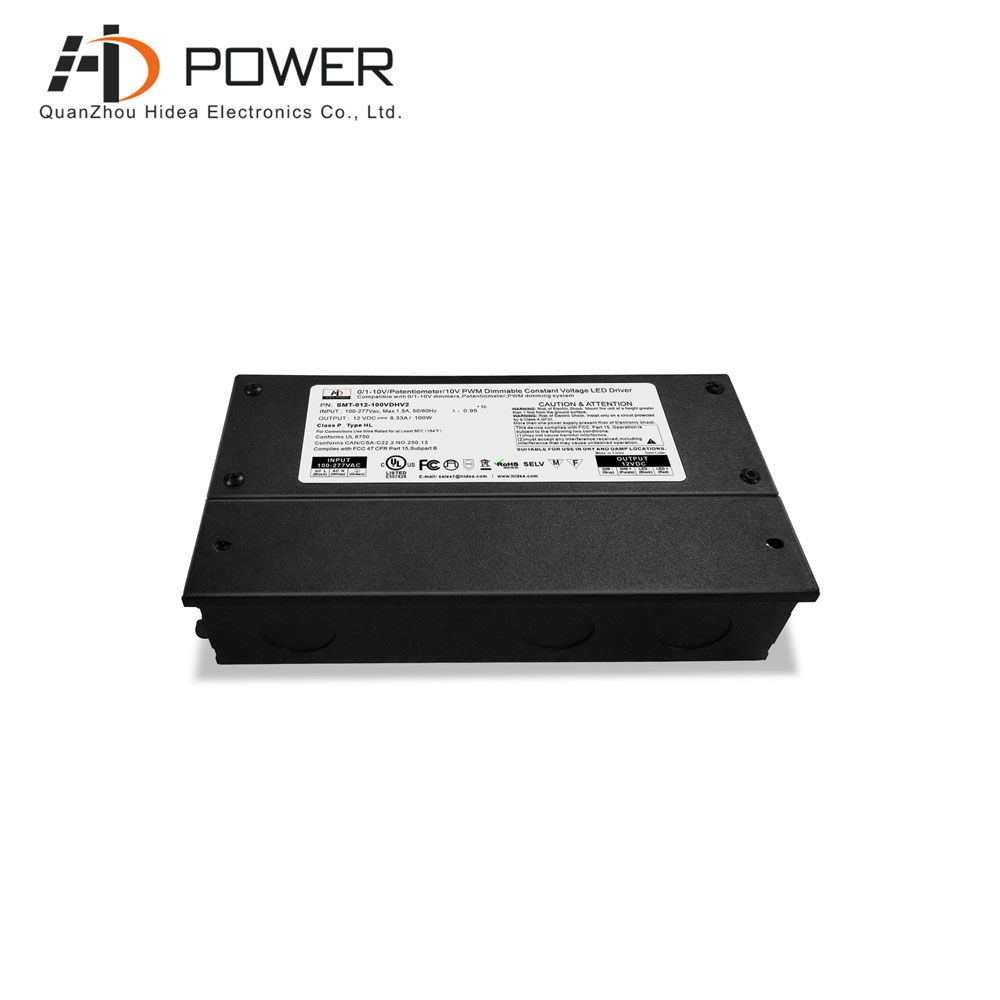

0-10v dimmable 100w LED drivers are ideal for commercial applications designed with 0-10V systems, are rated for wet and dry locations, and offer a smooth, continuous dimming. These 0-10V drivers are engineered to work with OPTIMIZE 0-10V dimming controls for superior dimming performance.
Specification
|
model
|
SMT-012-100VDH (1.0 version)
SMT-012-100VDHV2 (2.0 version)
|
SMT-024-096VDH (1.0 version)
SMT-024-096VDHV2 (2.0 version)
|
|
Output
|
DC Voltage
|
12V
|
24V
|
|
Voltage Tolerance
|
±0.5V
|
±0.5V
|
|
Rated current
|
8.3A
|
4.0A (class 2 type)
|
|
Voltage Regulation
|
±0.5%
|
±0.5%
|
|
Load Regulation
|
±1%
|
±1%
|
|
Rated power
|
100W
|
96W
|
|
Input
|
Voltage Range
|
100-277VAC
|
|
Frequency Range
|
47-63Hz
|
|
Power Factor(Typ.)@ full load
|
0.98@120VAC 0.95@277VAC
|
|
THD(Typ.)@ full load
|
<20%
|
|
Efficiency(Typ.)@ full load
|
83% @120Vac 86%@277Vac
|
|
AC Current(Max.)
|
1.3A@100VAC
|
|
Inrush Current (Typ.)
|
20A, 50%, 1.6ms
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
shut down o/p voltage, re-power on to recover after fault condition is removed
|
|
Over Loading
|
≤120% constant current limiting, auto-recovery
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40~+60℃ (see below derating curve)
|
|
Working Humidity
|
20~90%RH, non-condensing
|
|
Storage TEMP. Humidity
|
-40~+80℃,10~95%RH
|
|
TEMP .coefficient
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1.88KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
Others
|
Weight
|
1.37Kg (1.0 version)
|
|
Size
|
1.0version:220*94.5*40mm(L*W*H)/2.0version:220*94.5*40mm(L*W*H)
|
|
packing
|
298x240x220mm / 10PCS/CTN 385*335*200mm 20PCS/CTN
|
|
Notes
|
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
|
|
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
|
Compatible dimmer Type
This dimmable 12v led drivers provides 100 watt output power to your LED circuit with a sophisticated dimming function. This small and compact unit ensures reliable performance from a single LED or an LED string and is suitable for COLORFUL-USA's dimmer
Related Products
|

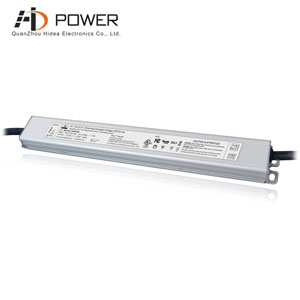

 This IP67 waterproof 12v slim line constant voltage 0-10v dimmable 100w led driver
Mode：SMT-012-100VDSW
Dimming Mode : 0-10V Dimming
Output Power : 100W
intput voltage：100~277V AC
Size：330*32*23MM （L*W*H）
|
