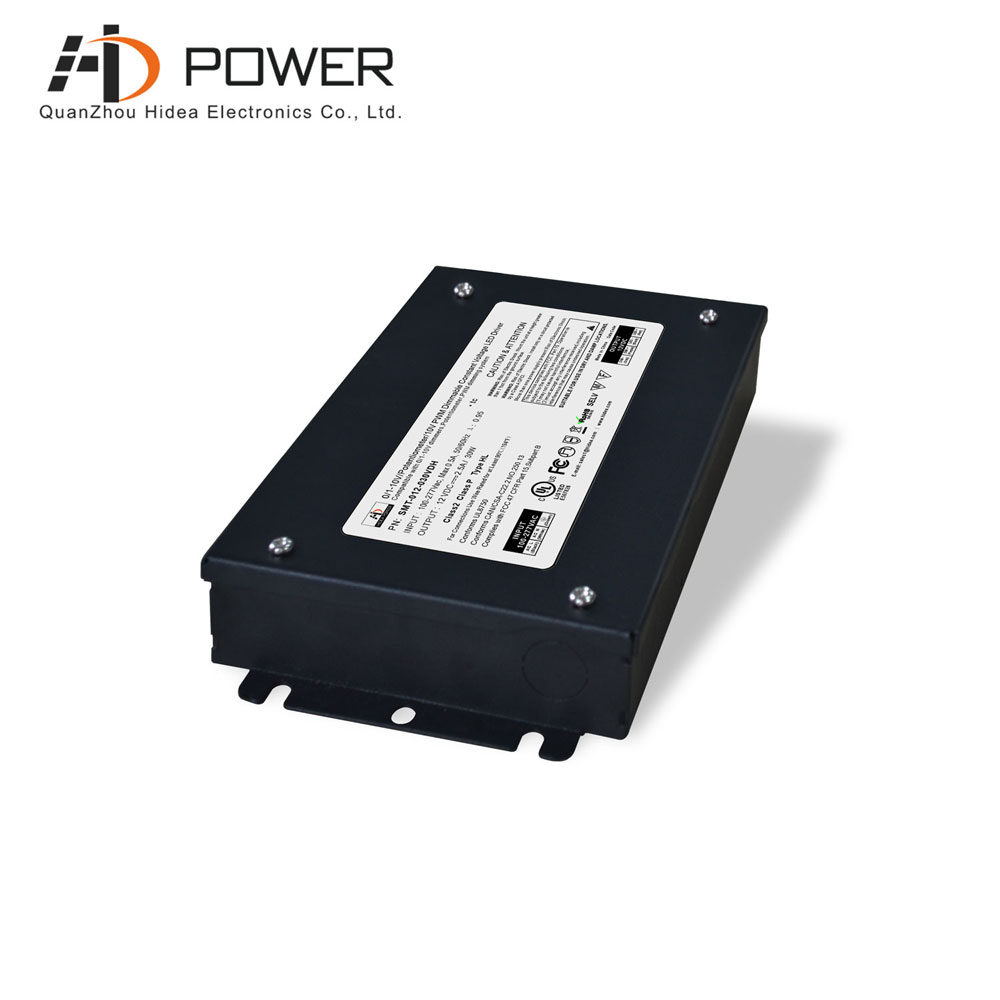

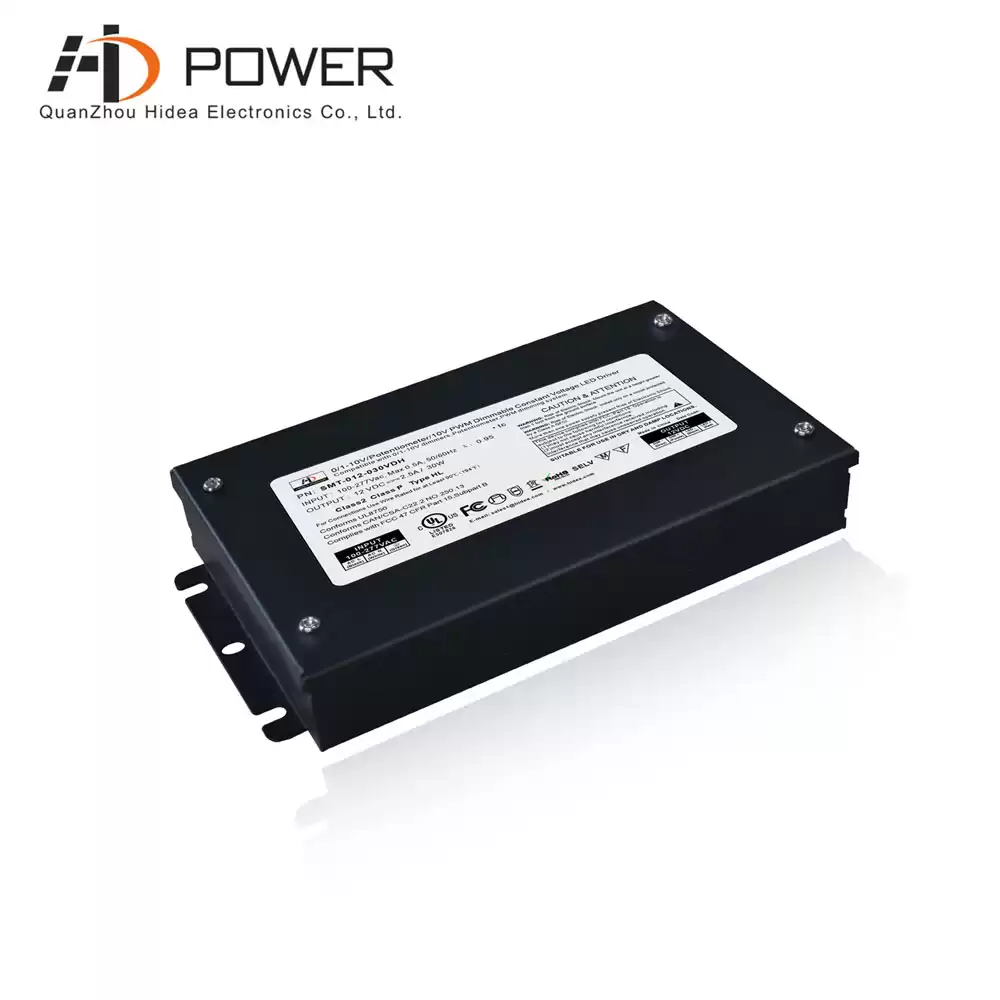

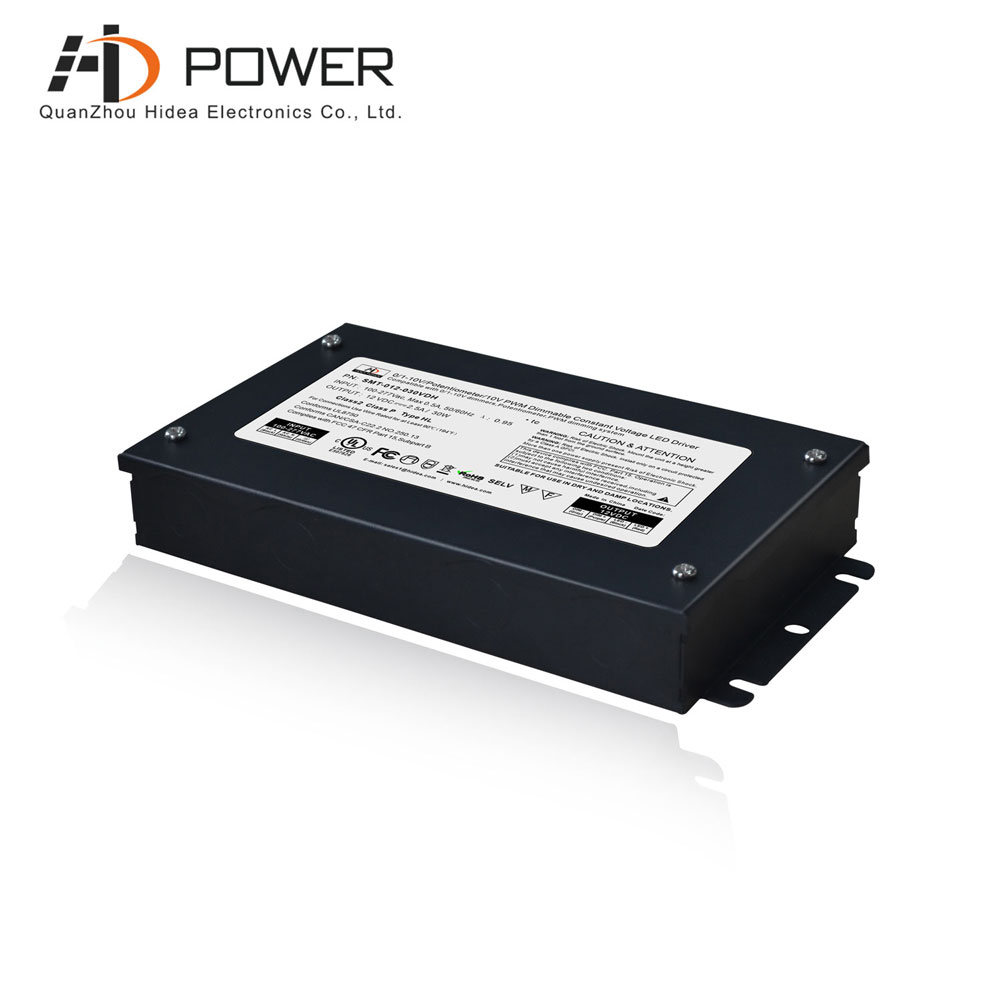

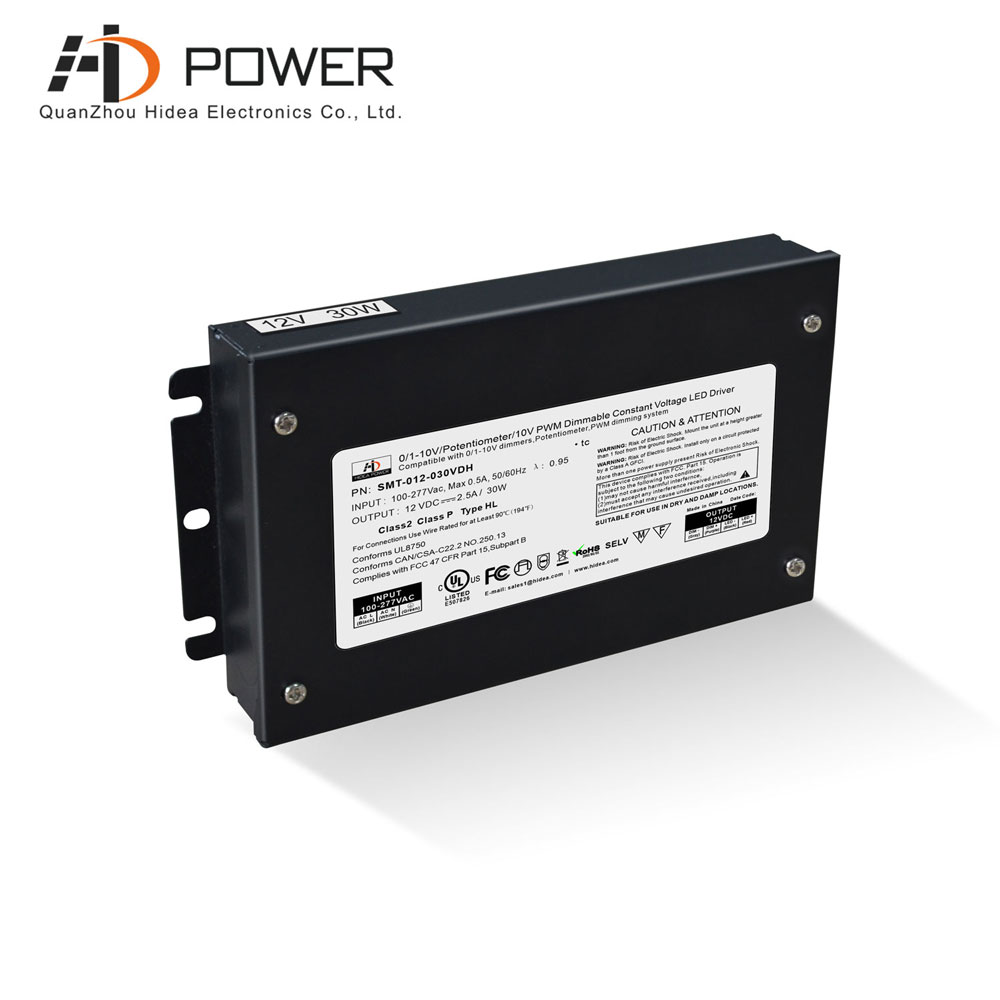

UL approval Class 2 12v 30w 0 10v dimming driver with junction box

Smarts 0 10v dimmable led driver with junction box is available at 12vdc and 24vdc, from 30w-384w. With Class 2 Class P, type HL standard, this 30 w led driver is ideal for lighting project or commercial applications.


  • Weight950g
  • Size165*92*26mm
  • Working ModeConstnat Voltage LED Driver
  • Shape & SizeJ-BOX Driver
  • Output Voltage12/24Vdc
  • Output Power(Watt)30W
  • Input Voltage100-277Vac
  • Dimming Mode0-10V Dimming
  • CertificationUL/CUL
  • Warranty7 Years

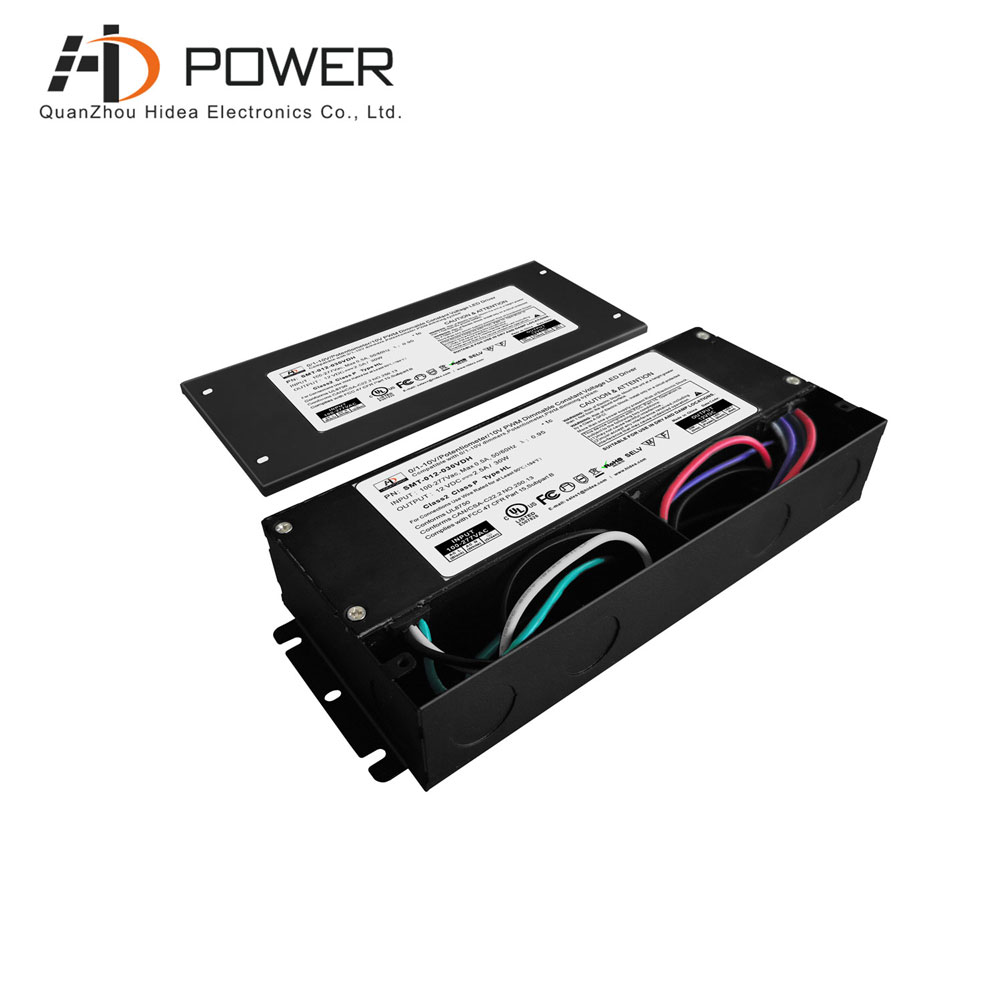

Smarts 0 10v dimming driver conforms UL 1310 and UL8750, meet UL FCC approval. Buit with junction box,  it is popular in North American for kitchen lighting, hidden under shelving and so on. Compatible with Lutron dimmer 120V.


  Specification

model SMT-012-030VDH (1.0 version)
SMT-012-030VDHV2 (2.0 version)
SMT-024-030VDH (1.0 version)
SMT-024-030VDHV2 (2.0 version)
Output DC Voltage 12V 24V
Rated Current 2.5A 1.25A
Rated Power 30W 30W
Voltage Tolerance ±0.5V
Voltage Regulation ±0.5%
Load Regulation ±1%
Input Voltage Range 100-277VAC
Frequency Range 47-63Hz
Power Factor(Typ.)@ full load 0.99@120VAC  0.98@277VAC 0.99@120VAC  0.95@277VAC
THD(Typ.)@ full load <20%
Efficiency(Typ.)@ full load 79% @120Vac   80%@277Vac 79% @120Vac    80%@277Vac
AC Current(Max.) 0.5A@100Vac
Inrush Current (Typ.) 7A, 50%, 420us @120Vac     12A, 50%, 480us @277Vac
Leakage current <0.50mA
Protection Short Circuit shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading ≤120% shut down o/p voltage, re-power on to recover after fault condition is removed
Over temperature 100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment Working TEMP. -40~+60℃ (see below derating curve)
Working Humidity 20~90%RH, non-condensing
Storage TEMP. Humidity -40~+80℃,10~95%RH
TEMP .coefficient ±0.03%/℃(0~50℃)
Vibration 10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC Safety standards UL8750+UL1310
Withstand voltage I/P-O/P:1.88KVAC
Isolation resistance I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION FCC Part 15 B
Others Weight 0.95Kg (1.0 version)
Size 1.0 version: 165*92*26mm (L*W*H) / 2.0 version: 165*94.5*40mm (L*W*H)
packing 305*200*150mm / 10PCS/CTN
Notes 1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.

  Compatible Light Type

The 0 10v dimming 12v 30w led power supply update version is NEMA 4X rated.  Protection against windblown dust  and rain. Protection  from splashing water and hose-directed water Corrosion-resistant. Bioluz Led MR16 is suggested.

 0 10v dimming 12v 30w


  Related Products

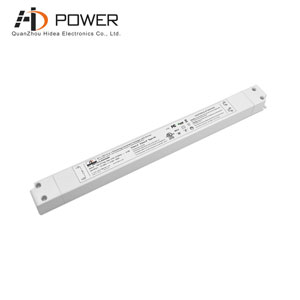

30 w led driverThis super slim 30w led driver is IP20 design for indoors applications. The extensive input range is 100-277VAC. UL safe standard.
