0 10v dimmable led driver constant current led driver 20w 300ma

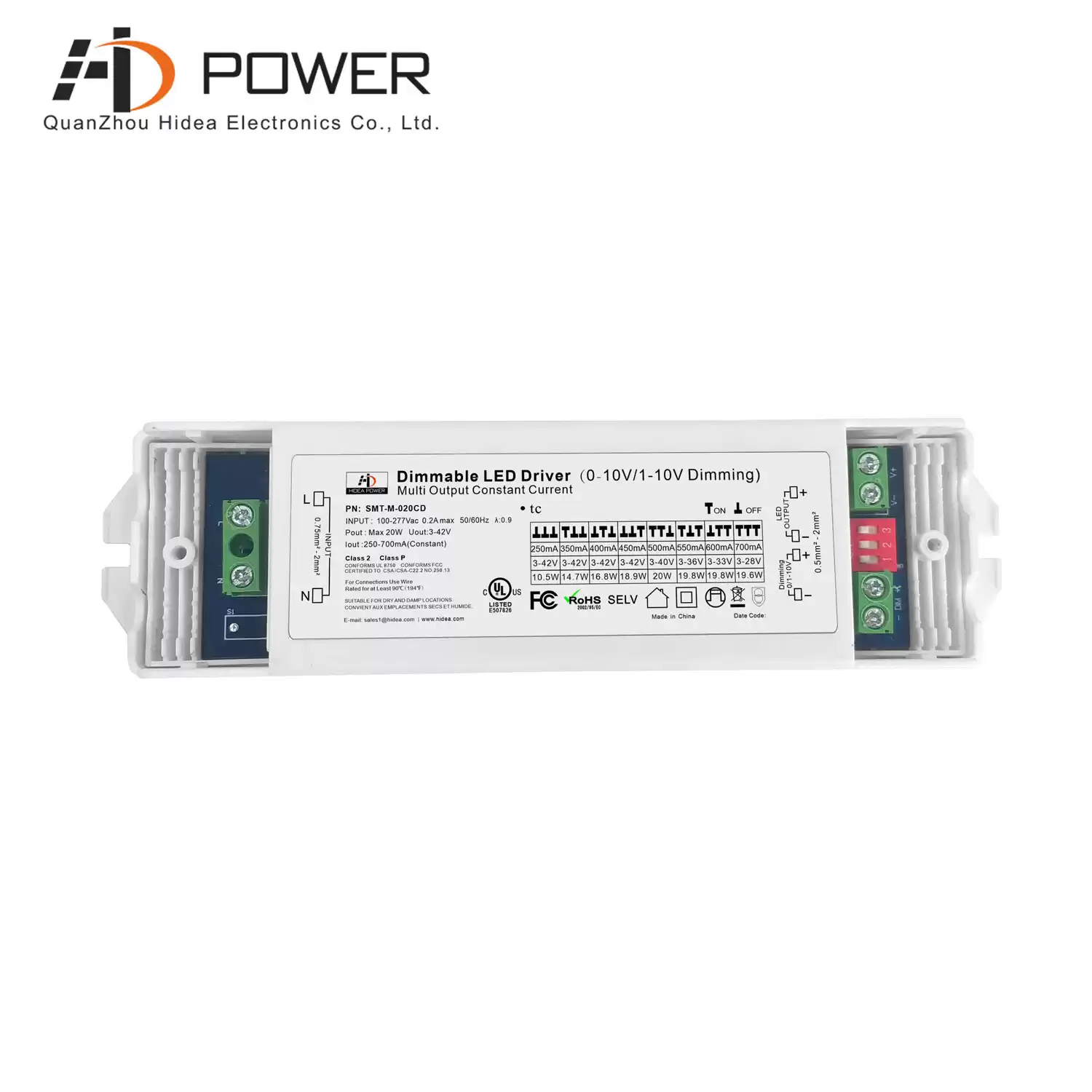

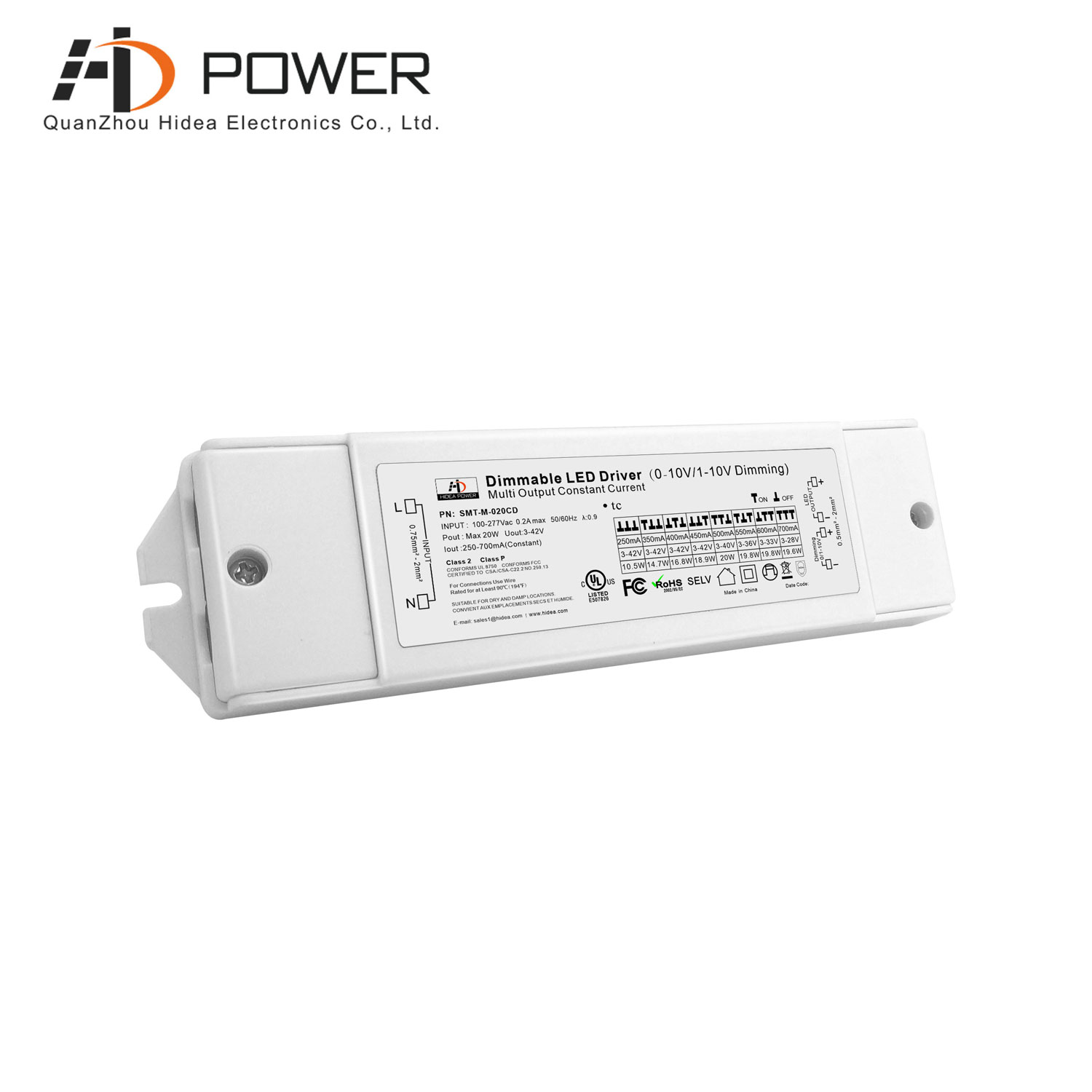

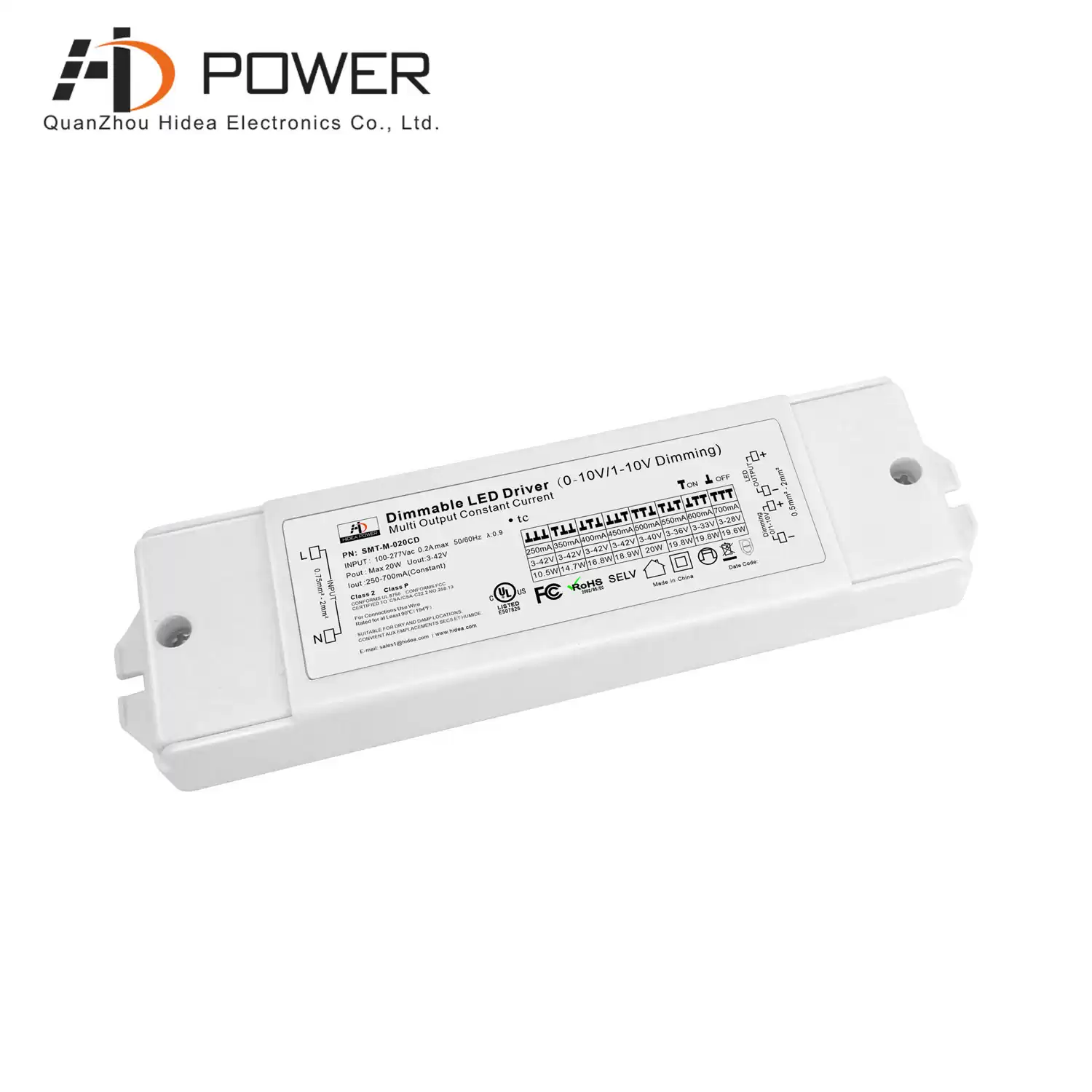

SMT-M-020CD is a 0-10V dimmable 20W LED DRIVER. Hidea power provides a 7-year warranty for this power supply. The quality is guaranteed. This constant current dial code power supply has 8 levels of current adjustable, which can meet Various needs of users, compatible with Access Lighting’s 20W Kitchen LED light

Warranty7 Years
CertificationUL
Weight220g
Size159.5*43*20mm
Output Current250mA-700mA
Shape & SizeStandard Size
Input Voltage100-277Vac
Output Power(Watt)20W
Working ModeMulti-Output Current Driver
Dimming Mode0-10V Dimming

Facebook Twitter Pinterest LinkedIn 分享

Description

Hidea power 0-10v 20W dimmable led driver is a constant current dial-coded led driver, which can achieve smooth and flicker-free dimming from 0.1% to 100%. The dial-code design can meet the needs of users in different situations.

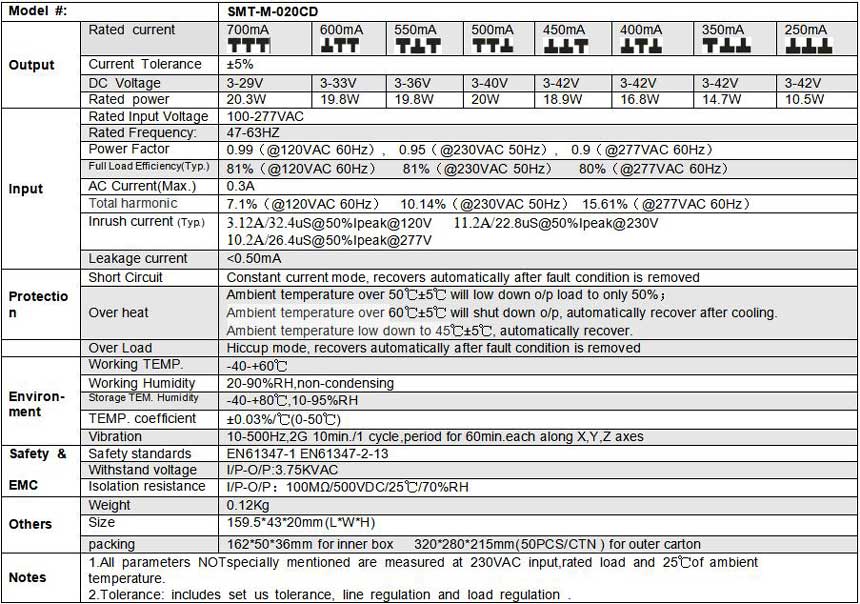

Specification

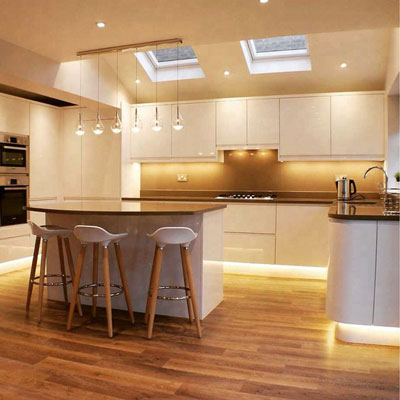

Compatible Light Type

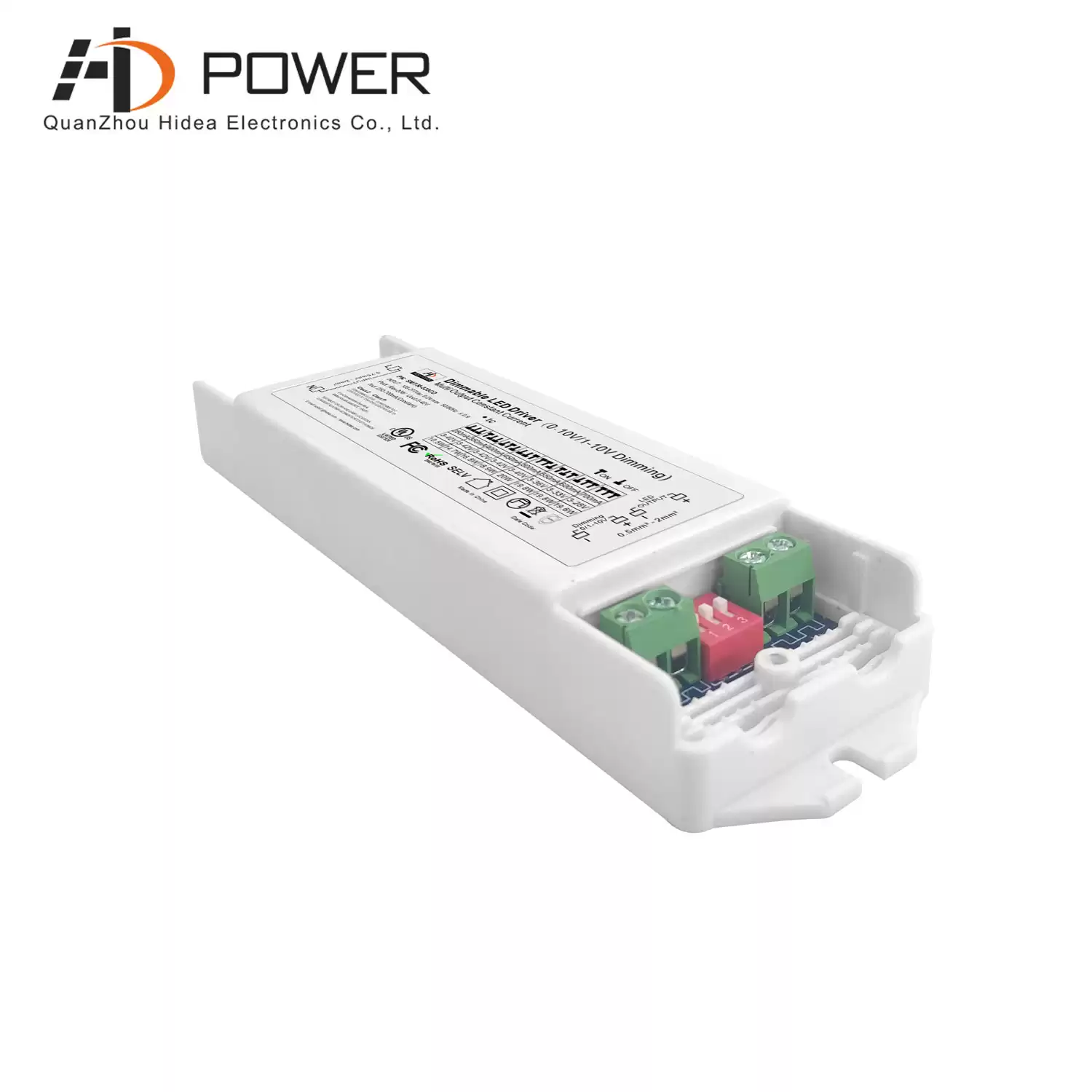

This 0-10v dimming led driver has good compatibility. The design of multi-current dial code enables this power supply to be able to adjust the current in 8 levels. The size is small and easy to install in a small space hidden indoors.

dimmable led driver 0 10v

Related Products

0-10V dimmable 20W led driver, passed ETL CE certification, mainly sold in Europe

Mode：SMT-012-020VD

Dimming Mode : 0-10V dimmable

Output Power : 20W

intput voltage：100-265Vac

Size：140*45*28mm（L*W*H）

Next Product

Prev Product
