Multi current adjustable 10w 0-10v dimmable led driver 100ma-450ma IP20

SMT-M-010CD is Hidea's new 10W constant current DIP LED driver with output current of 100ma-450ma. It has passed UL certification, complete certificates, and has a seven-year warranty. The warranty period is longer than Armacost’s 10W LED driver.

Size135*30*20mm
Output Current100mA-450mA
Shape & SizeStandard Size
Input Voltage100-277Vac
Output Power(Watt)10W
Weight130g
Working ModeMulti-Output Current Driver
Dimming Mode0-10V Dimming
CertificationUL
Warranty7 Years

Facebook Twitter Pinterest LinkedIn 分享

Description

Multi current adjustable 10w 0-10v dimmable led driver 100ma-450ma IP20

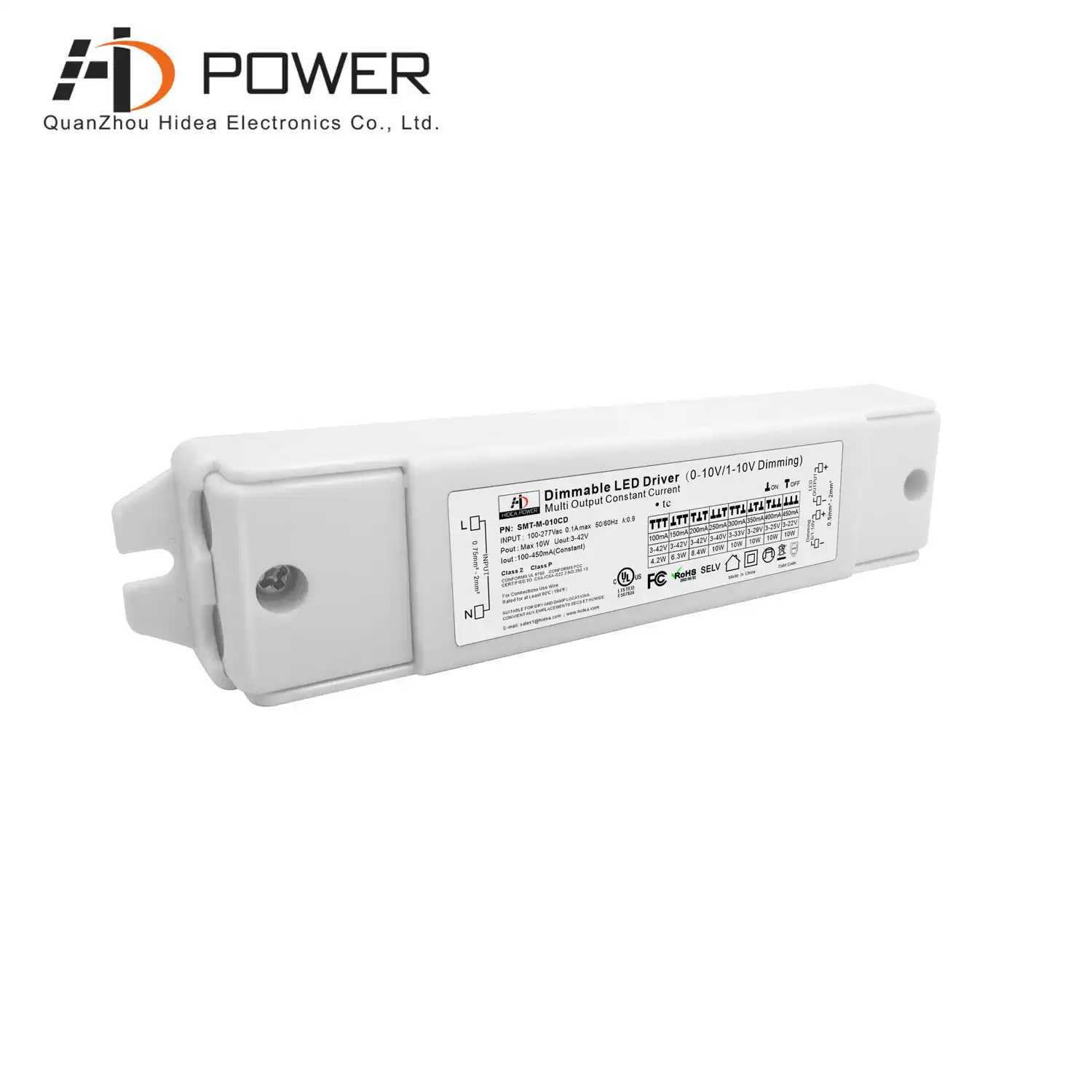

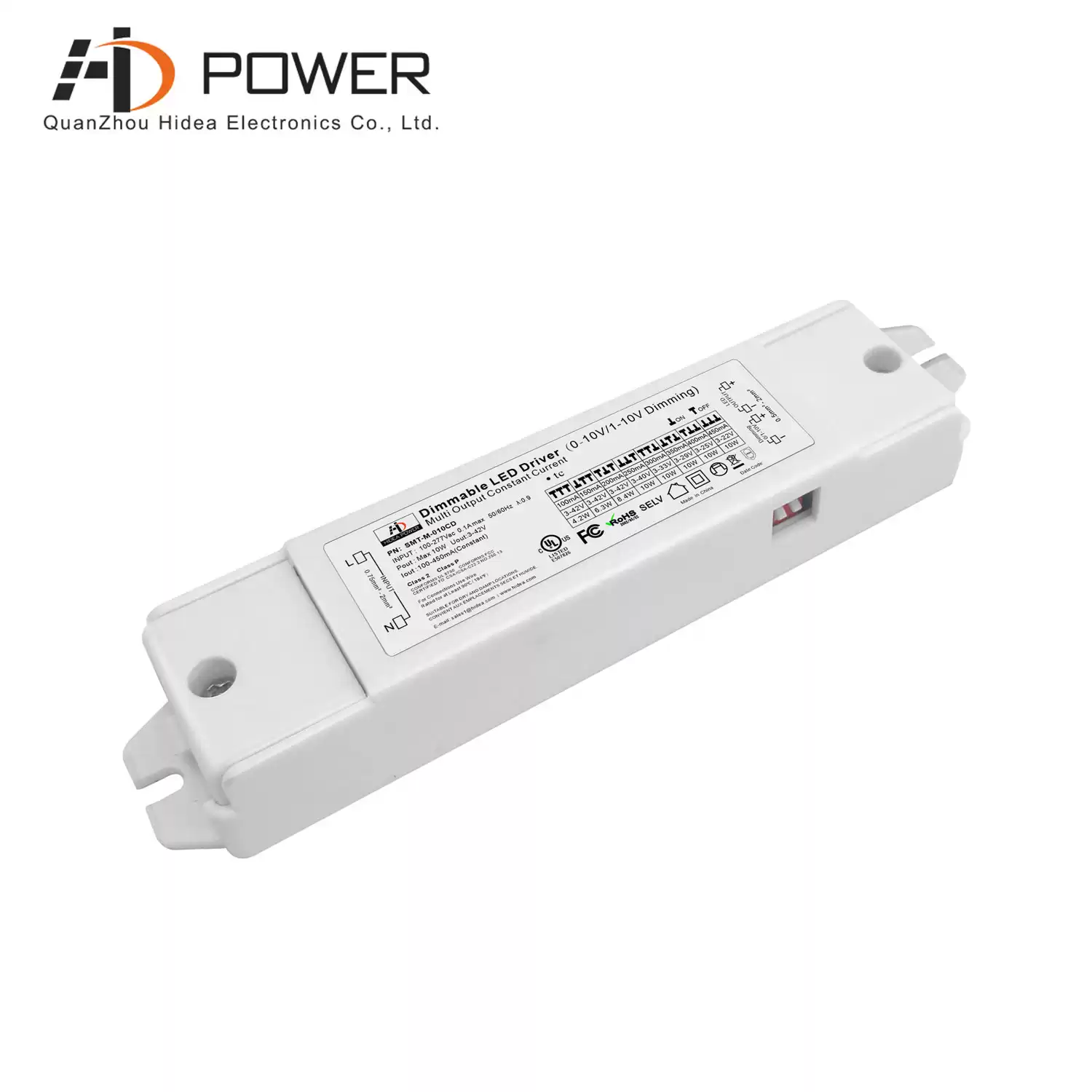

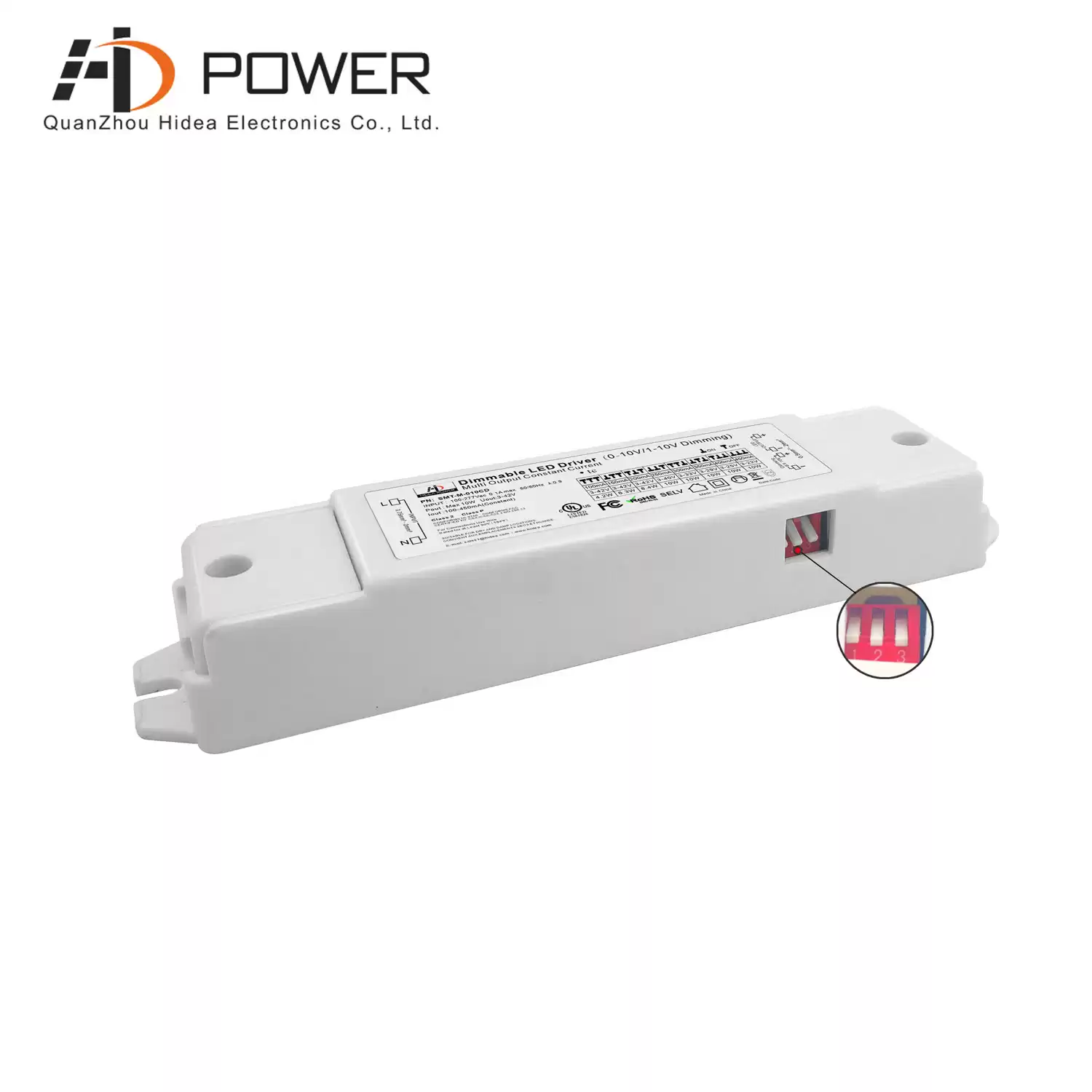

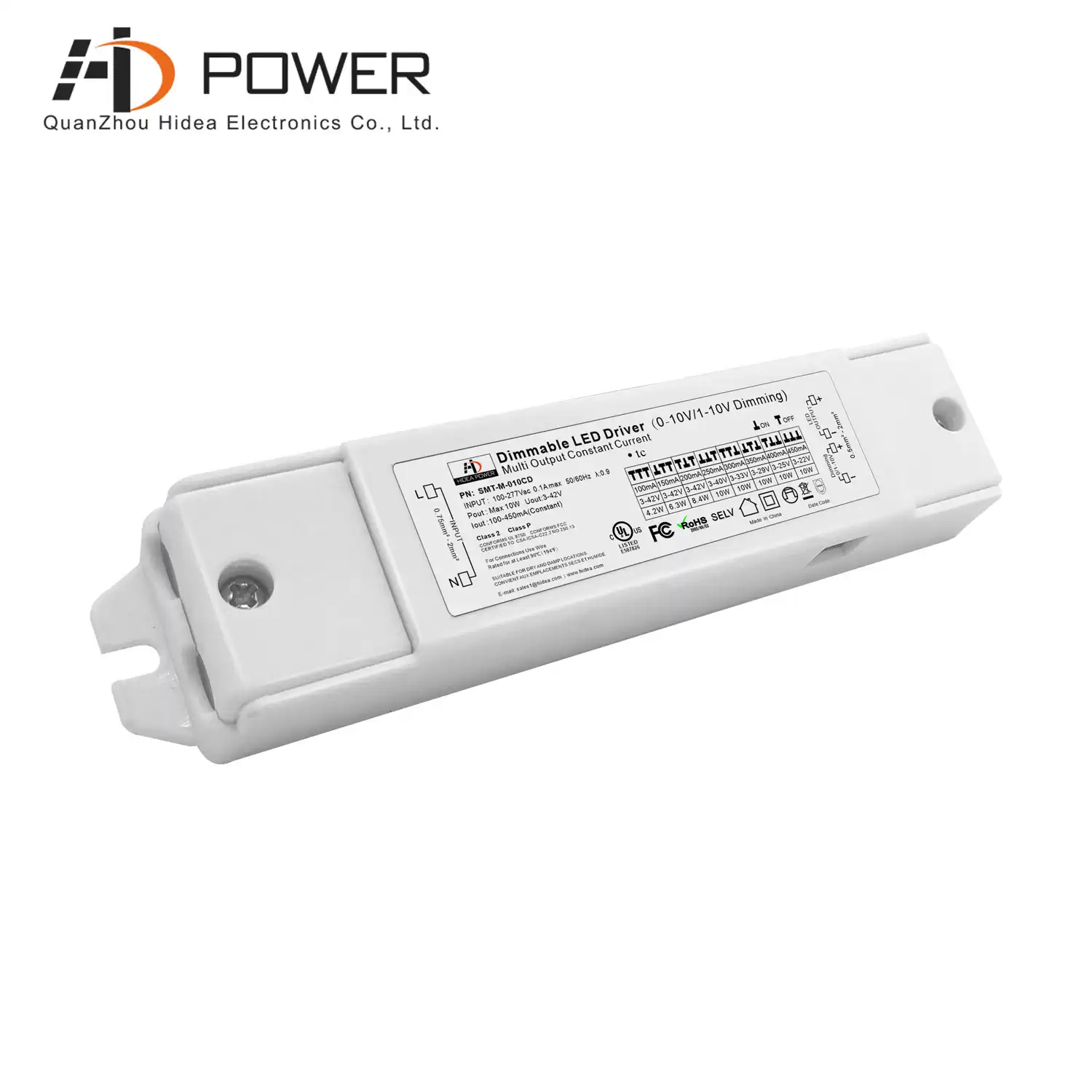

Hideapowertech 0-10v dimming multi-current dialing led driver plastic case, small size, suitable for installation in small indoor places, with removable covers on both sides, easy and safe installation, no exposed wires, input voltage of 100- 277vac.

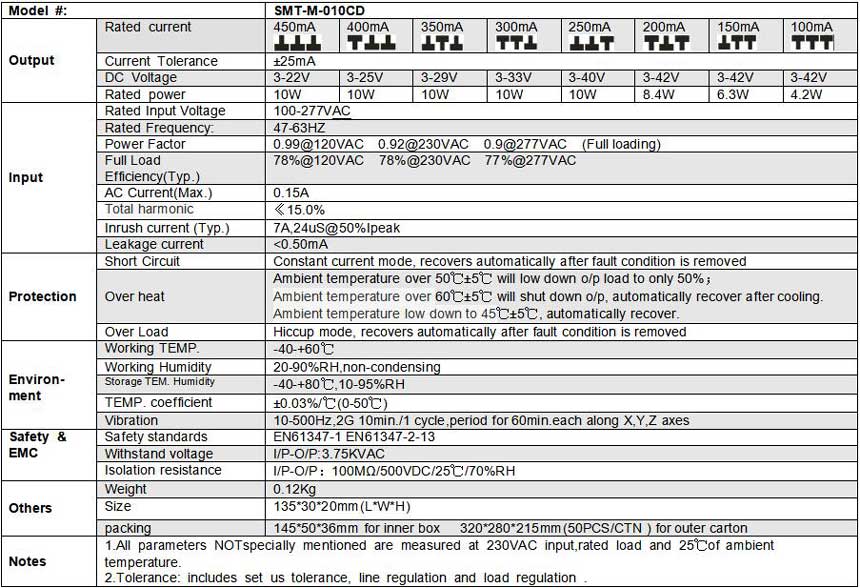

Specification

Compatible Light Type

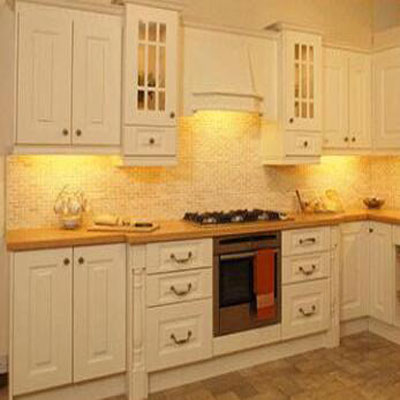

This 0-10v dimming power supply is very suitable for closet light matching connection. The compact body can be well hidden in the cabinet. The input voltage 100-277vac has passed the UL certification. It is mainly sold in North America and has eight current levels. For adjustment.

led driver dimmable 0 10v

Related Products

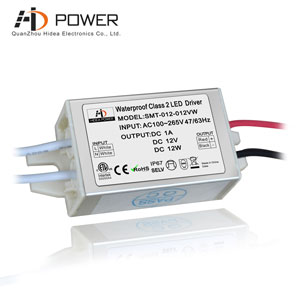

The mini waterproof ip67 led driver is a Class2 constant voltage driver, suitable for narrow places

Mode：SMT-012-012VW

Dimming Mode : Non-dimming

Output Power : 12W

input voltage：100-265Vac

Size：66*29*20MM （L*W*H）
