0-10V PWM Dimmable Constant Voltage LED Driver Electronic Manufacturers

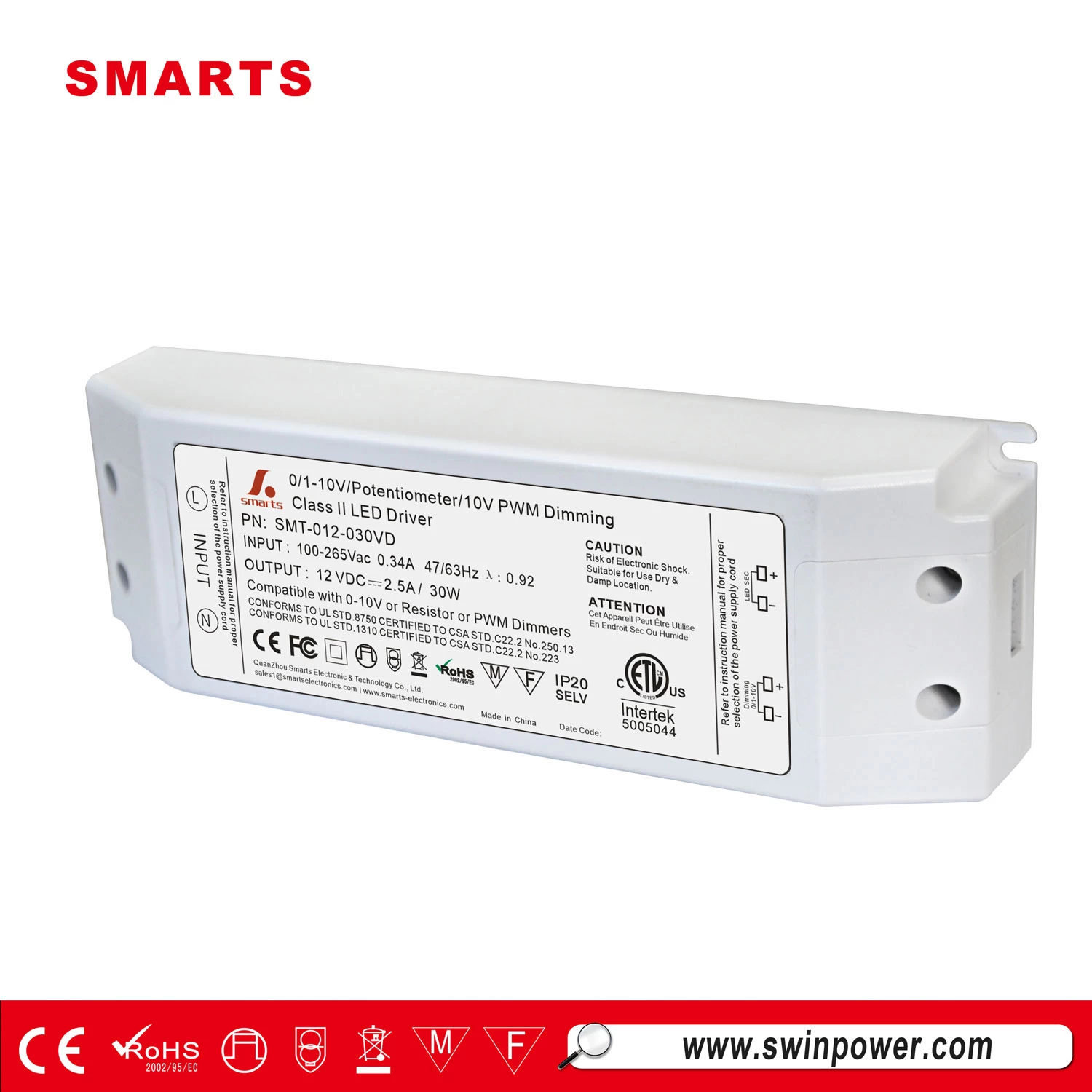

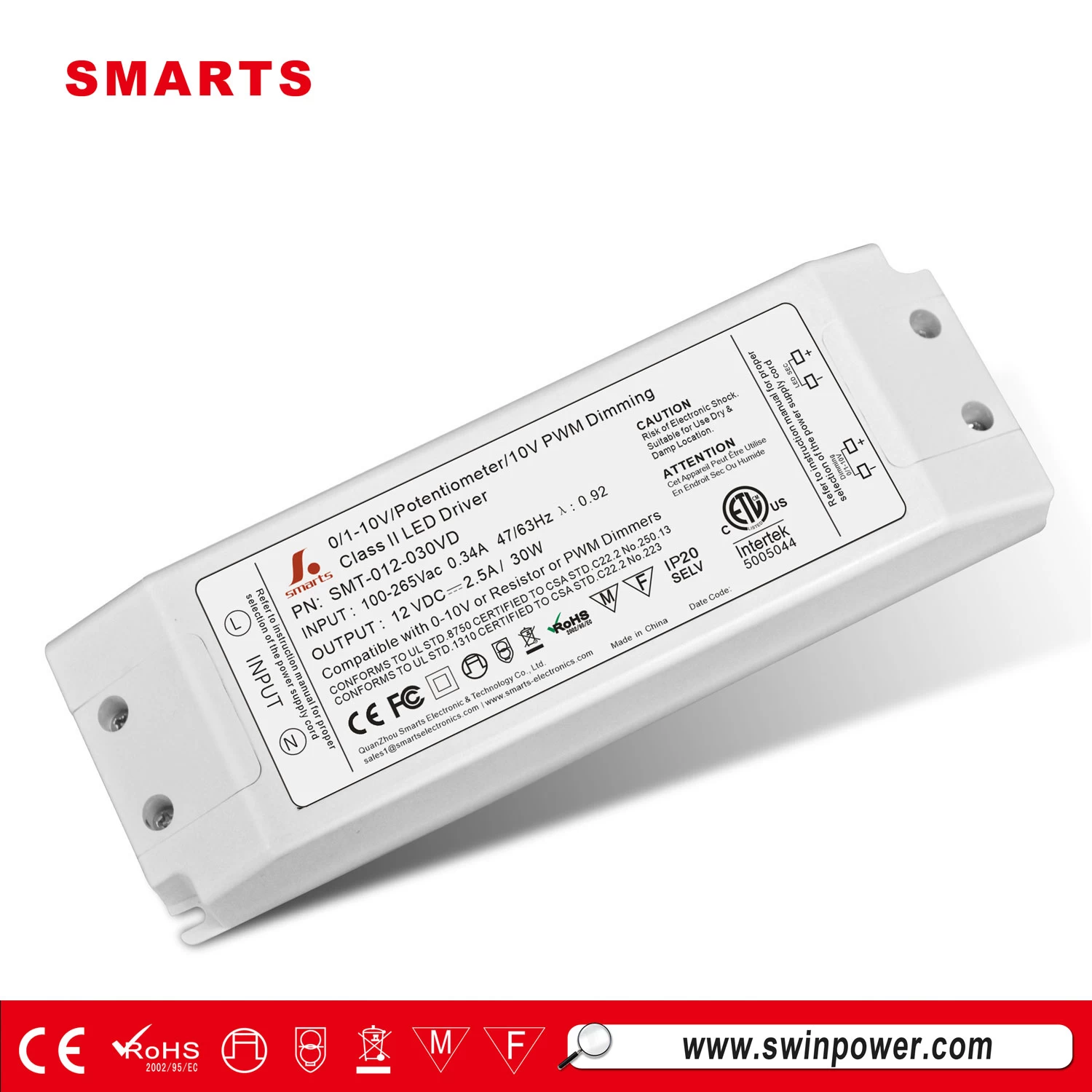

SMT-012-030VD  0-10v led driver will provide up to 30W of output power and a maximum output current of 2.5A. They are designed to be highly efficient and highly reliable. Features include lightning protection, over voltage protection, over current protection, short circuit protection and over temperature protection.

Features for pwm led driver:

• Output constant current
• Range 100-265VAC
• Built-in PFC function, PF> 0.9
• Efficiency> 88%
• Protections:short circuit/over current/over voltage
• Cooling by free air convection
• IP20 design for indoor installation .
• Dimming function:0/1-10V/ 10V PWM or potentiometer.
• Dimming range:0-100%
• Suitable for LED lighting and moving sign applications with dimming
• Compliance to worldwide safety regulations for lighting
• 3 years warranty

What kinds of dimmer Swinpower recommended with our 0-10V dimmable led drivers?

Answer: Our 0-10V dimmable led drivers can match with most of the 0-10V dimmable led drivers in the market.Such as LUTRON /路创,  LEVITON /力维腾.

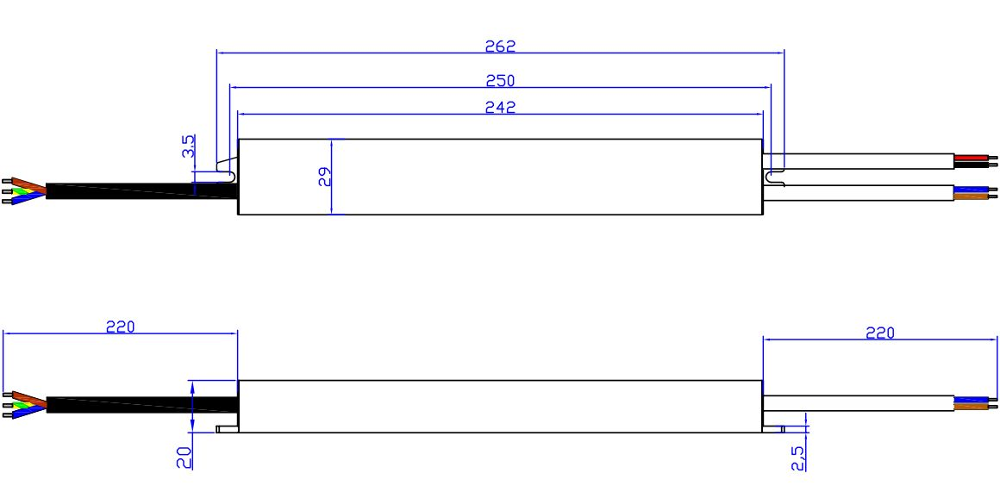

30W dimmable driver Mechanical Specification:

• Input 18AWG*3C,the green/yellow cable connect with (FG),Brown with AC (L),Blue with AC(N)
• Signal 18AWG*2C,Red is(DIM+),Black is(DIM-)
• Output 18AWG*2C,Blown is output(V+),Blue is output(V-)
• Note: Any other requests we can customized.

Dimming Operation for constant voltage led driver:

Built-in 3 in 1 dimming function, I67 rated .Output constant current level can be adjusted through output cable by connection a resistance or 1-10V DC or 10V PWM signal between DIM+ and DIM-
