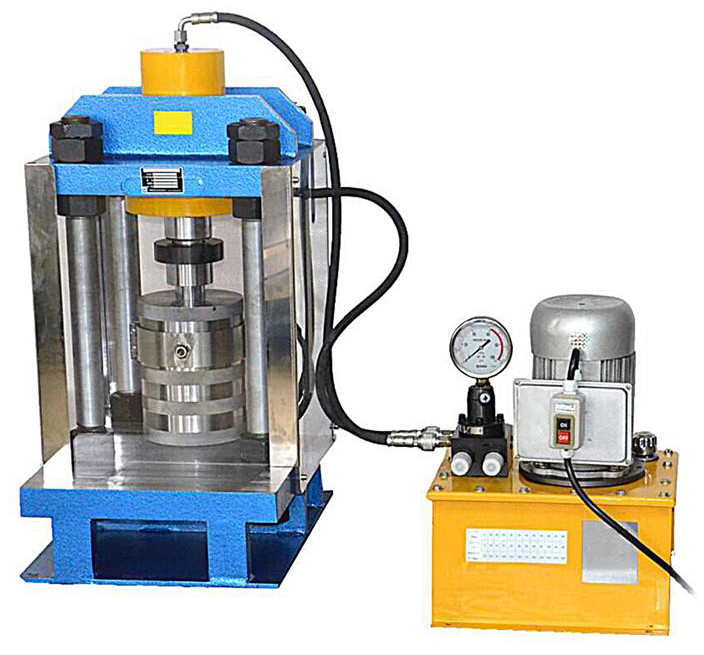

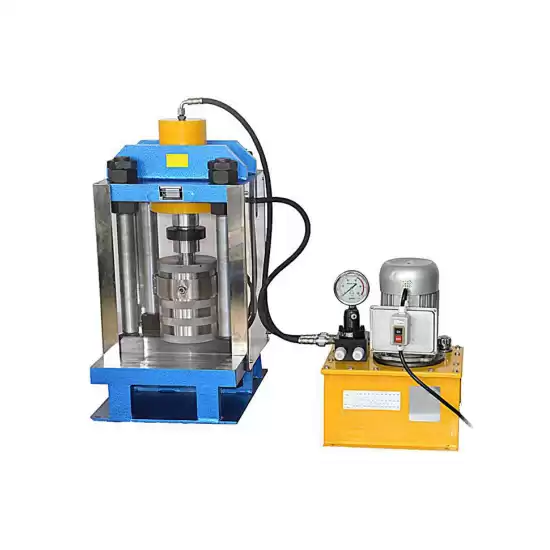

0-50T Lab Electric Hydraulic Cold Isostatic Pressing (CIP) Machine
YLJ-CIP-50A is a electric cold isostatic pressing (CIP) machine operated via electric motor with 50mm ID x 150mm H chamber up to 250 Mpa. It is an excellent tool for preparing much high-density ceramic rod, disk or target. compared to dry die pressing.
Specification
|
Voltage
|
AC 208~240V, 50/60Hz
|
|
Power
|
330W
|
|
Hydraulic Cylinder Pressure
|
0 - 50 T
|
|
Bottom Cylinder (Piston) Traveling Distance
|
50 mm Maximum
|
|
CIP Vessel Size
|
50 I.D. x 150H, mm
|
|
Vessel Pressure
|
· 0 - 250 Mpa
· 1 Mpa / 5 min
|
|
Gauge Displayed Pressure Value (Mpa)
|
|
|
|
|
Actual Force Applied on the Hydraulic Cylinder (Ton)
|
15
|
30
|
50
|
|
CIP Die Pressure (Mpa) vs 5 CM ID Vessel
|
76
|
153
|
255
|
|
Dimension of Working Space
|
D1: 180mm
D2: 210mm
D3: 150mm
H1: 450mm
H2: 400mm
|
|
Dimension of Machine
|
450 (L) X 430(W) X 1020 (H), mm
|
|
Net Weight
|
200 Kg
|
|
Compliance
|
CE Certified
|
|
Warranty
|
Two years limited warranty with lifetime support
|
|
Warning
|
· Never let the press holding the target pressure for more than 8 minutes,
· It's normal that the target pressure decreases a little bit during the pressure holding time, do not press the red nor the green button in this period.
· Pressure must be completely released first, then make sure the hand wheel and the pressure release valve has been tightened before pressing
· Do not raise the bottom cylinder (piston) more than it's maximum traveling distance. (50mm)
|
Packing List:
|
|
Name
|
Qty
|
|
1
|
Main machine (50T Electric hydraulic pressing machine)
|
1 unit
|
|
2
|
CIP pressing die
|
1 set
|
|
3
|
Seal kit
|
1 set
|
|
4
|
Black Rubber Rings O.D 2"
|
5 pcs
|
|
5
|
Holding bar (for carrying the CIP pressing die)
|
2 pc
|
|
6
|
Pressing oil
|
1 bottle
|
|
7
|
Hex-socket wrench (for top pressing die and degassing)
|
1 pc
|
