24T Lab Manual Hydraulic Press



Our Laboratory Hydraulic Pressing Machine has the advantages of small volume, high pressure and high precision of pressure control. It is applied to chemical industry, such as: scientific research, pharmaceutical, teaching, testing, catalysis and so on. In addition, this product can also be used with Fourier infrared spectrometer. Fluorescence spectrometer supporting sample preparation, can replace similar imported products.
It can also be used with Ca-Fe analyzer, infrared spectroscopy (IR) analyzer and X-ray fluorescence (XRF) analyzer to analyze the pressed samples.

1.Small size, light weight,No oil linkage, easy to carry.
2.Digital display pressure gauge 0.1MPa,Pressure control is more accurate.
3.The oil pool is easy to replace oil on the main surface of the host, and the hydraulic oil filter is added to the oil path.
4.Special plunger, special custom sealed structure, good sealing effect, no oil leakage
5.The upper plate adopts six angle screws in electroplating sunk head. It is beautiful and saves space.
6.One main plate structure, oil pool, main board, oil cylinder, on one body, no seal connection.
7.Lengthening spring, the rebound effect is good, not easy to deform, can realize the oil cylinder 30mm return no deformation.

8.The Aluminum Alloy handwheel, beautiful, practical, durable, not easy to damage.


Specification

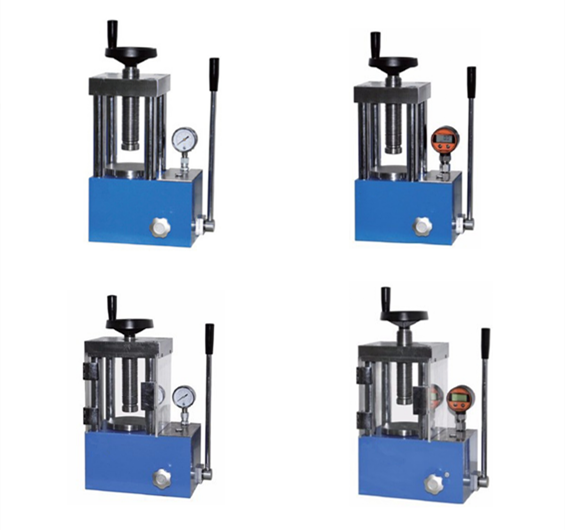

Model

SYP-24B

SYP-24BS

SYP-24BF

SYP-24BFS

Standard package

Analog gauge

Digital gauge

Analog gauge

+Protection cover

Digital gauge+Protection cover

Pointer pressure gauge

Analog type, double scale display of pressure(Ton) and intensity of pressure(Mpa)

Digital gauge

Digital display, 0.00-40.00 MPa, accuracy 0.01 MPa

(Optional)

Pressure range

0-24T(0-34MPa)

Piston diameter

Chrome plated cylinder φ95mm

Piston stroke

30mm(T)

Pressurization mode

Manual pressurization / manual slow pressurization

Pressure stability

≤1MPA/10Min

Overall structure

Integrative structure patented technology, no sealed connection of equipment, reduce oil leakage point

Workstation diameter

φ105mm

Number of columns

4 pillars

Protection cover

Without

With plexiglass protective cover

Working space

80×150mm(W×H)

120×160mm(W×H)

over dimension

245×175×415mm(L×W×H)

305×195×425mm(L×W×H)

Weight

42kg

60kg

NOTE

The work space can be customized to increase the height

Product Images

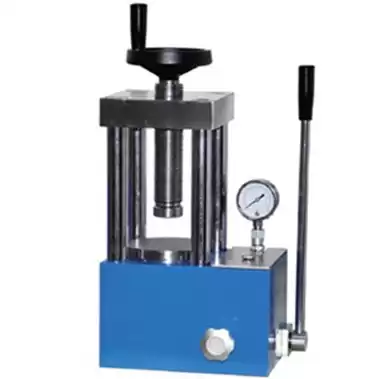

hydraulic press

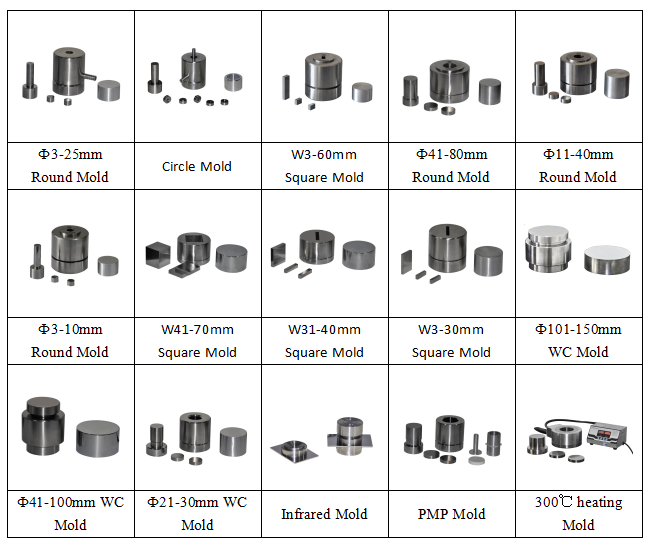

Hydraulic press mold

hydraulic press mold
