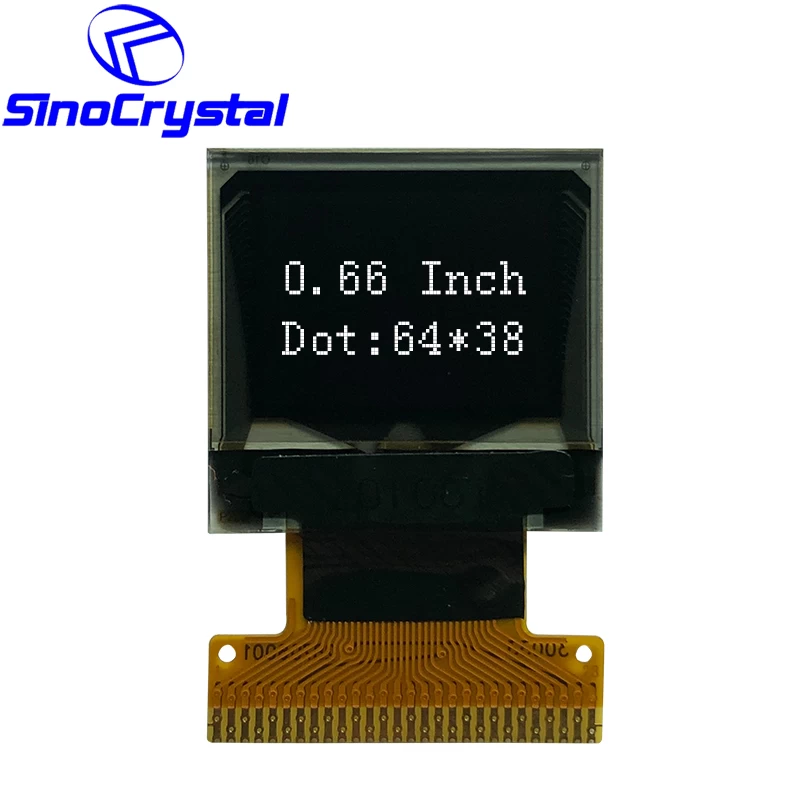

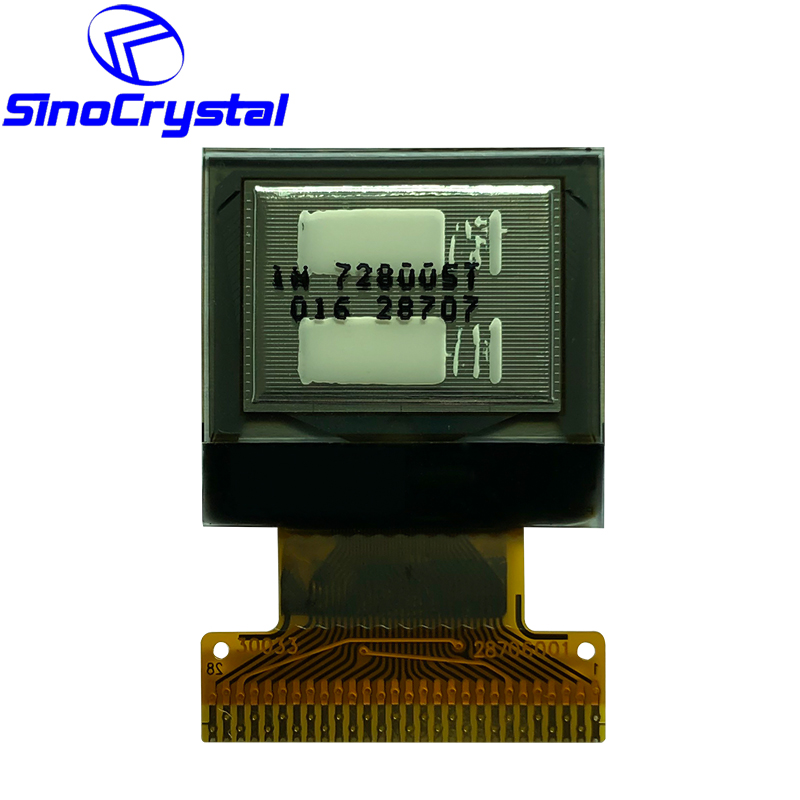

0.66'' OLED Graphic LCD Display with 64×48 Resolution SSD1306BZ IC, 28PIN

SCE066001-V01 is a OLED Display with COG Type, 72×40 Resolution, SSD1306BZ IC, 6800/8080 interface 4 wire serial interface I2C, 28PIN

  • IC Part No.SSD1306BZ
  • Interface6800/8080 Interface/I2C/ 4-wire SPI
  • Active Area (mm)13.42×10.06
  • Viewing Area (mm)15.42×12.06
  • Outline Dimension (mm)18.46×18.1×1.21
  • Resolution64×48
  • ColorMonochrome (White)
  • PIN28
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享


Basic Information

  • Display Color:                 WHITE
  • Dot Matrix:                      64×48
  • Drive IC:                         SSD1306BZ
  • Viewing Angle:               160°
  • Aperture rate:                 81.8%
  • Interface:                        6800/8080 interface, 4 wire serial interface, I2C
  • Outline Dimension:        18.46(W)x18.1(H)x1.21(D)
  • View area:                      10.196 (W) x 6.18(H)
  • PIN:                                28
  • FPC Type:                      Soldering




General Specification


ITEM SPECIFICATIONS UNIT
 MODULE SIZE 18.46(W)x18.1(H)x1.21(D) mm
 VIEWING AREA 15.42 (W) x 12.06(H) mm
 ACTIVE AREA 13.42 (W) x10.06(H) mm
 DOT SIZE 0.19(W) x0.19(H) mm
 DOT PITCH 0.21(W) x0.21 (H) mm
 ASSY.TYPE COG ---
 WEIGHT TBD



Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 NC(GND) P It should be connected to external ground.
2 C2P
C1P/C1N-Pin for charge pump capacitor.
C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
3 C2N
4 C1P I
5 C1N
6 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used.
It must be float when charge pump is not used.
7 VSS P Ground pin. It must be connected to external ground.
8 VDD P Power pin for logic circuit. It must be connected to external source.
9 BS1
Interface selection pins.

10 BS2
11 CS# I Chip Select input pin. Active "L"
12 RES# I Hardware reset input pin. Active "L".
13 D/C# I This is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data.
When the pin is pulled LOW, the data at D[7:0] is command.
In I2C mode, this pin acts as SA0 for slave address section.
When 3-wire serial interface is selected, this pin must be connected to VSS
14 R/W# I This is read/write control input pin.
8080: data write enable; 6800: read/write select pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
15 E/RD# I This is read/write control input pin.
8080: data read enable; 6800: read/write enable pin.
When serial or I2C interface is selected, this pin must be connected to VSS.
16 D0 I/O These are 8-bit bi-directional data bus to be connected to microprocessor's Data bus.
When serial interface mode is selected, D2 should be kept NC, D1 will be the serial data input: SDIN, D0 will be the serial clock input: SCLK.
When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0 is the serial clock input, SCL.
17 D1
18 D2
19 D3
20 D4
21 D5
22 D6
23 D7
24 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
25 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
26 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
27 VLSS P This is an analog ground pin. It should be connected to VSS externally.
28 NC(GND) P It should be connected to external ground.
