0.69'' OLED Graphic LCD Display with 96×16 Resolution SSD1306BZ IC, 14PIN

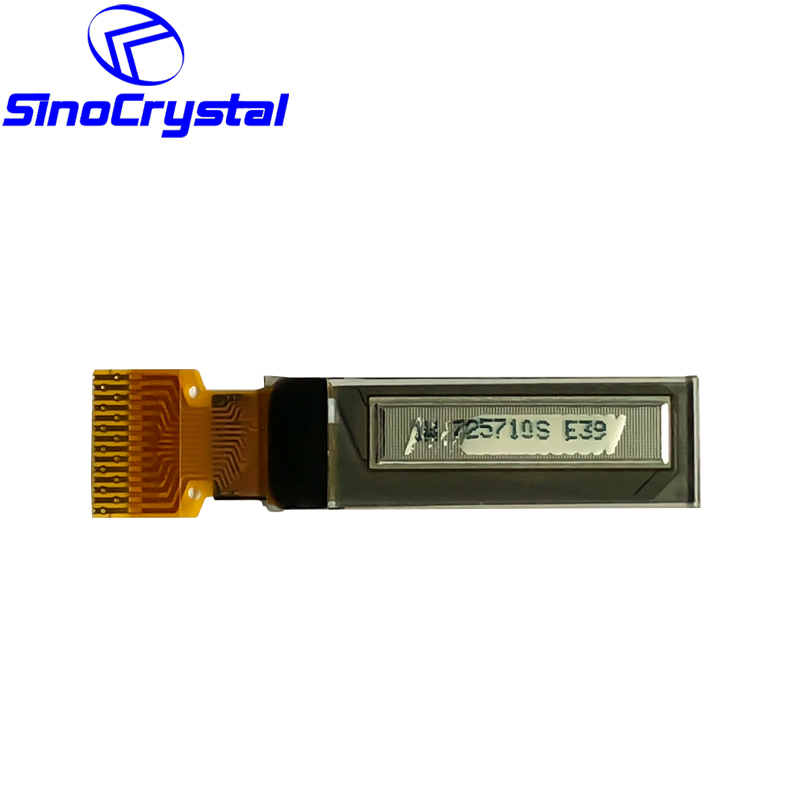

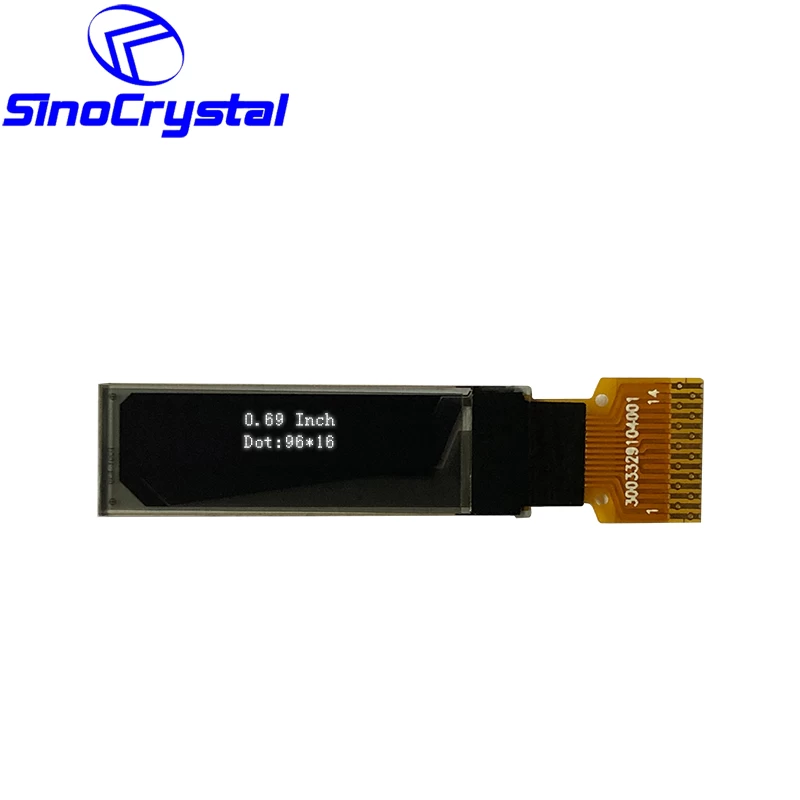

SCE069001-V01 is a OLED Display with COG Type, 96×16 Resolution, SSD1306BZ IC, interface I2C, 14PIN



  • ColorMonochrome (White)
  • IC Part No.SSD1306BZ
  • InterfaceI2C
  • Active Area (mm)17.26×3.18
  • Viewing Area (mm)18.86x4.78
  • Outline Dimension (mm)26.3×8×1.227
  • Resolution96×16
  • PIN14
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


  • Display Color:                 WHITE
  • Dot Matrix:                      96×16
  • Drive IC:                         SSD1306BZ
  • Viewing Angle:               160°
  • Aperture rate:                 80%
  • Interface:                        I2C
  • Outline Dimension:        26.3(W)x8.0(H)x1.227(D)
  • View area:                      18.86 (W) x 4.78(H)
  • PIN:                                14
  • FPC Type:                      Soldering




General Specification



ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 26.3(W)x8.0(H)x1.227(D) mm
  VIEWING AREA 18.86 (W) x 4.78(H) mm
  ACTIVE AREA 17.26 (W) x3.18(H) mm
  DOT SIZE 0.16(W) x0.18(H) mm
  DOT PITCH 0.18(W) x0.20 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD



Interface Definition



PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 C2P
C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor.
2 C2N
Connect to each other with a capacitor. They must be floated when the
3 C1P I Charge pump not use.
4 C1N

5 VDDB P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used. It must be float when charge pump is not used.
6 NC I Reserved pin. It should be kept NC.
7 VSS P Ground pin. It must be connected to external ground.
8 VDD P Power pin for logic circuit. It must be connected to external source.
9 RES# I Hardware reset input pin. Active "L".
10 SCL I I2C interface clock wire
11 SDA I I2C interface data wire
12 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
13 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
14 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
