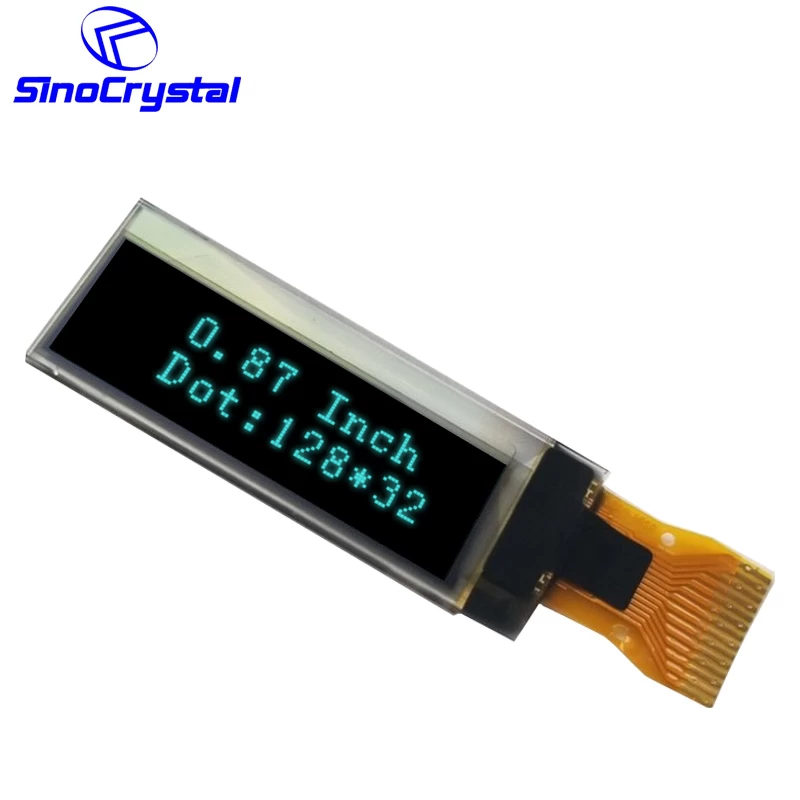

0.87'' OLED Graphic Display with 128×32 Resolution SSD1316Z IC,15PIN, 4-wire SPI interface

SCE087001-V01 is a OLED Display with COG Type, 128×32 Resolution, SSD1306Z IC, 4-wire SPI interface, 15PIN

  • Resolution128×32
  • Outline Dimension (mm)29.00x8.7x1.22
  • Viewing Area (mm)22.856x6.824
  • Active Area (mm)21.356×5.324
  • Interface4-wire SPI
  • IC Part No.SSD1316Z
  • ColorMonochrome (White)
  • PIN15
  • FPC typeConnector
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               WHITE
Dot Matrix:                    128×32
Drive IC:                        SSD1306Z
Viewing Angle:              160°
Aperture rate:                77%
Interface:                       4 wire serial interface
Outline Dimension:        29.0(W)x8.7(H)x1.22(D)
View area:                      22.856 (W) x 6.824(H)
PIN:                                15
FPC Type:                      Connector


General Specification


ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 29.0(W)x8.7(H)x1.22(D) mm
  VIEWING AREA 22.856 (W) x 6.824(H) mm
  ACTIVE AREA 21.356 (W) x5.324(H) mm
  DOT SIZE 0.147(W) x0.147(H) mm
  DOT PITCH 0.167(W) x0.167 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD




Interface Definition


PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 C2N
C1P/C1N-Pin for charge pump capacitor. C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
2 C2P
3 C1P O
4 C1N
5 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used.
It must be floated when charge pump is not used.
6 VSS P Ground pin. It must be connected to external ground.
7 VDD P Power pin for logic circuit. It must be connected to external source.
8 CS# I Chip Select input pin. Active "L"
9 RES# I Hardware reset input pin. Active "L".
10 D/C# I This pin is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data. When the pin is pulled LOW, the data at D[7:0] is command.
11 SCLK I/O Serial interface clock wire
12 SDIN I/O Serial interface data wire
13 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. When external IREF is used, A resistor should be connected between this pin and VSS .
Set the current at 10 uA maximum.
14 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
15 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
