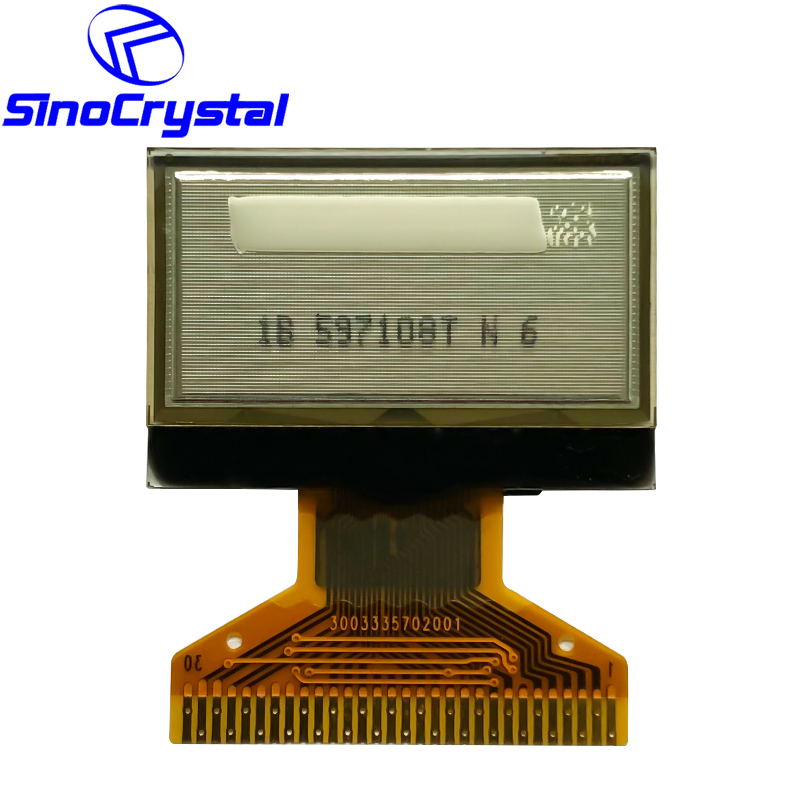

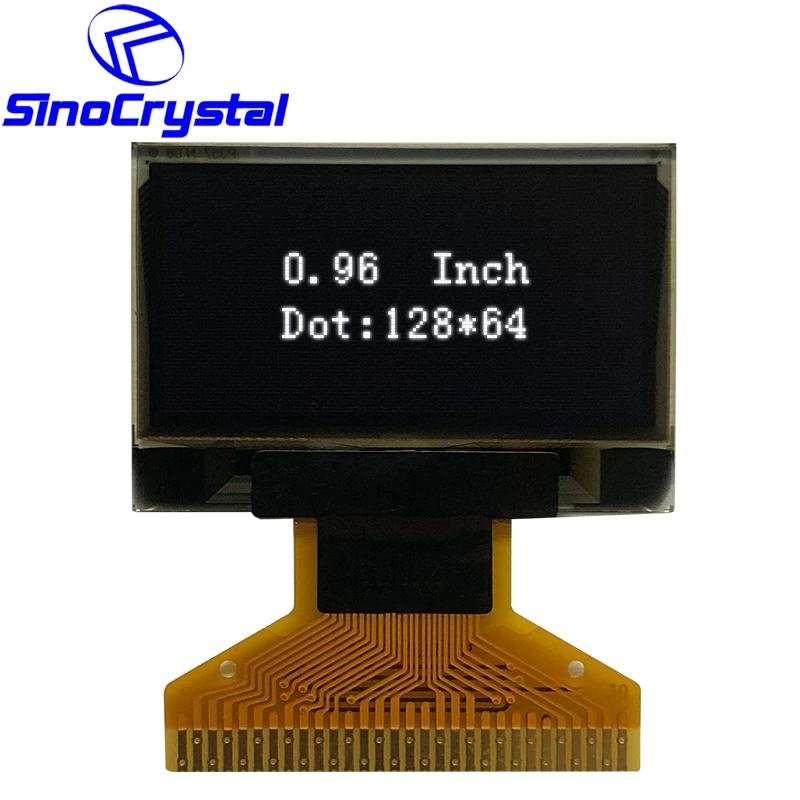

0.96'' 128×64 OLED with SSD1315Z IC, 30PIN, 3/4wire serial interface, I2C

SCE096009-V01 is a OLED Display with COG Type, 128×64 Resolution, SSD1315Z IC, 3/4wire serial interface, I2C, 30PIN

  • Resolution128×64
  • Outline Dimension (mm)24.74x16.90x1.42
  • Viewing Area (mm)22.74x11.86
  • Active Area (mm)21.74x10.86
  • InterfaceI2C// 3/4-wire SPI
  • IC Part No.SSD1315Z
  • ColorMonochrome (White)
  • PIN30
  • FPC typeSoldering
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Display Color:               White
Dot Matrix:                    128×64
Drive IC:                        SSD1315Z
Viewing Angle:              160°
Aperture rate:                78%
Interface:                       3/4wire serial interface, I2C
Outline Dimension:        24.74(W)x16.9(H)x1.42(D)
View area:                      22.74 (W) x 11.86(H)
PIN:                                30
FPC Type:                      Soldering

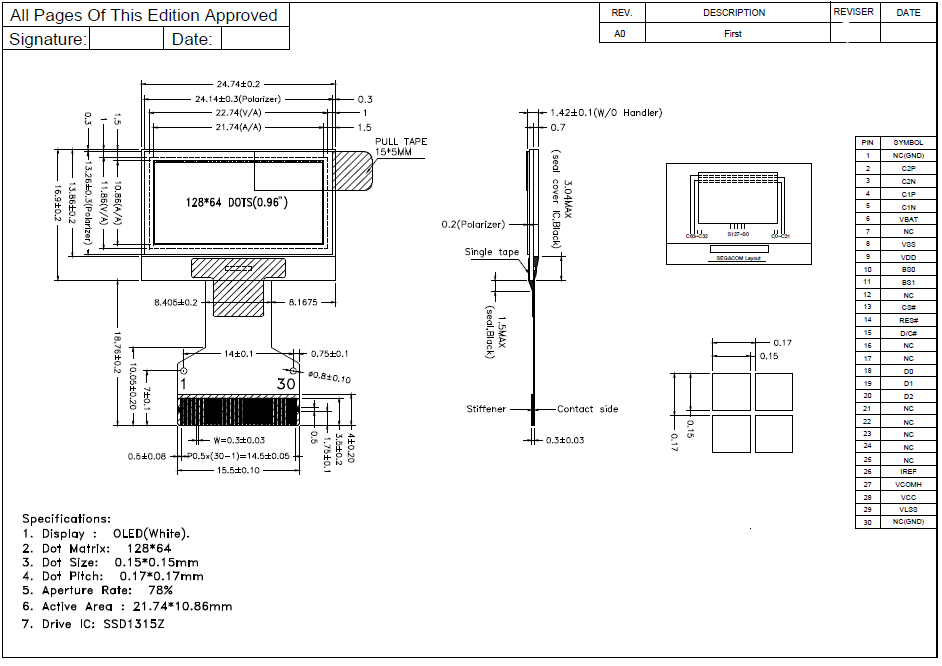

Drawing





General Specification


ITEM SPECIFICATIONS  UNIT
  MODULE SIZE 24.74(W)x16.9(H)x1.42(D) mm
  VIEWING AREA 22.74 (W) x 11.86(H) mm
  ACTIVE AREA 21.74 (W) x10.86(H) mm
  DOT SIZE 0.15(W) x0.15(H) mm
  DOT PITCH 0.17(W) x0.17 (H) mm
  ASSY.TYPE COG ---
  WEIGHT TBD





Interface Definition



PIN NO. SYMBOL TYPE FUNCTION DESCRIPTIONS
1 NC(GND) P It should be connected to external ground.
2 C2P
C1P/C1N-Pin for charge pump capacitor.
C2P/C2N-Pin for charge pump capacitor.
Connect to each other with a capacitor. They must be floated when the
Charge pump not use.
3 C2N
4 C1P I
5 C1N
6 VBAT P Power supply for charge pump regulator circuit.
It must be connected to external source when charge pump is used. It must be float when charge pump is not used.
7 NC
NC
8 VSS P Ground pin. It must be connected to external ground.
9 VDD P Power pin for logic circuit. It must be connected to external source.

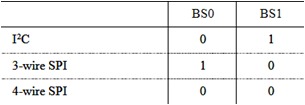

10 BS0 I

Interface selection pins.


11 BS1
12 NC
NC.
13 CS# I Chip Select input pin. Active "L"
14 RES# I Hardware reset input pin. Active "L".
15 D/C# I This is Data/Command control pin.
When the pin is pulled HIGH, the data at D[7:0]  is data. When the pin is pulled LOW, the data at D[7:0] is command. In I2C mode, this pin acts as SA0 for slave address section.
When 3-wire serial interface is selected, this pin must be connected to VSS
16 NC
NC.
17 NC
NC.
18 D0 I/O When serial interface mode is selected,D2 should be either tied LOW or tied together with D1 as the serial data input: SDIN, and D0 will be the serial clock input: SCLK.
When I2C mode is selected, D2, D1 should be tied together and serve as SDA and D0
is the serial clock input, SCL.
19 D1
20 D2
22 NC
NC.
23 NC
NC.
24 NC
NC.
25 NC
NC.
26 IREF I Current reference for brightness adjustment.
This is segment output current reference pin. A resistor should be connected between this pin and VSS .Set the current at 12.5 uA maximum.
27 VCOMH O COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
28 VCC P Power supply for OLED driving voltage. A capacitor should be connected between this pin and VSS, when charge pump is used.
It must be connected to external source when charge pump is not used.
29 VLSS P This is an analog ground pin. It should be connected to VSS externally.
30 NC(GND) P It should be connected to external ground.
