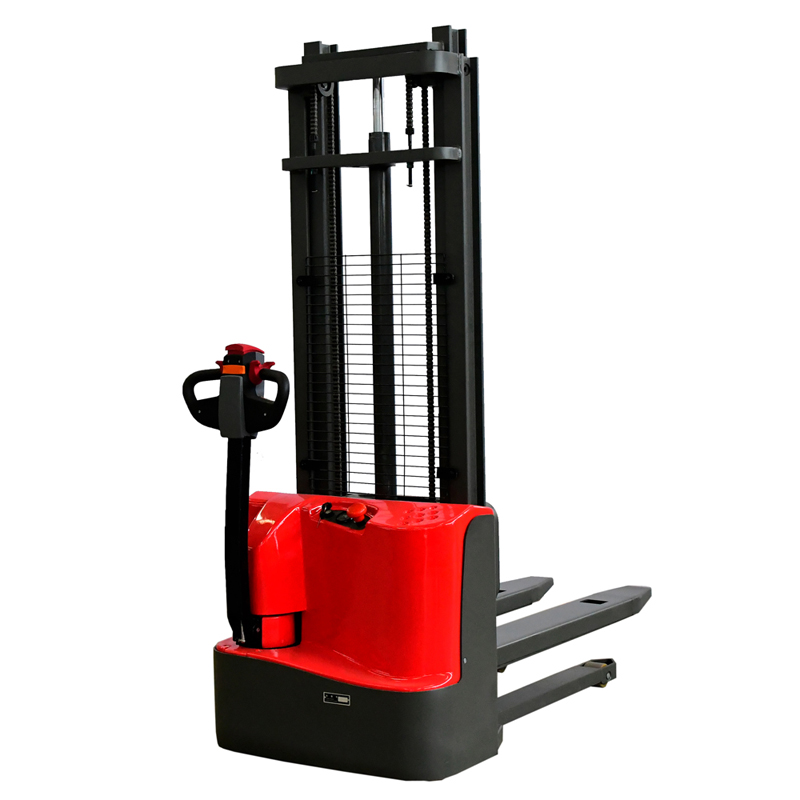

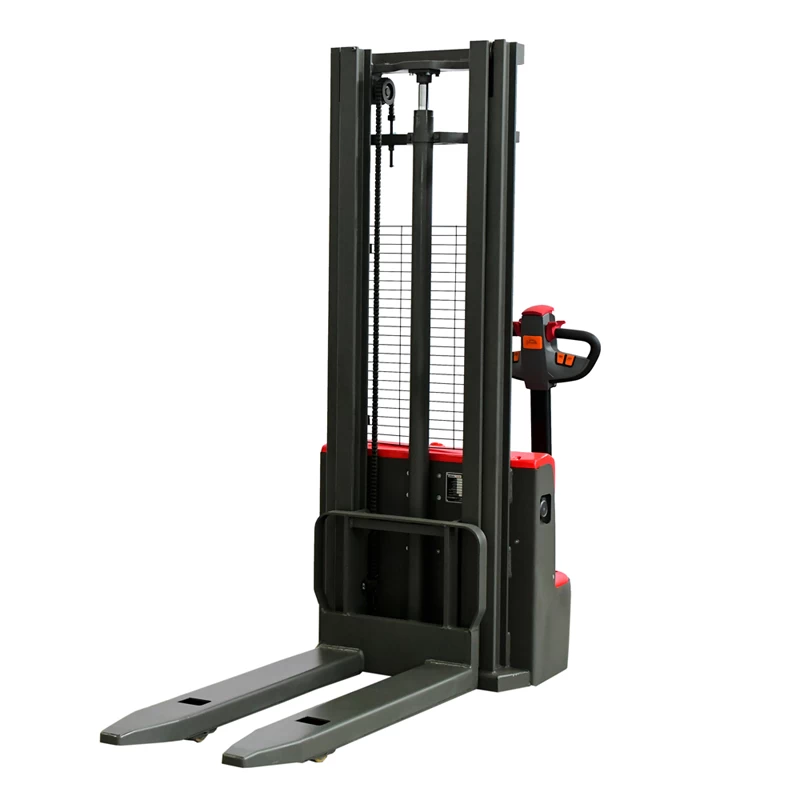

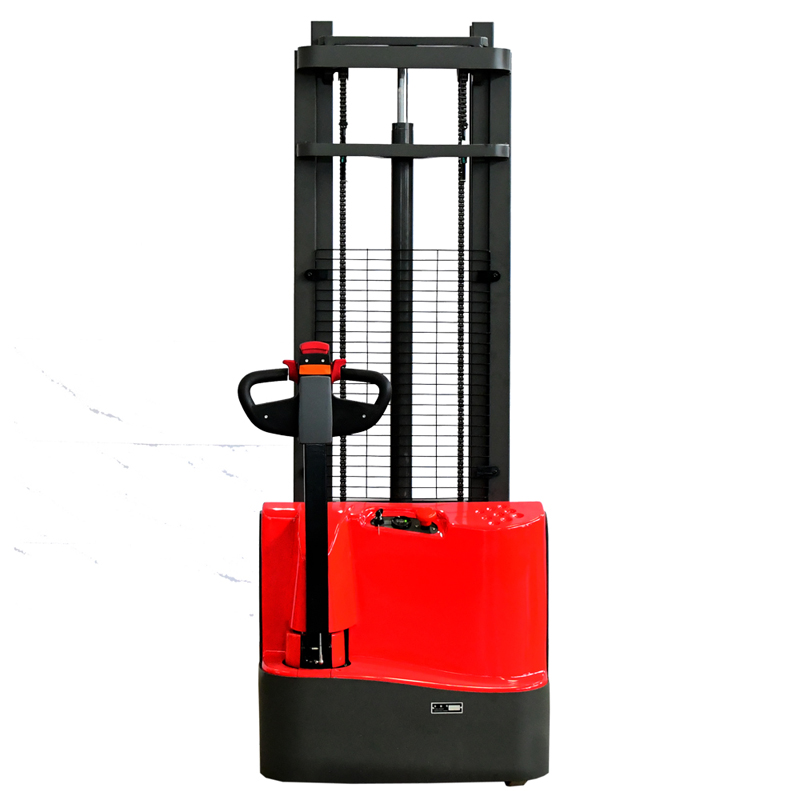

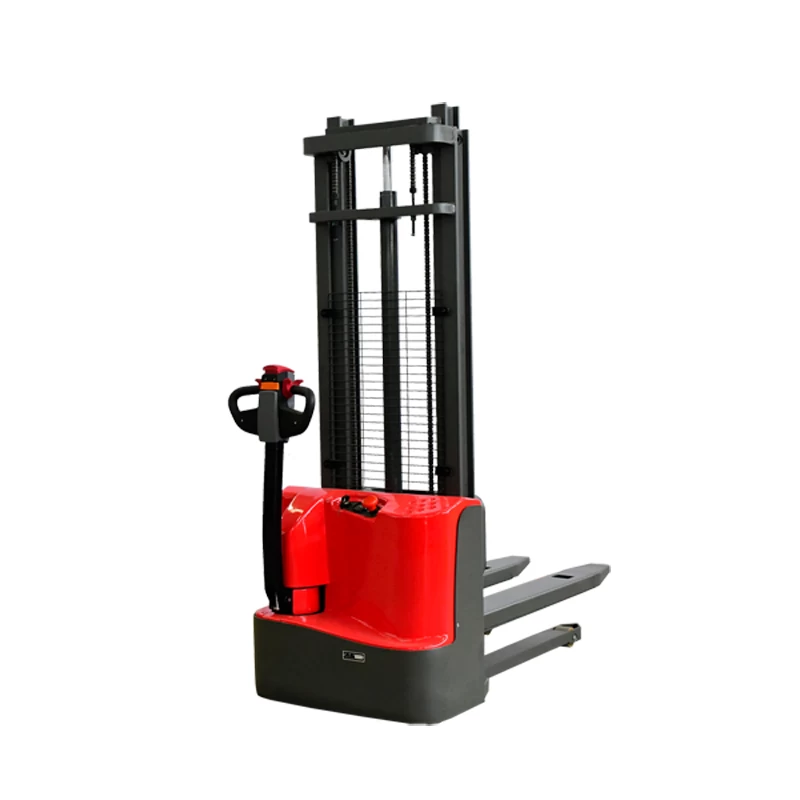

1.0-1.5T Electric Walkie Stacker with MAX lifting height 3000mm
Main Features:
1.Electric walkie stacker use DC permanent magnet drive motor which provide strong power and excellent performance;
2.Maintenance-free battery;
3.Wide-view gantry design to improve work efficiency;
4.The whole forklift design is more reasonable with low center of gravity, small size and low self-weight.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
|
Model
|
|
TBD10
|
TBD15
|
|
Power Type
|
|
Battery
|
Battery
|
|
Operation Type
|
|
Walkie
|
Walkie
|
|
Service weight(incl. battery)
|
kg
|
560
|
560
|
|
Rated Capacity
|
Q(kg)
|
1000
|
1500
|
|
Load Center
|
C(mm)
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
2500
|
2500
|
|
Forks size
|
l/e/s(mm)
|
1150/160/60
|
1150/160/60
|
|
Front Overhang
|
x(mm)
|
|
|
|
Turning radius
|
Wa(mm)
|
1440
|
1440
|
|
Max. climbing ability
|
%(tanθ )
|
3/6
|
3/6
|
|
Driving speed(load/unload)
|
km/h
|
3.5/4
|
3.5/3.6
|
|
Lifting speed(load/unload)
|
mm/s
|
110/180
|
73/107
|
|
Lowering speed(load/unload)
|
mm/s
|
130/160
|
85/115
|
Products Feature:
performance
●CURTIS controller makes the control performance is excellent, efficient and stable;
●It adopts permanent magnet travel motor with excellent performance and low heat generation.
Comfort
●Compact design, small size, space saving, and smooth passage in a small passage;
●It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand;
safety
●It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving;
●When the fork is less than a certain height from the ground, it will automatically slow down the speed and effectively protect the cargo.
maintenance
● Standard maintenance-free battery, no maintenance is required;
●The rear cover can be completely opened. And the components are clear at a glance which makes the maintenance of the whole machine very convenient.
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric walkie stacker factory?
A1: Yes, we are the professional manufacturer of electric walkie stacker for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
