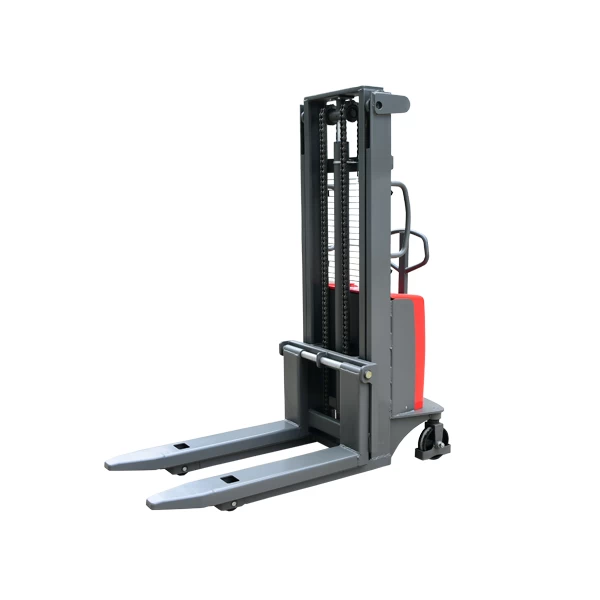

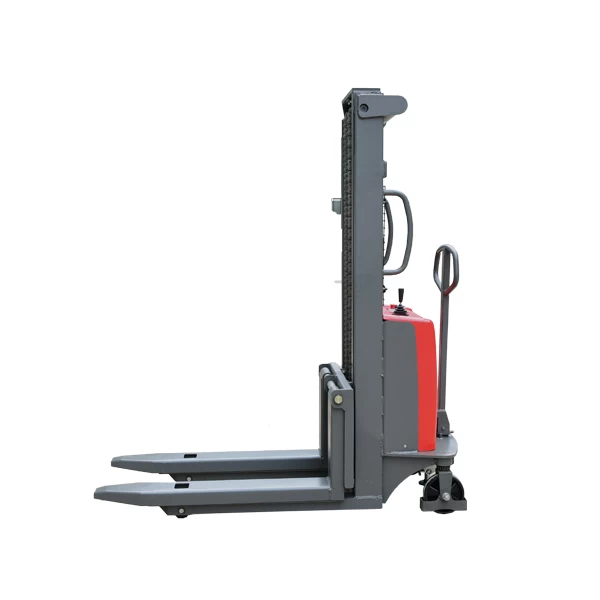

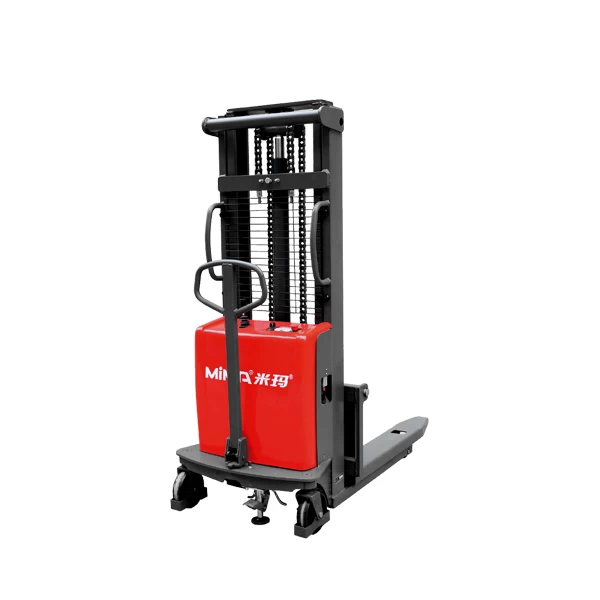

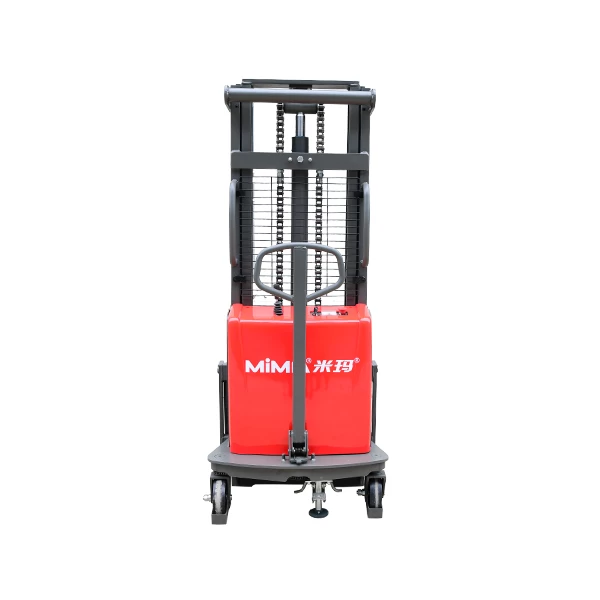

Semi-electric Walkie Stacker for 1.0-2.0T
Main Features:
1.The streamline shape of the waterfall makes the body shorter and the passage smaller.
2.Four-point design makes better stacking stability. The rear wheel protection cover effectively improve work safety.
3.The Walkie Stacker use foot brake which is safe and reliable.
4.The electrical cover can be easily opened for battery maintenance.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
|
Model
|
|
TA1016F06
|
TA1025F06
|
TA1516F06
|
TA1525F06
|
TA2016F06
|
TA2025F06
|
|
Power Type
|
|
Battery
|
Battery
|
Battery
|
Battery
|
Battery
|
Battery
|
|
Operation Type
|
|
Walkie
|
Walkie
|
Walkie
|
Walkie
|
Walkie
|
Walkie
|
|
Service weight(incl. battery)
|
kg
|
365
|
445
|
374
|
454
|
450
|
530
|
|
Rated Capacity
|
Q(kg)
|
1000
|
1000
|
1500
|
1500
|
2000
|
2000
|
|
Load Center
|
C(mm)
|
500
|
500
|
500
|
500
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
1600
|
2500
|
1600
|
2500
|
1600
|
2500
|
|
Forks size
|
l/e/s(mm)
|
1000/160/70
|
1000/160/70
|
1000/160/70
|
1000/160/70
|
1000/160/70
|
1000/160/70
|
|
Front Overhang
|
x(mm)
|
/
|
/
|
/
|
/
|
/
|
/
|
|
Turning radius
|
Wa(mm)
|
1285
|
1285
|
1285
|
1285
|
1294
|
1294
|
|
Max. climbing ability
|
%(tanθ )
|
/
|
/
|
/
|
/
|
/
|
/
|
|
Driving speed(load/unload)
|
km/h
|
/
|
/
|
/
|
/
|
/
|
/
|
|
Lifting speed(load/unload)
|
mm/s
|
85/175
|
85/175
|
70/130
|
70/130
|
50/90
|
50/90
|
|
Lowering speed(load/unload)
|
mm/s
|
105/110
|
105/110
|
90/60
|
90/60
|
60/55
|
60/55
|
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric forklift factory?
A1: Yes, we are the professional manufacturer of electric forklift for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
