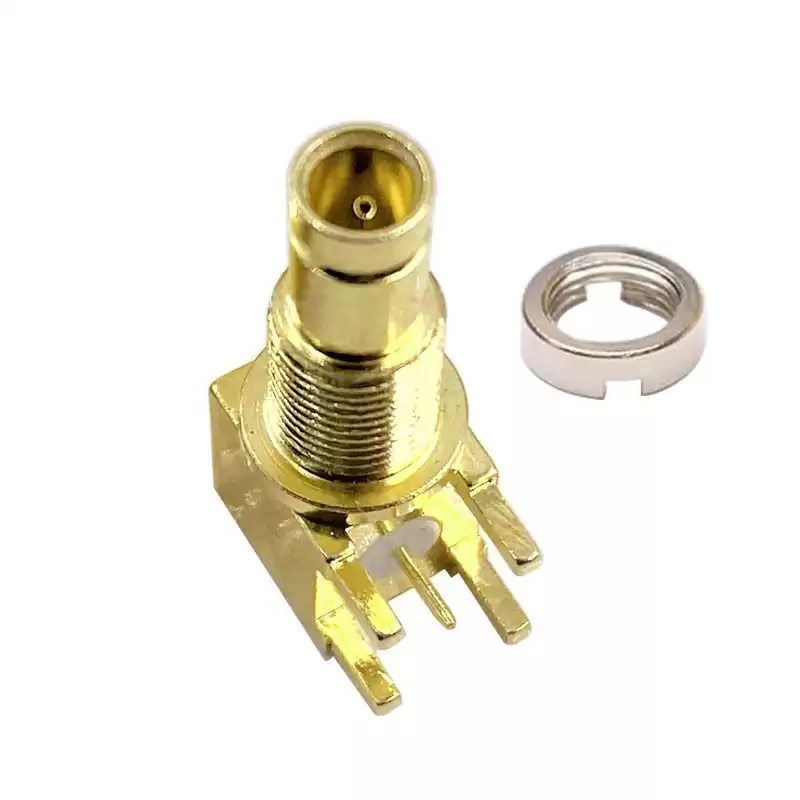

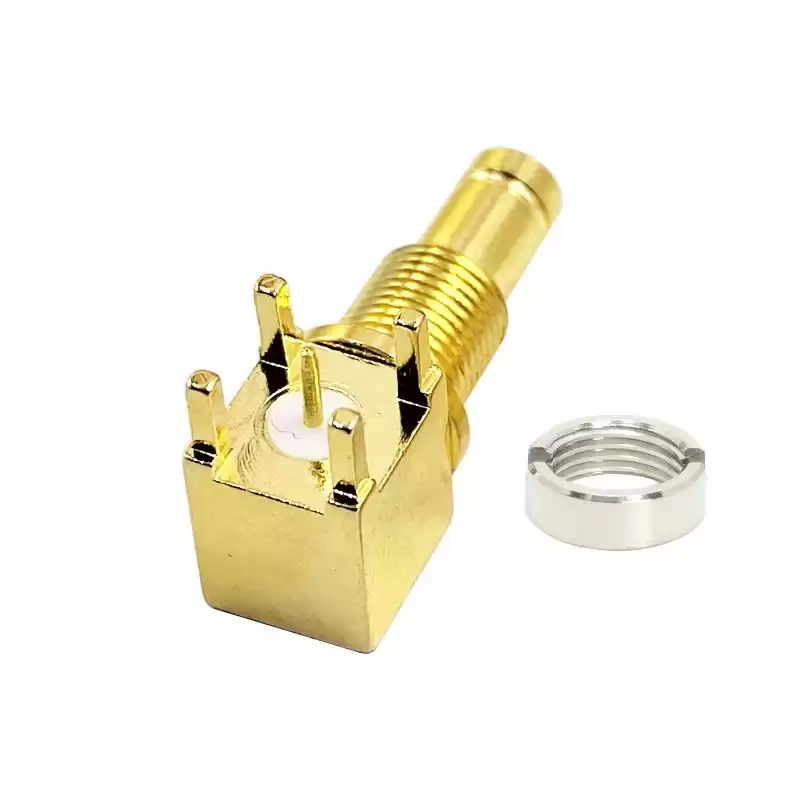

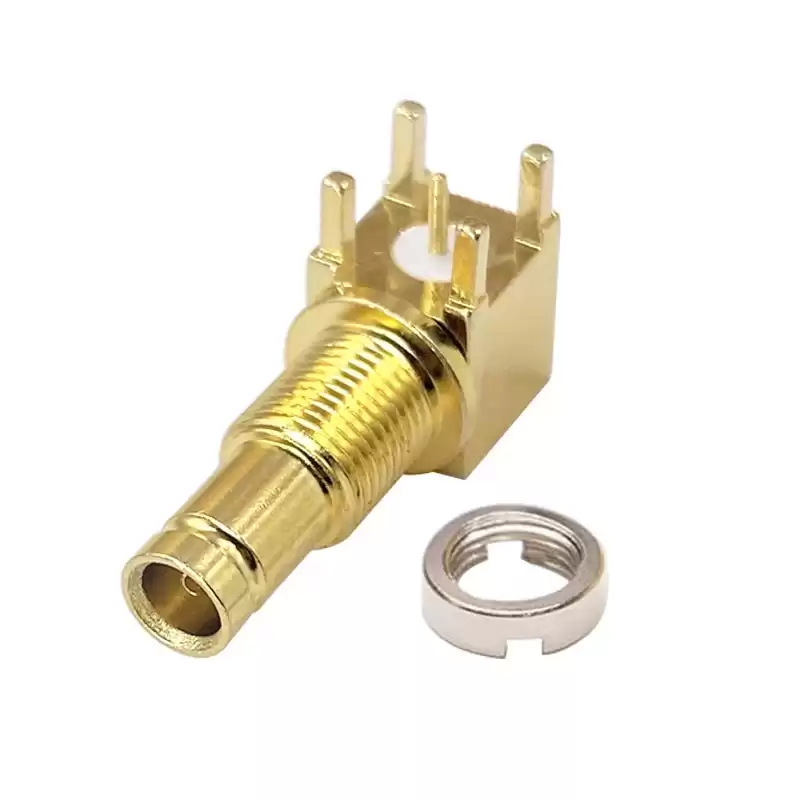

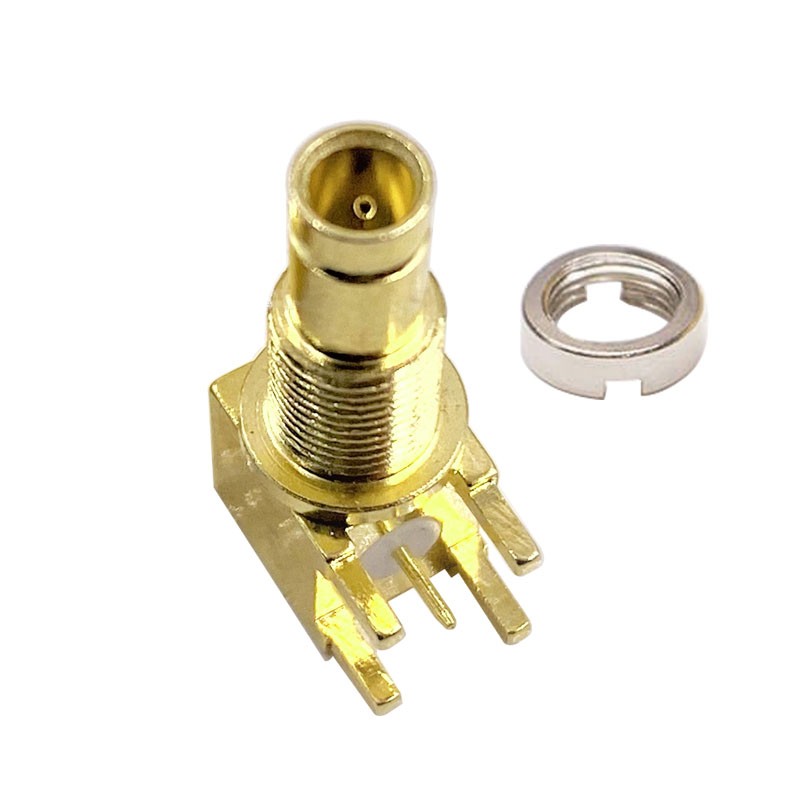

1.0-2.3 Jack Female Right Angle Bulkhead Mount Push-On Connector Solder Attachment Thru Hole for PCB

1.0-2.3 Connector Features

  • Can terminate to coax or PCB (printed circuit board);
  • Can be jack or plug gender in standard polarity with 50 or 75 ohm impedance;
  • Body can be straight or right angle;
  • Mount Method can be bulkhead or mount-less;
  • Attachment methods include crimp/solder, solder or solder/solder;
  • Body is brass or stainless steel.



1.0-2.3 Jack Female Right Angle Bulkhead Mount Push-On Connector Solder Attachment Thru Hole for PCB



The 1.0-2.3 connectors compact design allows for denser connector packing which makes this interface an ideal solution for applications where space constraints exist; DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 4 GHz as well as 75 ohm with a maximum frequency of 3 GHz. ; this 1.0-2.3 Jack PCB connector with bulkhead has an interface type of thru hole and a 75ohm impedance, attachment method uses shield/contact solder, its right angle body is brass with gold plating.



Specifications

ELECTRICAL DATA
Frequency Range 50 Ohm / DC - 4 GHz
75 Ohm / DC- 3 GHz (0 - 12 GHz on Extended Range Designs)
Voltage Rating 250 Volts RMS Max Continuous
Dielectric Withstanding Voltage 750 VRMS Max
Insulation Resistance  10000 MΩ Min
Center Contact Resistance 6 mΩ Min
Outer Contact Resistance 3 mΩ Min
RF Leakage -90 dB Min (DC - 1 GHz)
Insertion Loss 0.1 dB Max
Power Handling 133 W @ 1 GHz @ 25 ºC
MECHANICAL DATA
Mating Cycles 500 Min
Coupling Mechanism Push-Pull
ENVIRONMENTAL DATA
Temperature Range −40°C to +155°C



Applications

  • Base Stations
  • Routers
  • Data Communications
  • Telecommunications/Central Office
  • Routers
  • Filters & Wireless Components
  • Switching Equipment
  • Cameras
  • Encoders
