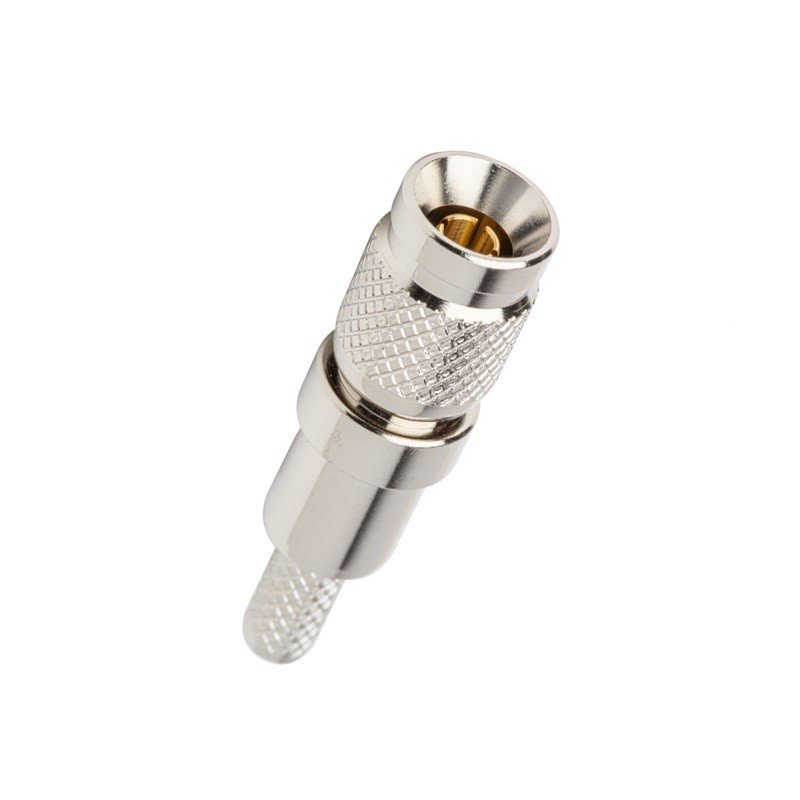

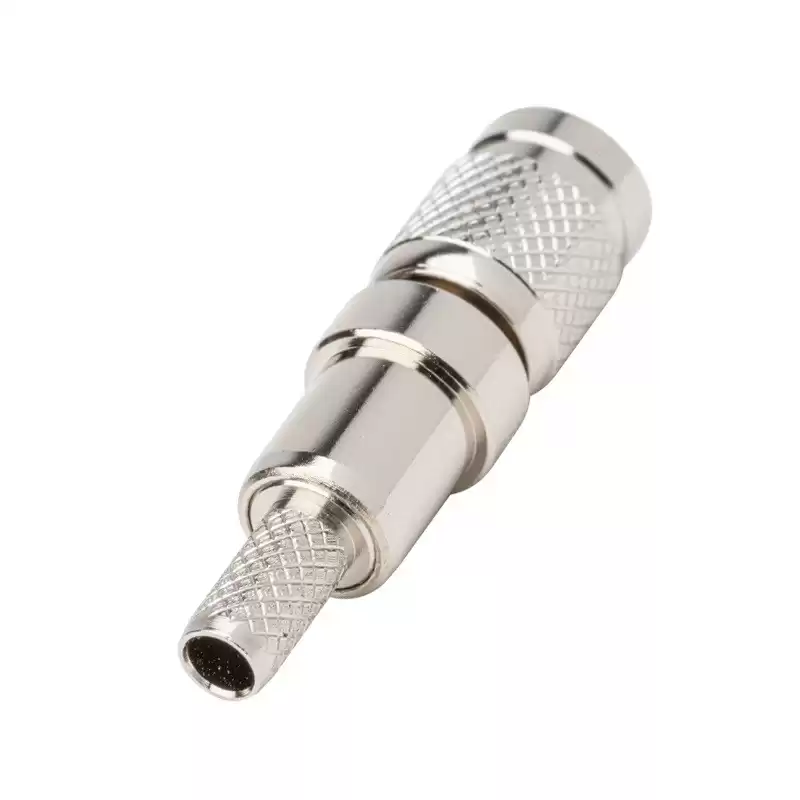

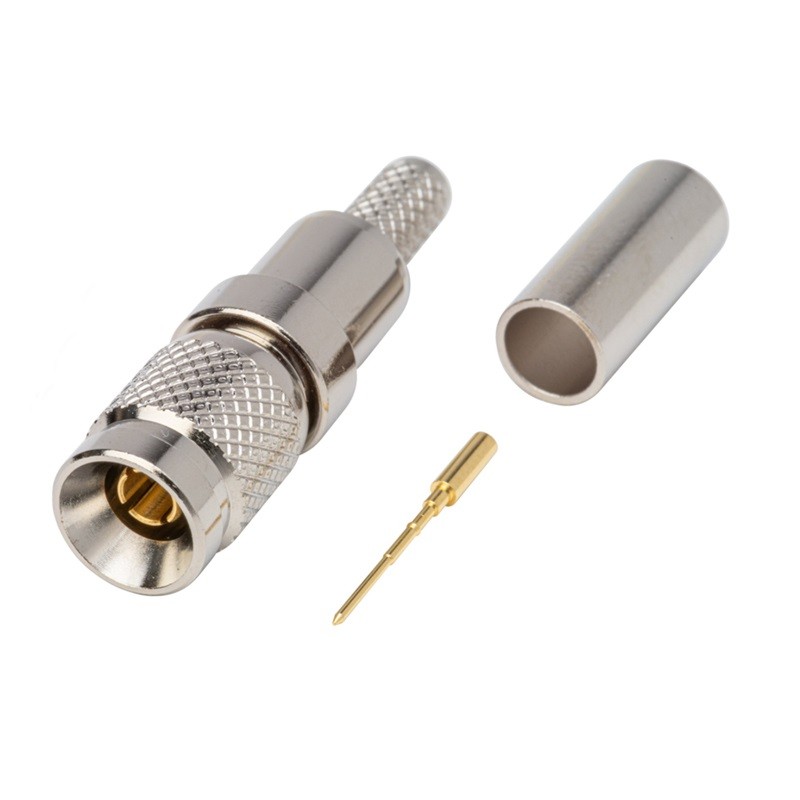

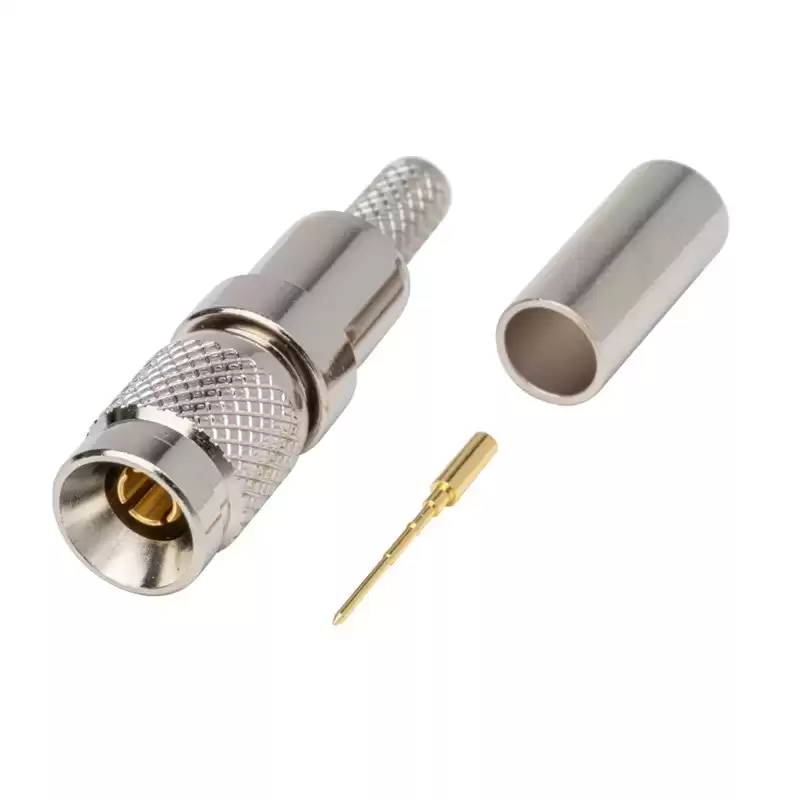

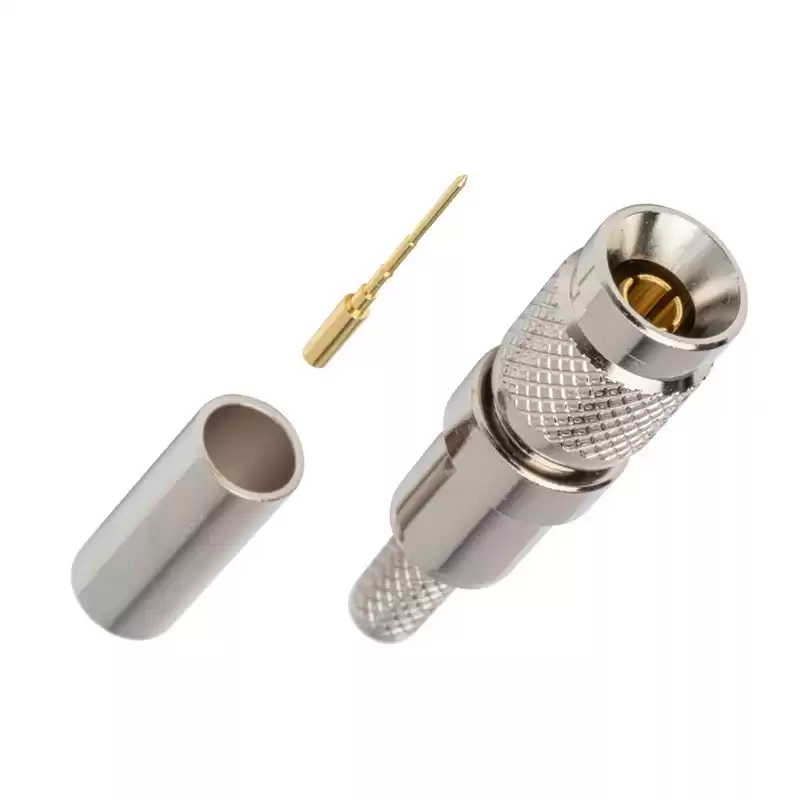

Crimp Straight 10GHz MINI DIN 1.0-2.3 RF Coaxial Connector for 4855R/VDM230/RG59 Cable
The MIN DIN 1.0-2.3 connectors compact design allows for denser connector packing which makes this interface an ideal solution for applications where space constraints exist;DIN 1.0-2.3 connectors are available to perform at 50 ohm with a maximum frequency of 10 GHz as well as 75 ohm with a maximum frequency of 4 GHz. These performance specifications support high data rates for AES Audio, SD video, HD video, 3Gb/s video, and other high density digital broadcast formats.
Specifications
| ELECTRICAL DATA |
|
| Frequency Range |
50 Ohm / DC - 10 GHz |
| 75 Ohm / DC- 3 GHz (0 - 12 GHz on Extended Range Designs) |
| Voltage Rating |
250 Volts RMS Max Continuous |
| Dielectric Withstanding Voltage |
750 VRMS Max |
| Insulation Resistance |
10000 MΩ Min |
| Center Contact Resistance |
6 mΩ Min |
| Outer Contact Resistance |
3 mΩ Min |
| RF Leakage |
-90 dB Min (DC - 1 GHz) |
| Insertion Loss |
0.1 dB Max |
| Power Handling |
133 W @ 1 GHz @ 25 ºC |
| MECHANICAL DATA |
|
| Mating Cycles |
500 Min |
| Coupling Mechanism |
Push-Pull |
| ENVIRONMENTAL DATA |
|
| Temperature Range |
−40°C to +155°C |
Applications
- Base Stations
- Routers
- Data Communications
- Telecommunications/Central Office
- Routers
- Filters & Wireless Components
- Switching Equipment
- Cameras
- Encoders
