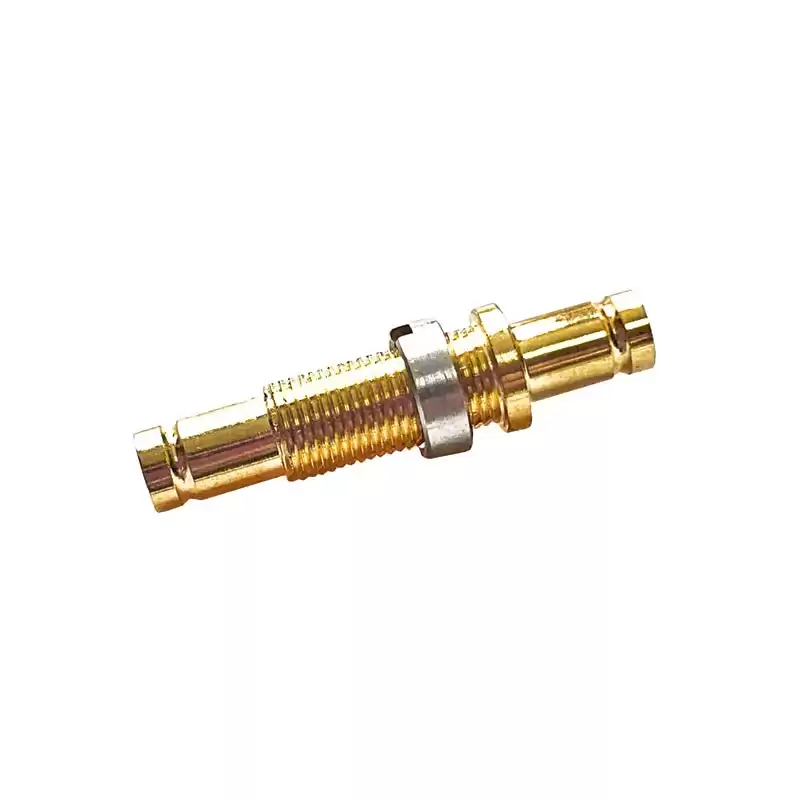

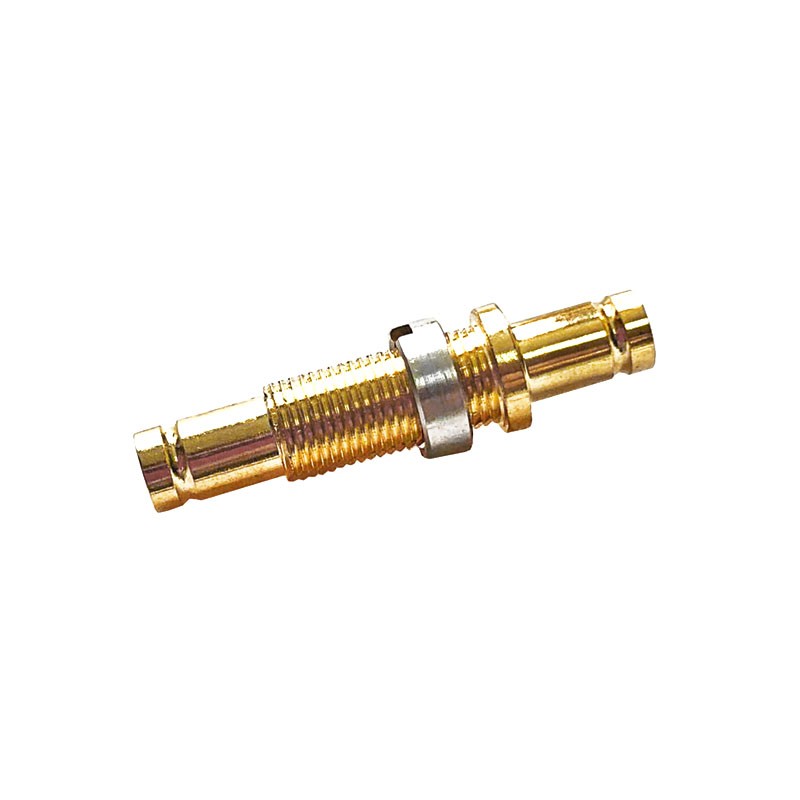

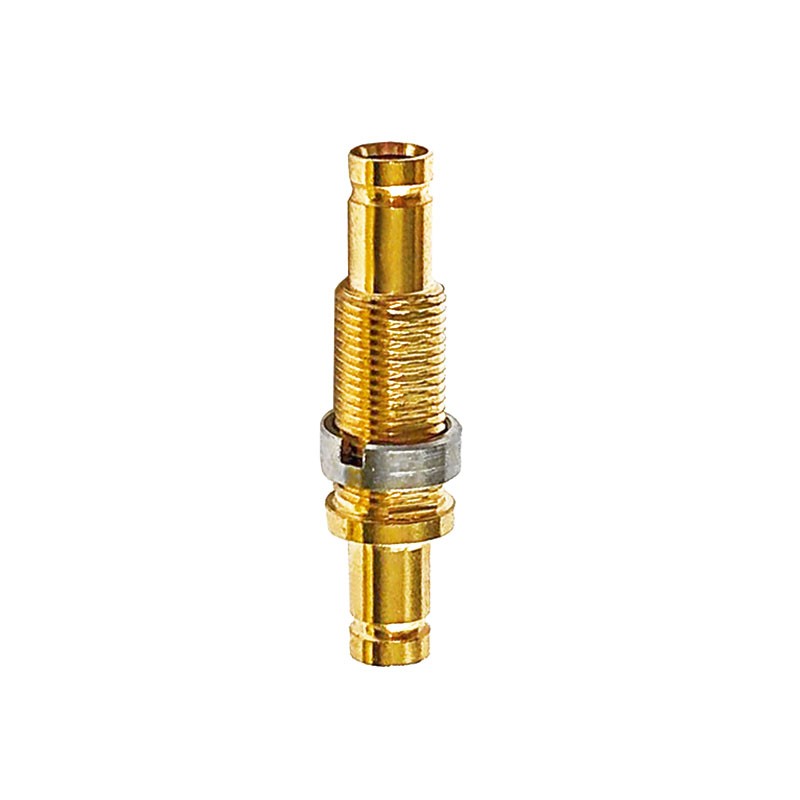

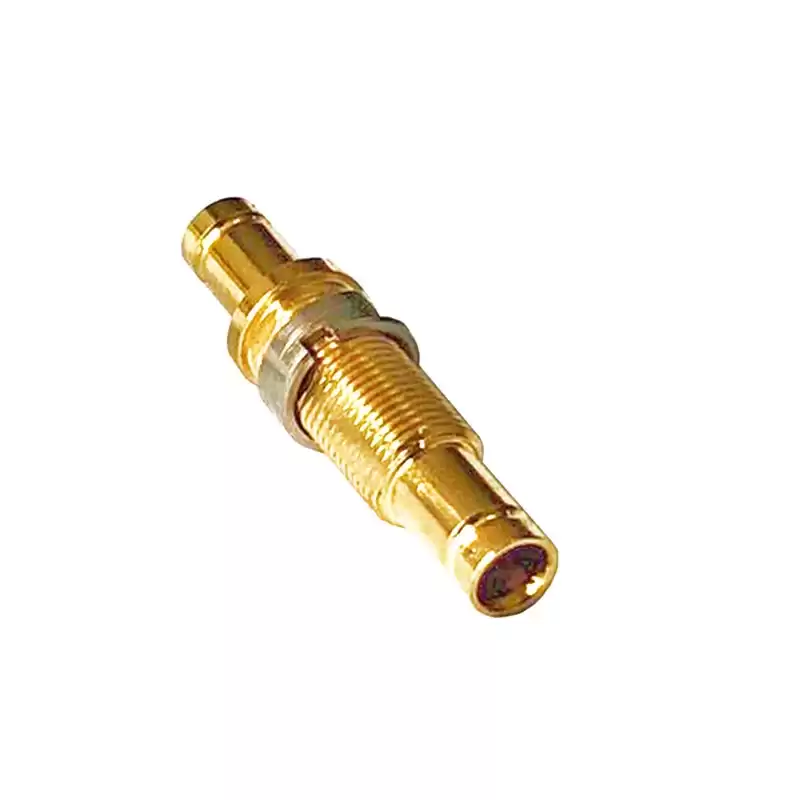

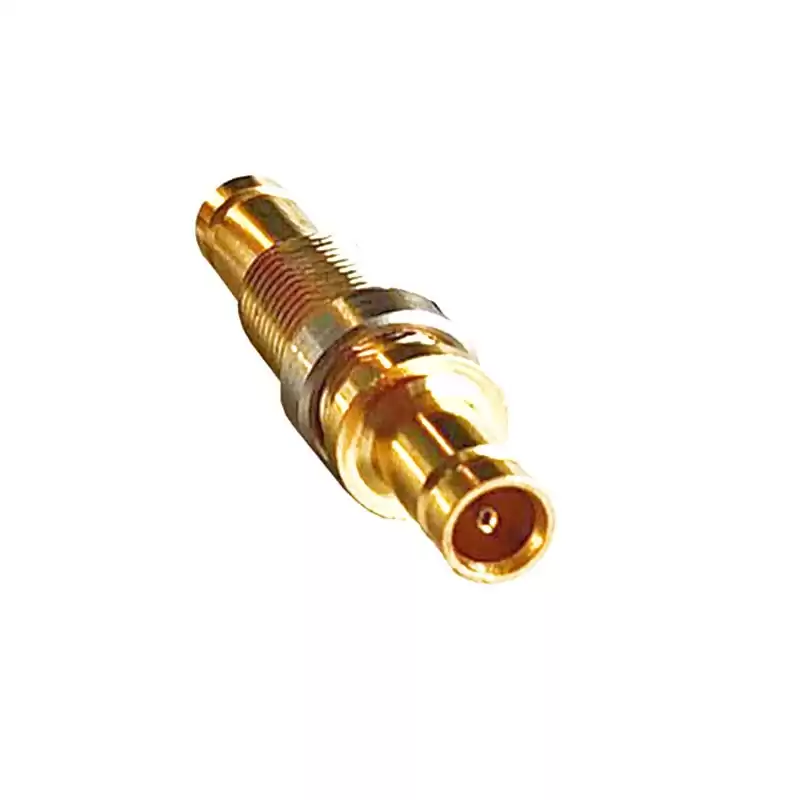

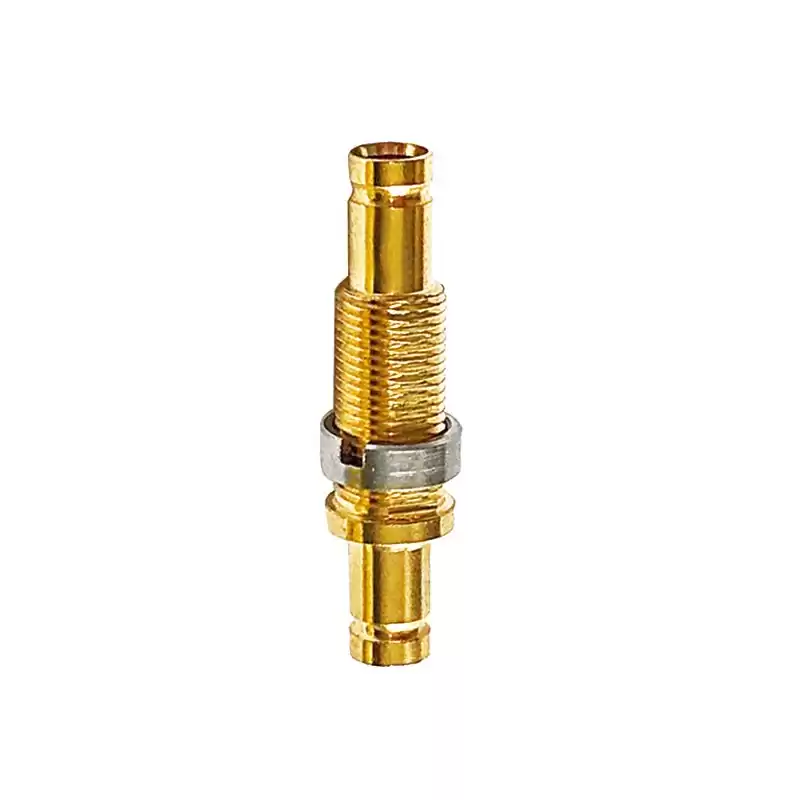

1.0-2.3 Jack Female to 1.0-2.3 Jack Female Bulkhead Mount RF Coaxial Connector Adapter
The 1.0-2.3 Adapter has different 1.0-2.3 to 1.0-2.3 adapter gender, The 1.0-2.3 to 1.0-2.3 adapters has jack to jack or jack to plug gender. This 1.0-2.3 jack to 1.0-2.3 jack adapter has a maximum frequency of 14GHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
1.0-2.3 |
| Adapter Side 1 Style |
Jack |
| Adapter Side 2 Series |
1.0-2.3 |
| Adapter Side 2 Style |
Jack |
| Frequency (Max GHz) |
14 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
Insulator Material
|
PTFE |
Applications
- high data rates for AES Audio
- SD video
- HD video
- 3Gb/s video
- high density digital broadcast formats
