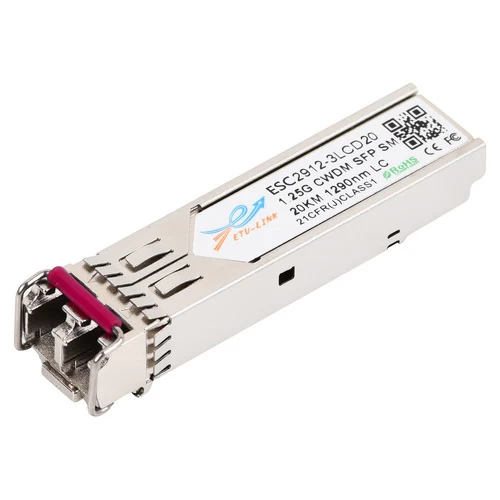

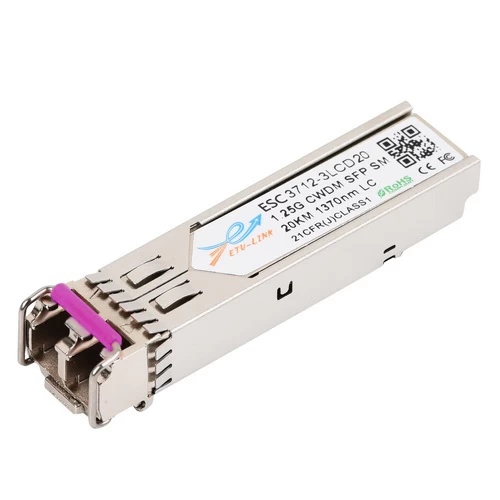

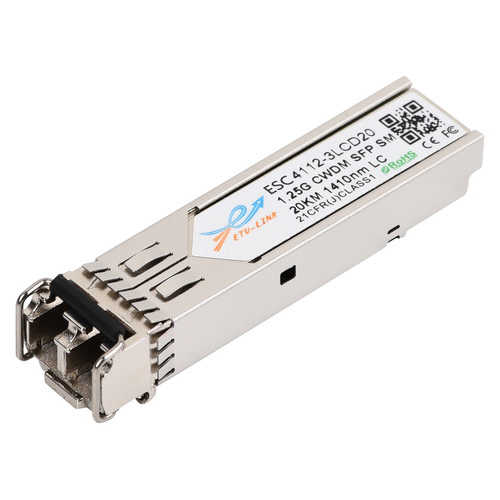

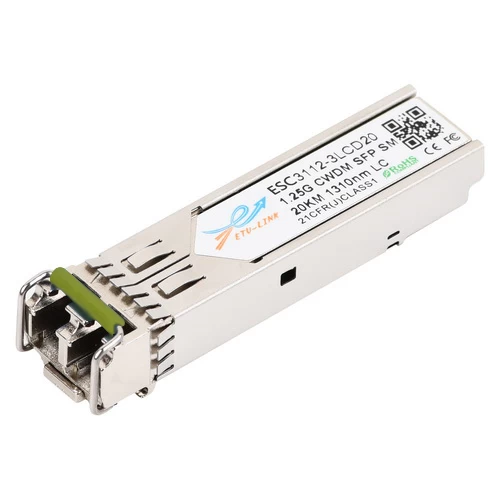

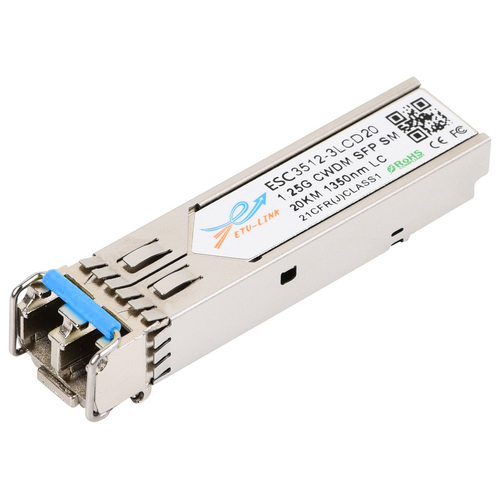

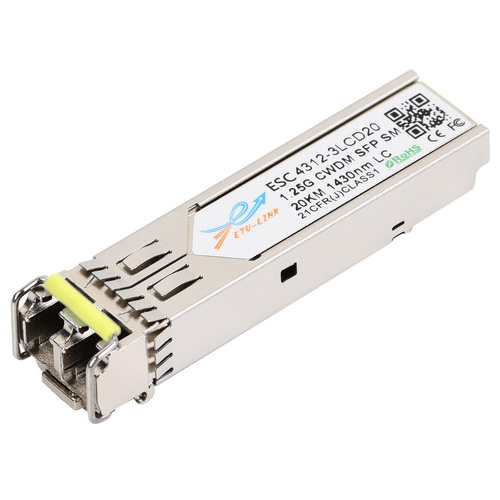

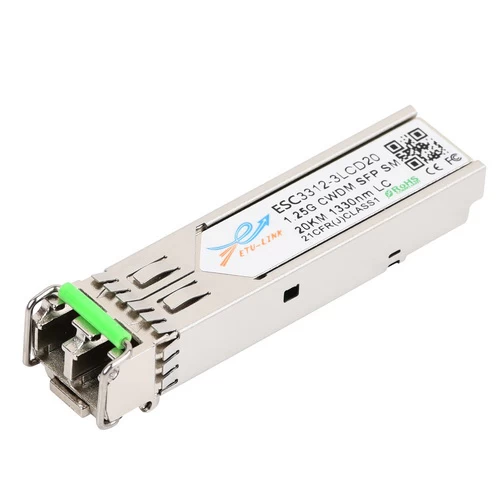

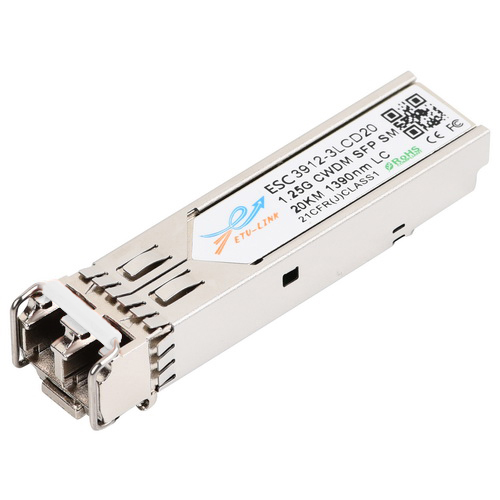

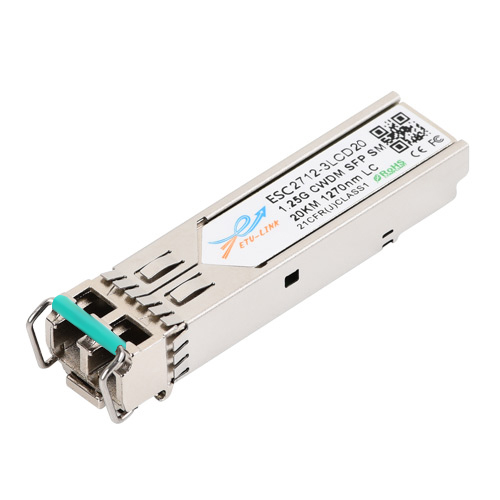

ESCXX12-3LCD20

1.25Gbps CWDM SFP Optical Transceiver, 20KM Reach

Features

Ø Data-rate of 1.25Gbps operation

Ø 18 CWDM DFB wavelengths laser and PIN photodetector for 20km transmission

Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Ø Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Ø Compatible with SONET OC-24-LR-1

Ø Compatible with RoHS

Ø +3.3V single power supply

Ø Operating case temperature:

Commercial Temperature: 0 to +70°C

Industrial Temperature: -40 to +85°C

Applications

Ø Gigabit Ethernet

Ø Fiber Channel

Ø Switch to Switch interface

Ø Switched backplane applications

Ø Router/Server interface

Ø Other optical transmission systems

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20KM transmission distance with SMF.

The transceiver consists of three sections: an uncooled CWDM DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.  The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further

information, please refer to SFP MSA.
