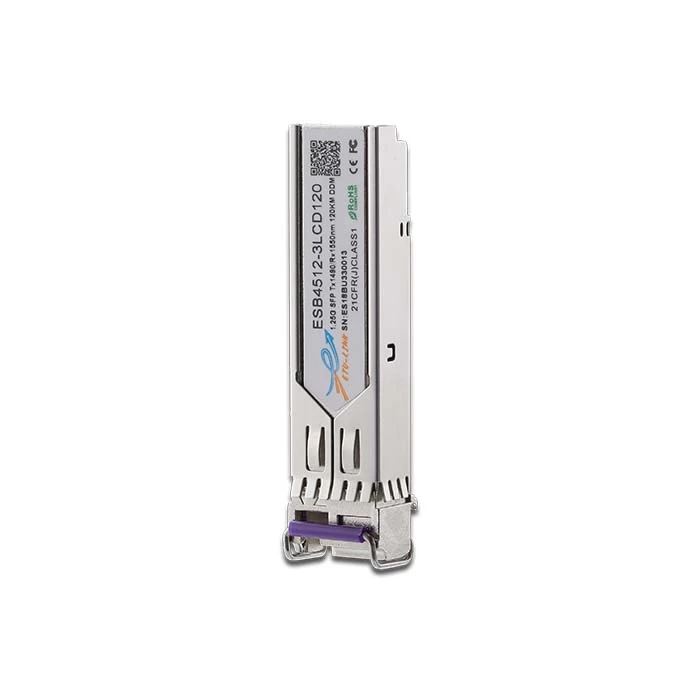

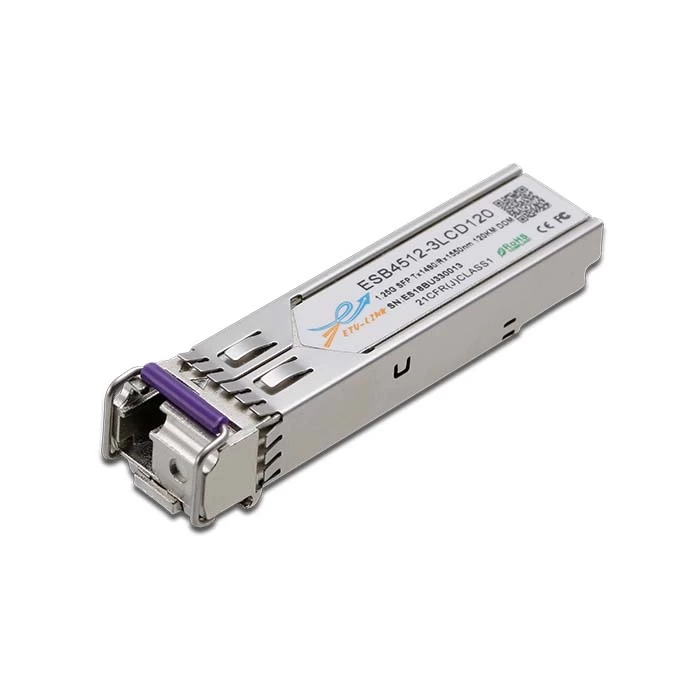

ESB4512-3LCD120

1.25Gbps SFP Bi-Directional Transceiver, 120KM Reach

Tx1490nm/Rx1550nm

Features

Ø  Dual data-rate of 1.25Gbps/1.063Gbps operation

Ø  1490nm DFB laser and APD photodetector for 120KM transmission

Ø  Compliant with SFP MSA and SFF-8472 with simplex LC receptacle

Ø  Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Ø  Compatible with SONET OC-24-LR-1

Ø  Compatible with RoHS

Ø  +3.3V single power supply

Ø  Operating case temperature range:

0 °C to +70 °C (Commercial)

-40 °C to +85 °C (Industrial)

Applications

Ø  Gigabit Ethernet

Ø  Fiber Channel

Ø  Switch to Switch interface

Ø  Switched backplane applications

Ø  Router/Server interface

Ø  Other optical transmission systems

Description

The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of

1.25Gbps/1.0625Gbps and 120KM transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
