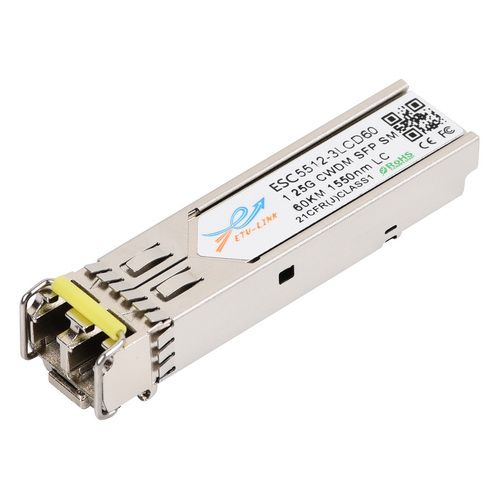

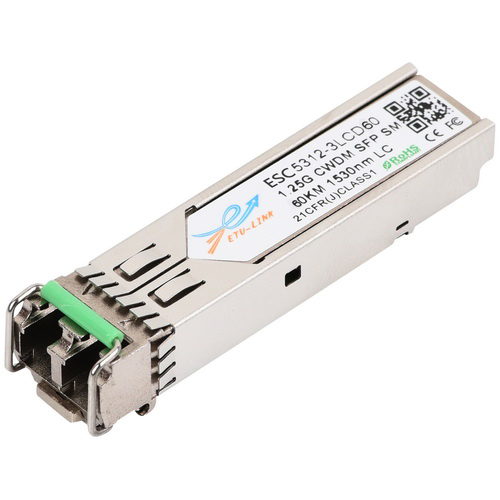

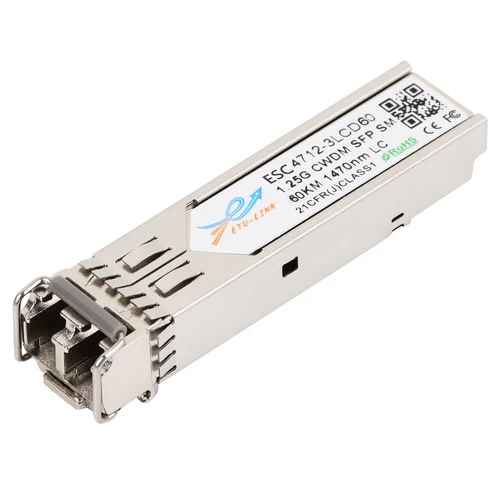

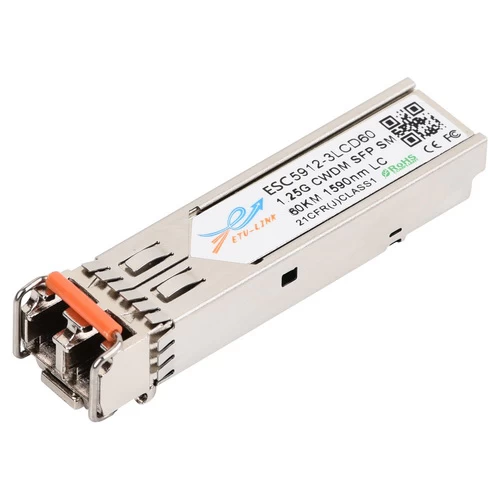

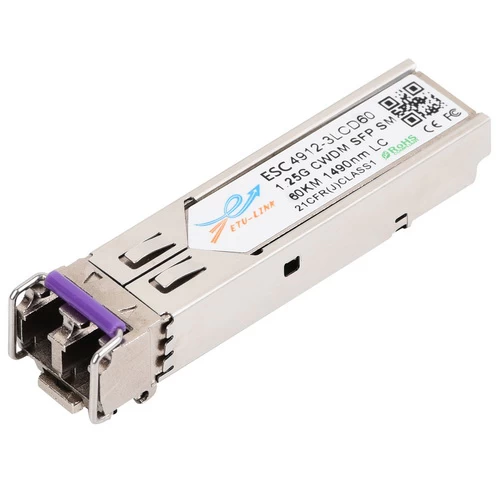

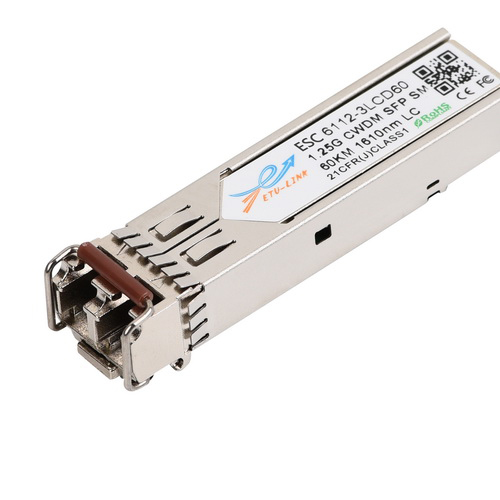

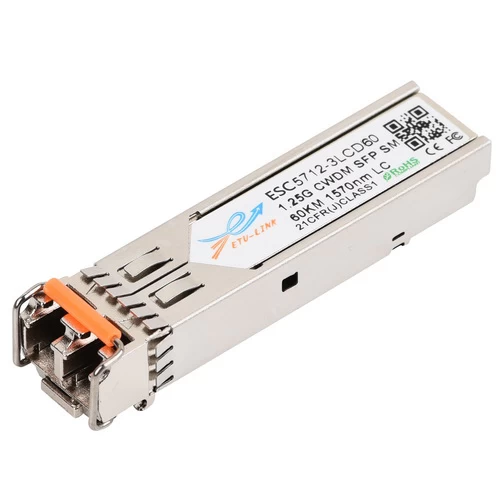

ESCXX12-3LCD60
1.25Gbps
CWDM SFP Optical Transceiver, 60KM Reach
Features
Ø Data-rate of 1.25Gbps operation
Ø 18 CWDM DFB wavelengths laser and PIN photodetector for 60KM transmission
Ø Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
Ø Digital Diagnostic Monitoring:
Internal
Calibration or External Calibration
Ø Compatible with SONET OC-24-LR-1
Ø Compatible with RoHS
Ø +3.3V single power supply
Ø Operating case temperature:
Commercial Temperature: 0 to +70°C
Industrial Temperature: -40 to +85°C
Applications
Ø Gigabit Ethernet
Ø Fiber Channel
Ø Switch to Switch interface
Ø Switched backplane applications
Ø Router/Server interface
Ø Other optical transmission systems
Description
The SFP transceivers are high performance, cost effective
modules supporting data-rate of 1.25Gbps and 60KM transmission distance with
SMF.
The transceiver consists of three sections: an uncooled CWDM
DFB laser transmitter, a PIN photodiode integrated with a trans-impedance
preamplifier (TIA) and MCU control unit. All modules satisfy class I laser
safety requirements.
The transceivers are compatible with SFP Multi-Source
Agreement (MSA) and SFF-8472. For further
information, please refer
to SFP MSA.
