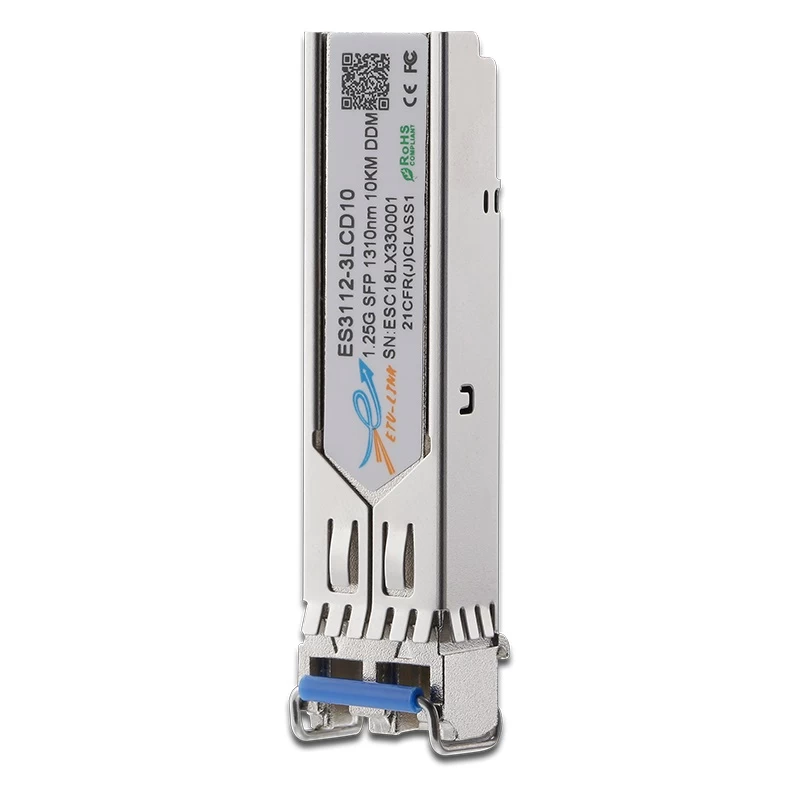

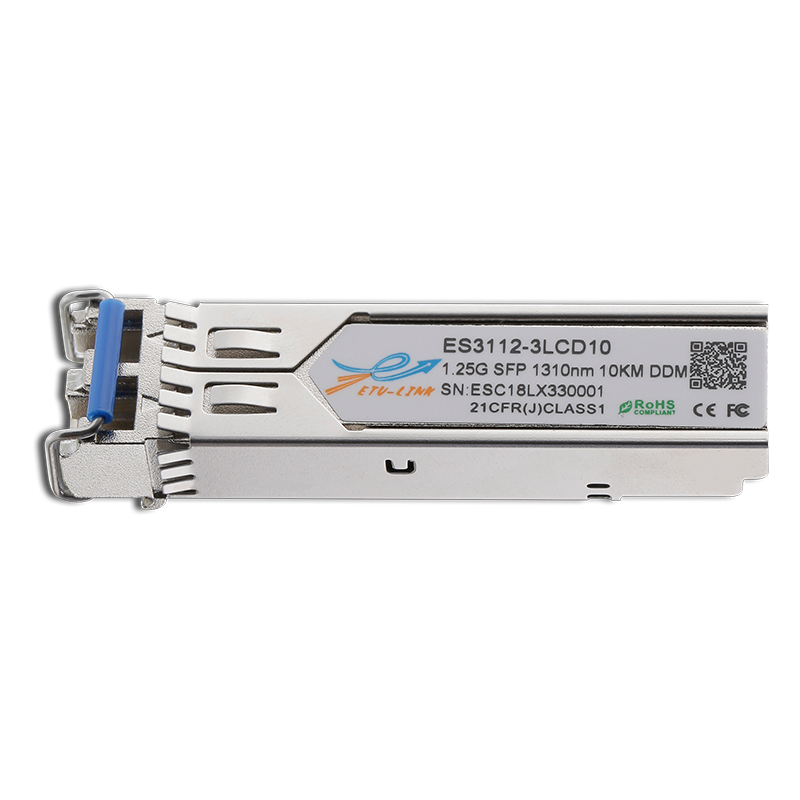

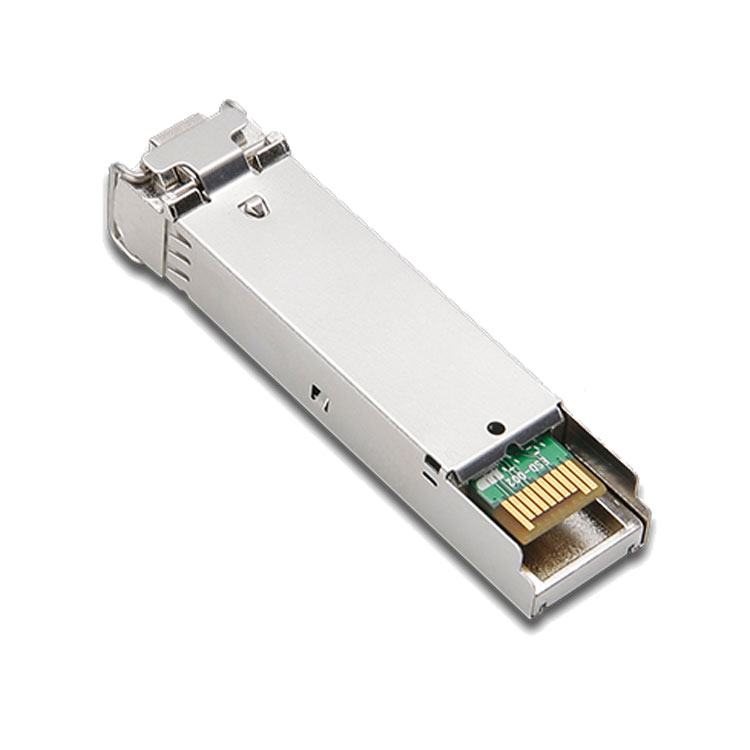

1.25G SFP 1000BASE-LX/LH 1310NM 10KM TRANSCEIVER

This is a SM module,the  Data-rate of 1.25Gbps operation and the wavelength is 1310nm,maximum transmission distance is up to 10KM.



ES3112-3LCD10

Cisco GLC-LH-SM Compatible 1.25Gbps SFP Optical Transceiver, 10KM Reach


Features

Ø  Data-rate of 1.25Gbps operation

Ø  1310nm FP laser and PIN photodetector for 10KM transmission

Ø  Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Ø  Digital Diagnostic Monitoring:

Internal Calibration or External Calibration

Ø  Compatible with SONET OC-24-LR-1

Ø  Compatible with RoHS

Ø  +3.3V single power supply

Ø  Operating case temperature:

Standard : 0 to +70°C

Extended : -20 to +85°C

Industrial : -40 to +85°


Applications

Ø  Gigabit Ethernet

Ø  Fiber Channel

Ø  Switch to Switch interface

Ø  Switched backplane applications

Ø  Router/Server interface

Ø  Other optical transmission systems


Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 10KM transmission distance with SMF.



The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.


Quality control







Compatible list

Cisco module

HUAWEImodule

ZTEmodule

Junipermodule

TP-LINK module

Allied Telesis module

GLC-T (10/100/1000)

SFP-FE-SX-MM1310-A

SFP-FX/OC3-M2K

ES8512-3LCD05

TL-SM311LM

AT-SPTX

GLC-LH-SMD

SFP-FE-LH40-SM1310

SFP-GE-S10K

ES3112-3LCD10

TL-SM321A

AT-SPSX

GLC-SX-MMD

ESFP-GE-SX-MM850

SFP-GE-S40K

ESP8592-3LCD03

TL-SM321B

AT-SPEX

GLC-EX-SMD1

SFP-GE-LH40-SM1310

SFP-GE-S80K

ESP3192-3LCD10

TXM431-LR

AT-SPLX40

GLC-ZX-SMD

SFP-GE-LH40-SM1550

SFP-GE-S120K



TXM431-SR

AT-SPZX80

GLC-BX-D

SFP-FE-LH80-SM1550

XFP-10G-S40K





AT-SPFX/2

GLC-BX-U

XFP-SX-MM850

XFP-10G-S10K





AT-SPFXBD-LC-13

CWDM SFP

XFP-LX-SM1310

XFP-10GE-M





AT-SPFXBD-LC-15

DWDM SFP

XFP-LH40-SM1550-F1







AT-SP10SR***











AT-SP10LR***











AT-SP10LR20/I











AT-SP10ER40/I***











AT-SP10ZR80/I***
