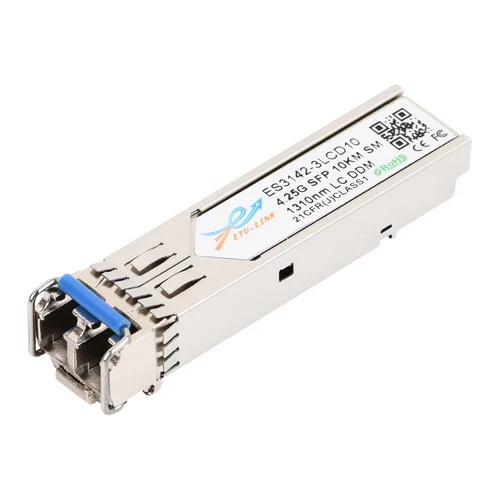

ES3142-3LCD10

4.25Gbps SFP Optical Transceiver, 10KM Reach

Features

Data-rate Supports 1.0625/2.125/4.25Gb/s Fiber Channel Operation

1310nm DFB laser and PIN photo detector for 10KM transmission

SFP MSA SFF-8074i compliant

Digital Diagnostic SFF-8472 compliant

Digital Diagnostic Monitoring:Internal Calibration or External Calibration

Compatible with RoHS

Operating case temperature:

Standard : 0 to +70°C

Applications

Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fiber Channel

1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10 (Rate selectable version)

Description

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement

(MSA)1. They are compatible with Fiber Channel per FC-PI-2 Rev. 10.0. also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.
