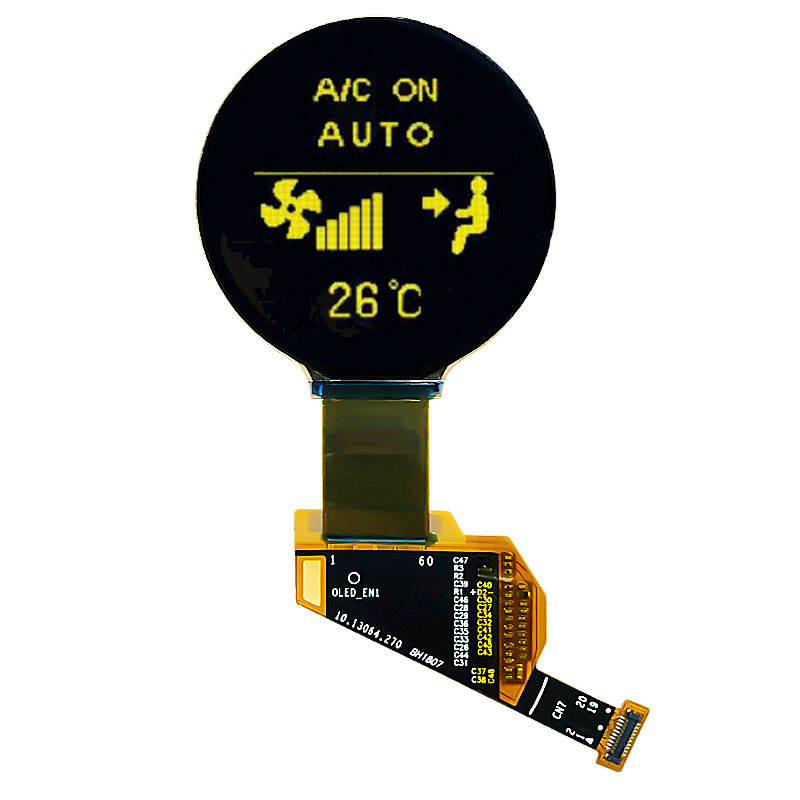

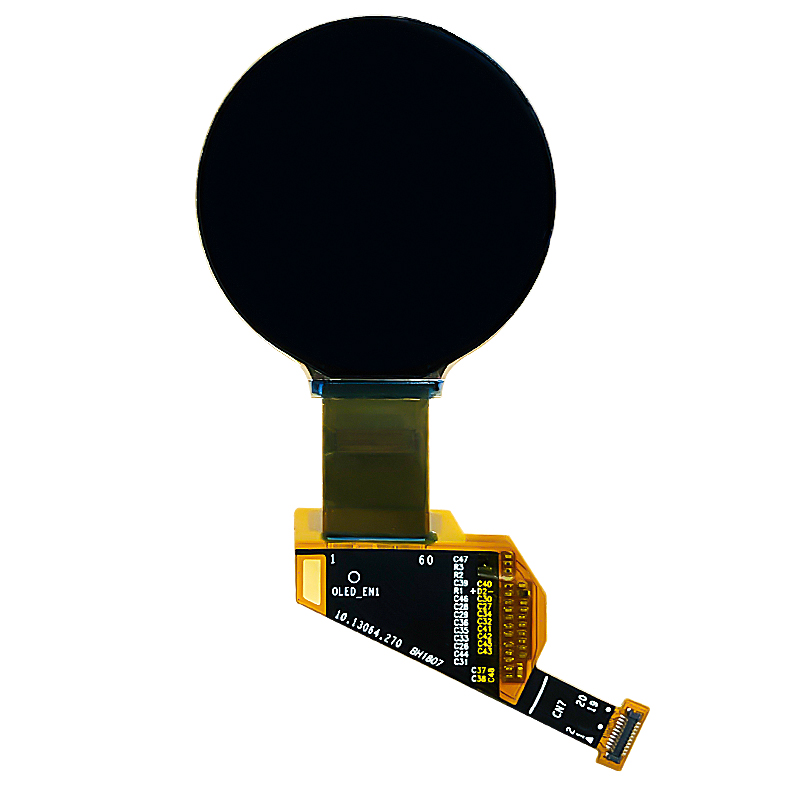

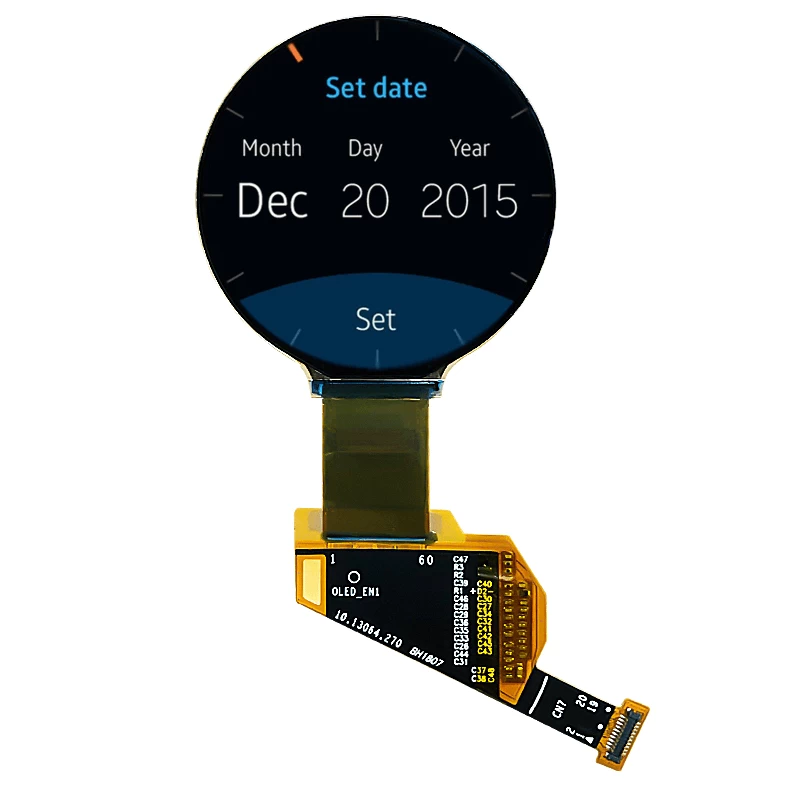

1.4'' Round OLED for smart watch with 454*454 resolution RM69330 IC, 24PIN, MIPI/SPI interface

SCE140001-V01 is a Round OLED Display with COG Type, 454*454 Resolution, RM69330 IC, MIPI/SPI interface, 24 PIN


  • PIN24
  • ColorMonochrome (White)
  • IC Part No.RM69330
  • InterfaceMIPI/SPI
  • Active Area (mm)35.412*35.412
  • Viewing Area (mm)37.71*37.71
  • Outline Dimension (mm)38.83*38.21*0.68
  • Resolution454*454
  • FPC typeConnector
Facebook Twitter Pinterest LinkedIn 分享


Basic Information


Product Application:     For Smart Watch
Dot Matrix:                    454*454
Drive IC:                        RM69330
Interface:                       MIPI/SPI
Outline Dimension:        38.83*38.21*0.68
View area:                      35.412*35.412
PIN:                                24
FPC Type:                      Connector:

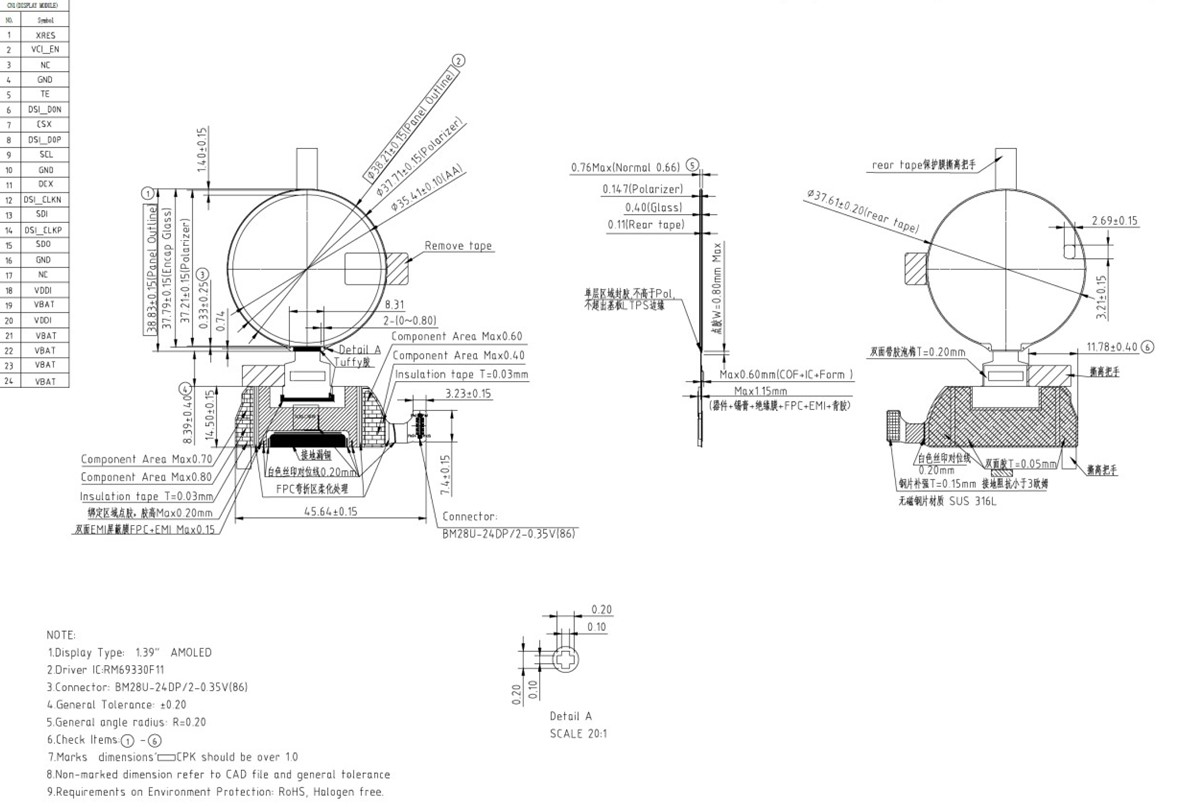

Drawing




General Specification


Item Specification unit
Dimension outline 38.83(V) x 38.21(W) x 0.68(T) mm
LTPS Glass outline 38.83(V) x 38.21(W) mm
Encapsulation Glass outline φ38.21 mm
Number of dots 454(W) x RGB x 454(H) dots
Active area φ35.412 mm
Diagonal size 1.39
 inch
Pixel pitch 78 x 78 μm
Glass thickness 0.2 / 0.2 mm





Interface Definition


Part No. Pin name I/O Description
1 XRES I Device reset signal (0 : enable ; 1 : Disable)
2 VCI_EN I VCI enable signal
3 VPP - OTP
4 GND Power Ground
5 TE O Synchronous signal output from panel to avoid tearing effect
6 DSI_D0N I/O MIPI data negative signal
7 AM_SPI_CSX I SPI interface
8 DSI_D0P I/O MIPI data positive signal
9 AM_SPI_SCL I SPI interface
10 GND Power Ground
11 AM_SPI_DCX I SPI interface
12 DSI_CLKN I MIPI strobe negative signal
13 AM_SPI_SDI I/O SPI interface
14 DSI_CLKP I MIPI strobe positive signal
15 AM_SPI_SDO I/O SPI interface
16 GND Power Ground
17 NC - Floating
18 VDDIO Power Power supply for interface system except MIPI interface
19 VBAT Power AMOLED power
20 VDDIO Power Power supply for interface system except MIPI interface
21 VBAT Power AMOLED power
22 VBAT Power AMOLED power
23 VBAT Power AMOLED power
24 VBAT Power AMOLED power
