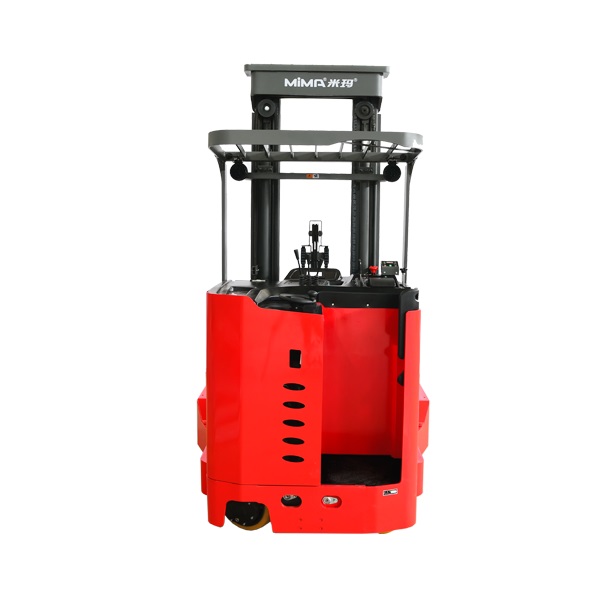

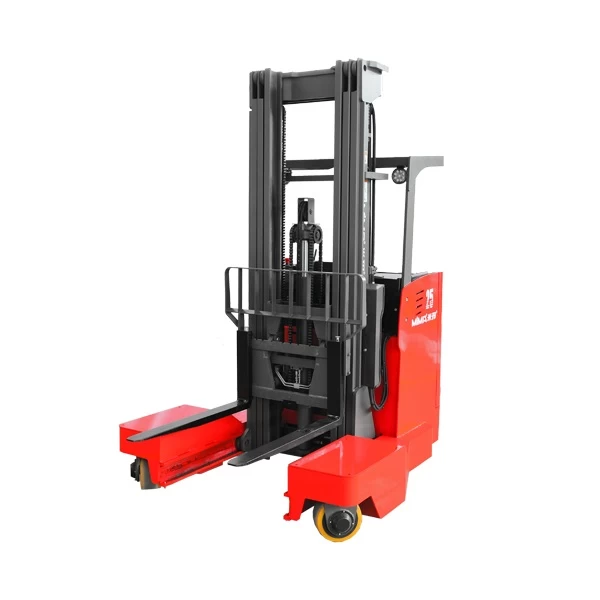

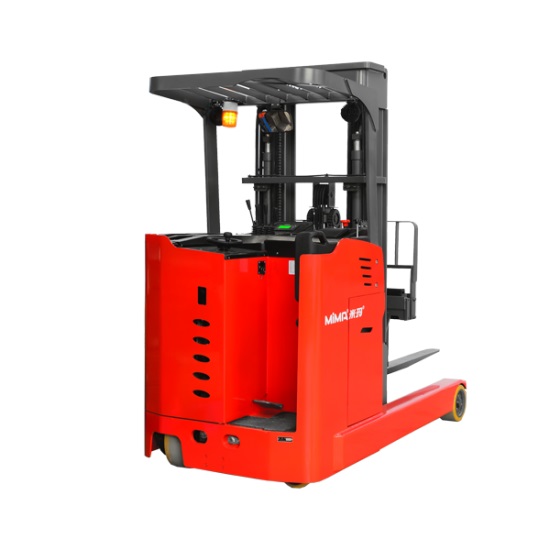

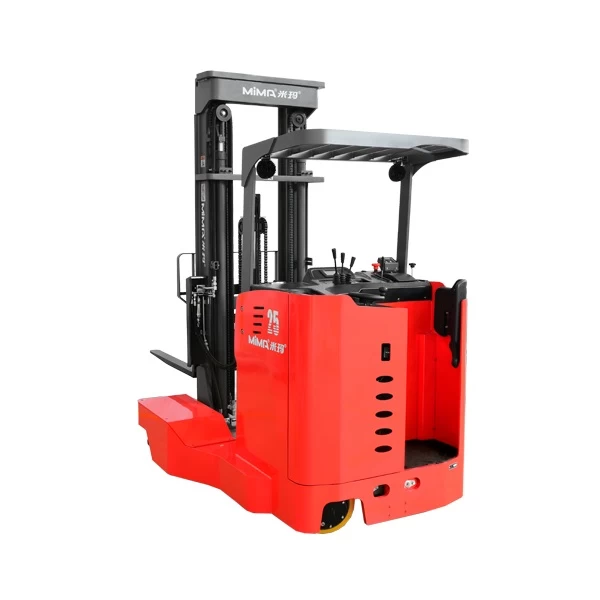

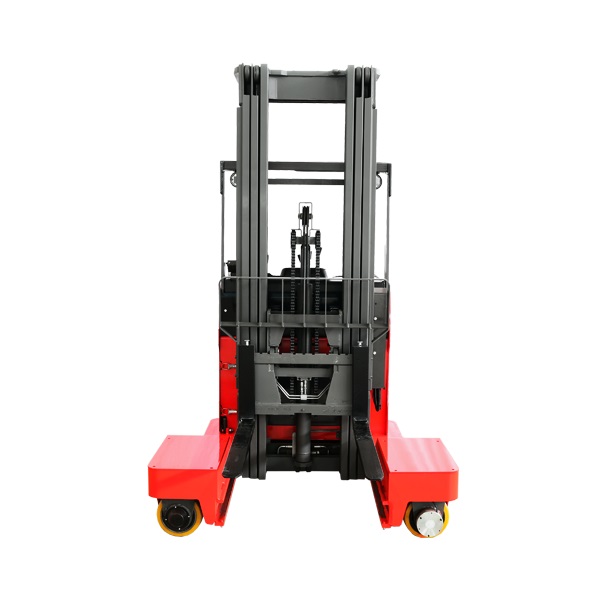

1.5-2.5 ton muti-direction reach forklift truck MQ series
Main Features:
1.All directions travelling, used in very narrow aisle for long material handling;
2.Full AC system, electric power steering, long service life and low energy consumption;
3.Imported gear pump, full buffer hydraulic cylinder, stable body and low noise;
4.Imported controller, high precision control, easy electric control setting, high performance and low fault;
5.Imported hydraulic hose, durable and long servic life;
6.Cast steel drive box, High strength PU tyres, driving stable, braking reliable;
7.High definition drive wheel display;
8.Big capacity battery.
Specification:
|
Brand
|
|
MiMA
|
MiMA
|
MiMA
|
MiMA
|
|
Model
|
|
MQ1530
|
MQ1545
|
MQ2530
|
MQ2545
|
|
Power Type
|
|
Battery
|
Battery
|
Battery
|
Battery
|
|
Operation Type
|
|
Stand on
|
Stand on
|
Stand on
|
Stand on
|
|
Service weight(incl. battery)
|
kg
|
2530
|
2600
|
3700
|
3900
|
|
Rated Capacity
|
Q(kg)
|
1500
|
1500
|
2500
|
2500
|
|
Load Center
|
C(mm)
|
500
|
500
|
500
|
500
|
|
Lifting height
|
h3(mm)
|
3000
|
4500
|
3000
|
4500
|
|
Forks size
|
l/e/s(mm)
|
920/100/35
|
920/100/35
|
920/100/45
|
920/100/45
|
|
Front Overhang
|
x(mm)
|
140
|
140
|
175
|
175
|
|
Turning radius
|
Wa(mm)
|
1610
|
1610
|
1975
|
1975
|
|
Max. climbing ability
|
%(tanθ )
|
≤8
|
≤8
|
≤10
|
≤10
|
|
Driving speed(load/unload)
|
km/h
|
7/8
|
7/8
|
7.8/9
|
7.8/9
|
|
Lifting speed(load/unload)
|
mm/s
|
120/190
|
100/190
|
220/300
|
220/300
|
|
Lowering speed(load/unload)
|
mm/s
|
190/170
|
170/130
|
310/260
|
310/260
|

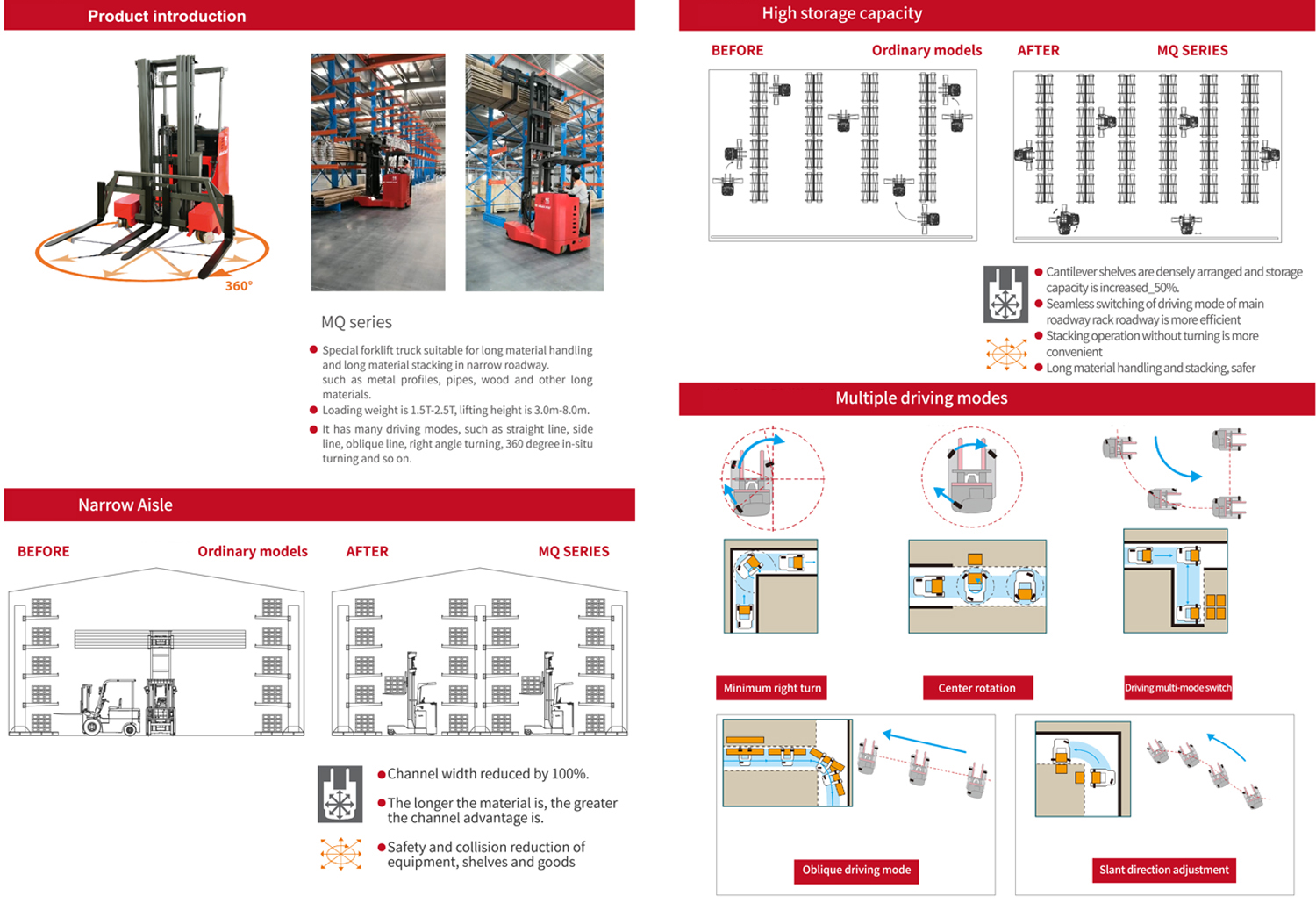

Advantages:
Company Exhibition:
MiMA can offer you electric pallet truck, pallet stacker, counterbalance stacker,reach truck, stand-on reach truck, seated reach truck, reach stacker, electric counterbalance forklift truck, counter balance forklift, tow tractor, order picker, narrow aisle forklift, 4-direction reach truck, 3-way pallet stacker(VNA), multi-direction forklift, special forklift, AGV and other customized types for options, which can provide our customers with logistics handling solutions from 500kg to 100,000kg. Due to product serialization and standardization, all MiMA products are widely used in medicine, food, chemical, household electrical appliances, wool cotton textile, tobacco, electronics, machinery, furniture and many other industries.
Certification:
FAQ:
Q1: Are you electric reach truck factory?
A1: Yes, we are the professional manufacturer of electric reach truck for more than 20 years.
Q2: How about the delivery time?
A2: About 20-30 days based on different model. For some standard products, we may have stock and could delivery immediately.
Q3: Is customized solution available?
A3: Yes, we can provide different customized solution.
Q4: Can you provide OEM service?
A4: Yes.
