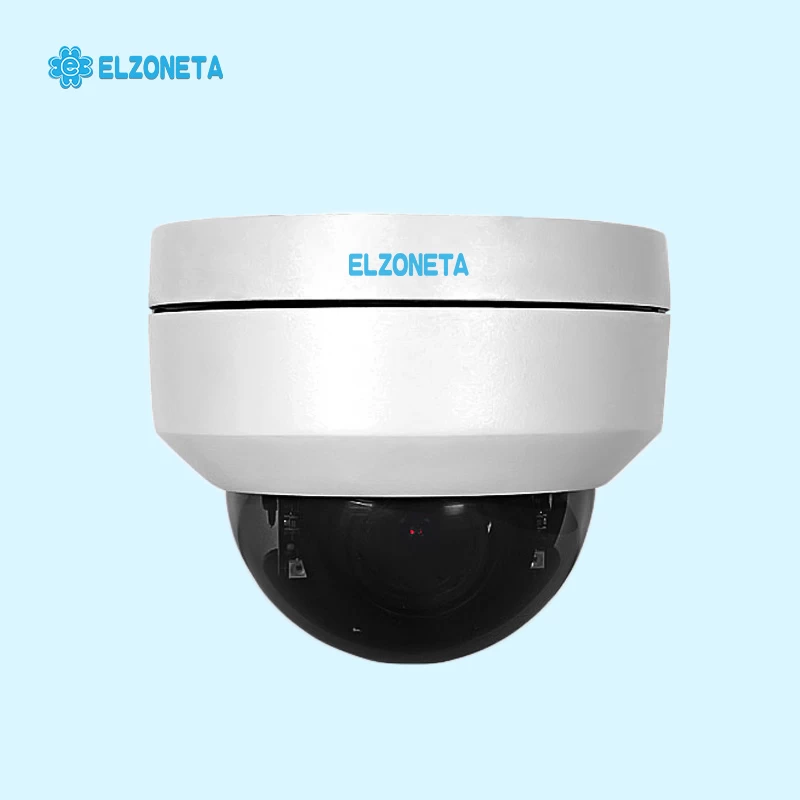

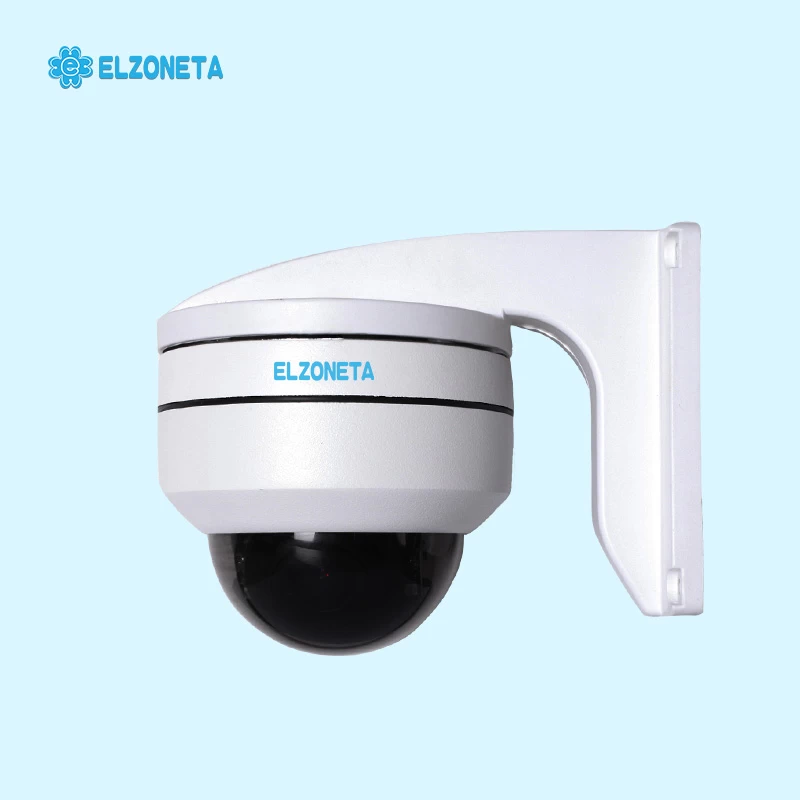

EC-B22S-4 IP Vandal Proof PTZ Dome Camera
Features:
1. 1.5 inch Vandal proof body,IP67.IK10
2. IR range reach up to 45 Meters
3. Pan/Tilt/Zoom ,A-B scan, tour available
4. Support Onvif ;Support P2P function
5. Support Audio, POE for optional
6. Support H.265/MJPEG compression,triple stream, video output
7. Compatible with HIKVISION/DAHUA/Milestone/AEVISION/UC2 and AXXON platform
Specifications:
|
Camera
|
|
Sensor
|
HI3516CV300+Sony323
|
|
Output pixel
|
1080P, 30FPS/1080P, 25FPS
|
|
Lens
|
4X=2.8-12mm
|
|
D/N
|
IR-CUT
|
|
BLC
|
Auto
|
|
WB
|
Auto
|
|
S/N Ratio
|
>50dB
|
|
Dome
|
|
Communications Protocol
|
TCP/IP，HTTP， NTP，IGMP， DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS,PPPoE，P2P
|
|
Software Control
|
IE, CMS, Management Platform
|
|
audio compression
|
G711, PCM
|
|
Voice intercom
|
optional
|
|
Mobile View(optional)
|
Android iPhone
|
|
Pan Range
|
0º-355º
|
|
Tilt Range
|
0-70º
|
|
Pan Speed
|
0-25°/s
|
|
Tilt speed
|
0-20º/s
|
|
Preset Points
|
220
|
|
Guard Tours
|
3 groups ( each group 16 preset、dwell time and speed selectable)
|
|
Guard Points
|
Max.16 points, dwell time user selectable
|
|
AB scan range
|
any point in range:0º~70º and 0º-355º
|
|
AB scan speed
|
1-9 grades
|
|
Operating temperature
|
Outdoor: -30℃～+60℃
|
|
Operation menu
|
English
|
|
Auto Control IR LED
|
PWM
|
|
IR distance
|
up to 45 meters
|
|
Consumption
|
≤10W
|
|
Weight
|
NW:0.55KG GW:0.67KG
|
