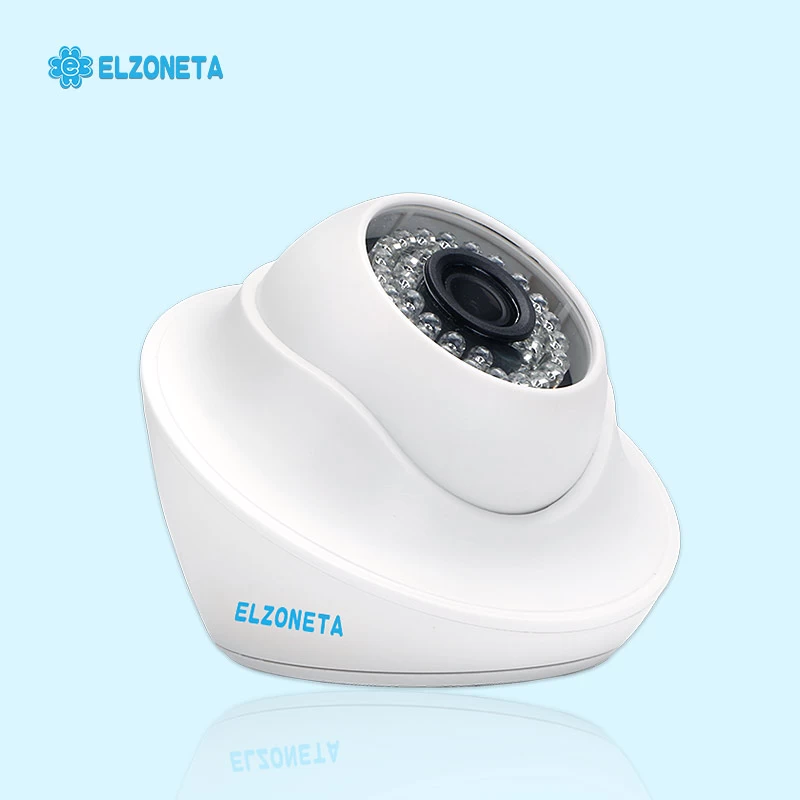

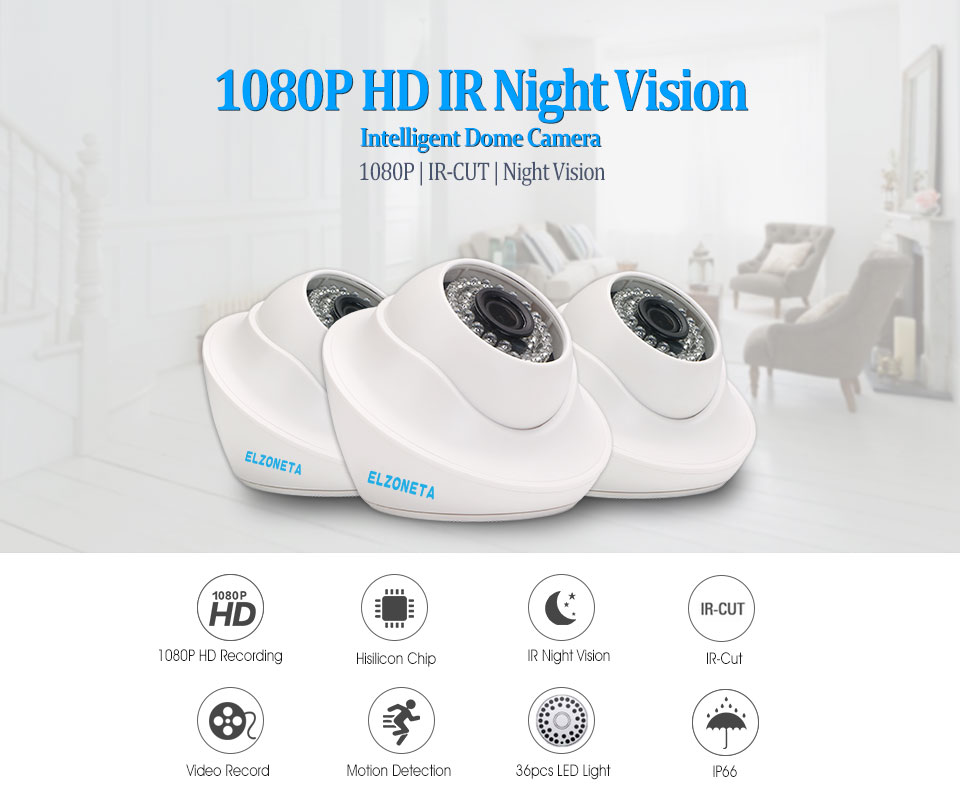

EC-B01S 2.0MP Dome Camera
Features:
1. 1/2.7" 2.0M F02 CMOS; ICR

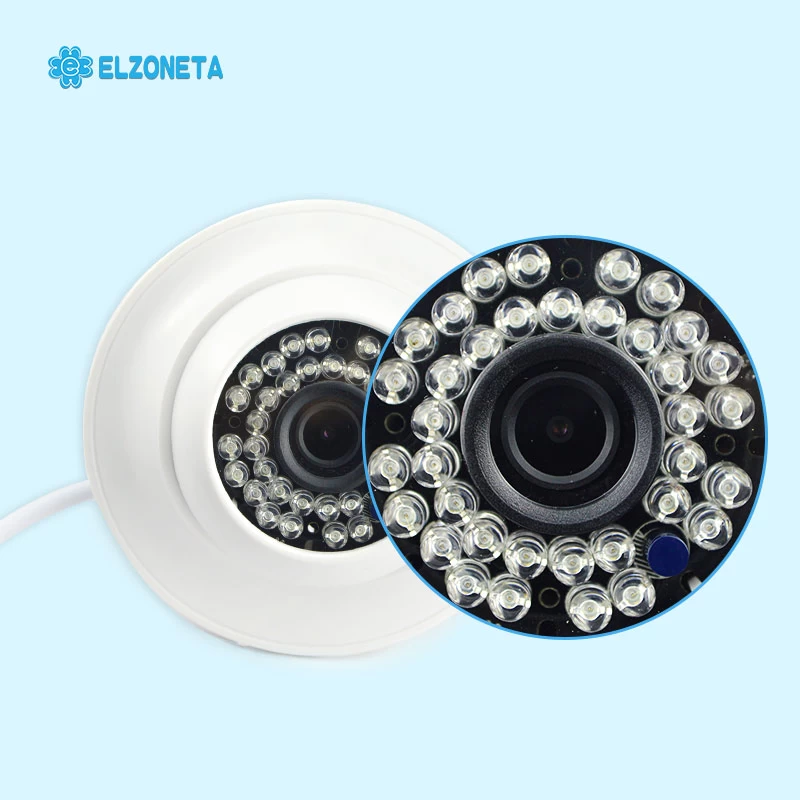

2. 3.6mm(6mm optional),36 ф5mm LEDS, up to 30m IR distance
3. 2.0M@16fps,H.264/MJPEG video compression
4. Support three streams, 3D DNR,,ROI and BLC
5. Support ONVIF (Profile S), CGI，Hikvision,Dahua,XM
6. Support Motion detection, Video blocking intelligent alarm function

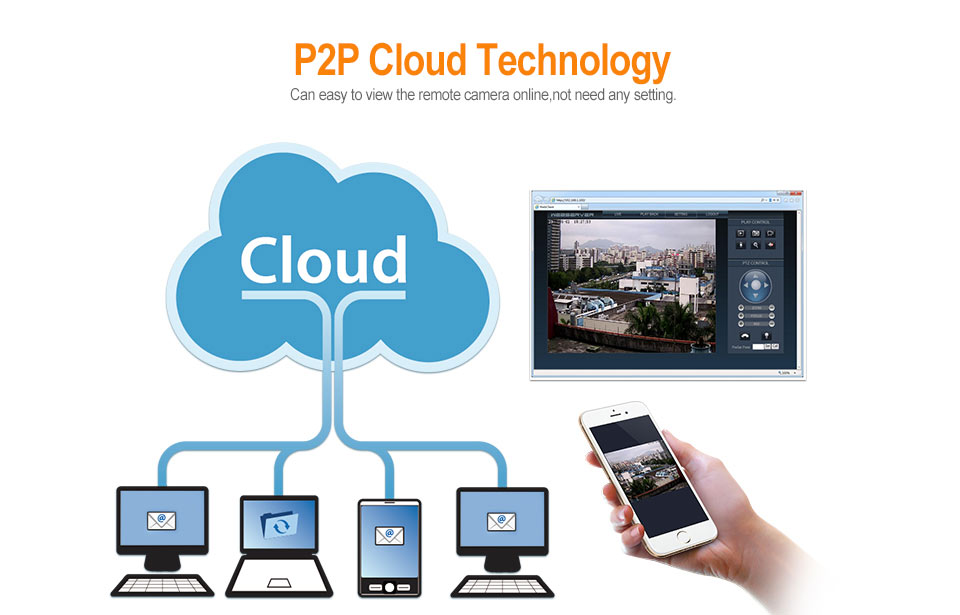

7. Support P2P Cloud Services
8. Remote control、Playback and Preview
9. Support Multi-user online access
10. Support mobile phone ( iOS&android) monitoring
11. Support PoE power supply (optional)
Specifications:
|
Camera
|
|
Image Sensor
|
1/2.7" 2.0M F02 CMOS
|
|
Electronic shutter
|
1/25s-1/10,000s
|
|
Min. Illumination
|
0.1Lux@F1.6(Color),0.01Lux@F1.6(B/W)；
|
|
Lens
|
3.6mm(6mm optional)
|
|
IR Light
|
36 ф5mm LEDS, up to 30m IR distance
|
|
WDR
|
N/A
|
|
Day& Night
|
ICR
|
|
Audio-video coding
|
|
Video Compression
|
H.264/MJPEG
|
|
Video bit rate
|
16 Kbps - 20 Mbps
|
|
Three-stream
|
Support
|
|
Audio compression
|
G.726, G.711A
|
|
Audio bit rate
|
16Kbps
|
|
|
|
Max. Video resolution
|
1920*1080
|
|
Frame Rate
|
1920*1080@16fps;1280*960, 1280*7207@25fps
|
|
Image Settings
|
Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
|
|
BLC
|
Support
|
|
ROI
|
Support
|
|
3D DNR
|
Support
|
|
Network Function
|
|
Intelligent Alarm
|
Motion detection, Video blocking, Network disconnection , IP conflict, Storage exception
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, P2P
|
|
Security
|
Heartbeat mechanism, One-key reset, password protection, privacy mask , watermark technology
|
|
System Compatibility
|
ONVIF, CGI, Hikvision,Dahua,XM
|
|
Interface
|
|
Audio input
|
1CH (optional)
|
|
TF Card
|
N/A
|
|
RS485
|
Support
|
|

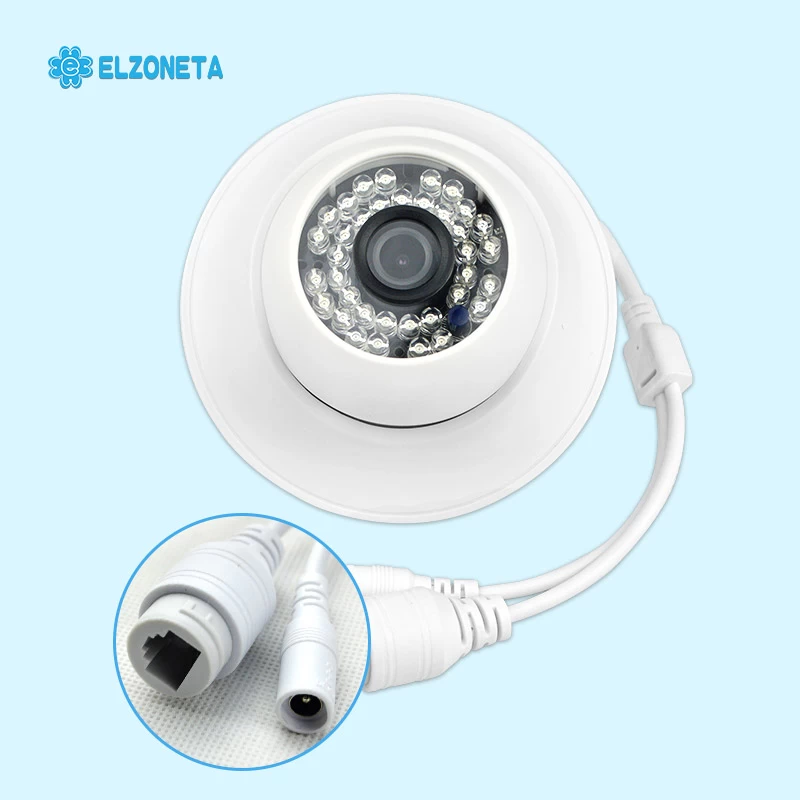

Network
|
1 RJ45 10M/100Mbps self-adaptable Ethernet port
|
|
Reset
|
Support
|
|
Wi-Fi
|
|
WIFI
|
N/A
|
|
Others
|
|

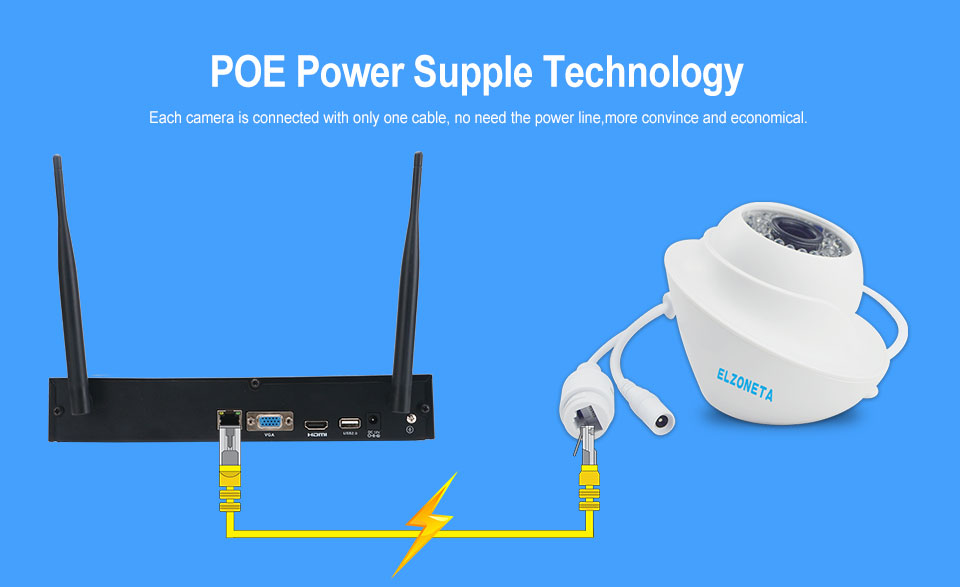

POE
|
Support (Optional), PoE (802.3af)
|
|
Power supply
|
DC12V±10% /1.5A
|
|
Working temp.
|
-10°C ~ 50°C
|

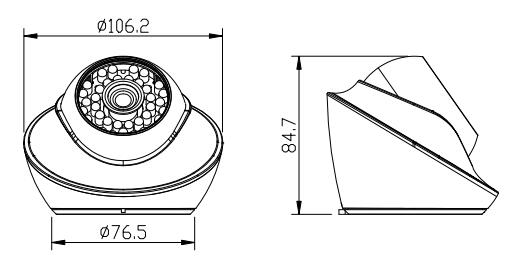

Structure::
