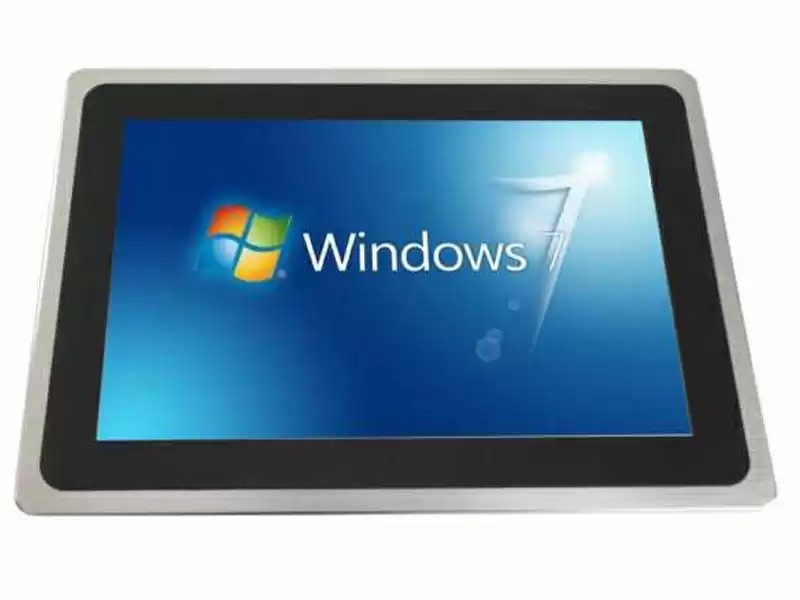

10.1" Widescreen Touch Industrial Monitor With Capacitive Touch Screen

10.1 inch Industrial Open Frame Capacitive Touch Monitor HD Wide View Touch Display , coming with HDMI , VGA , DVI and Audio interfaces to meet different needs of various professional display application.



10.1" Widescreen Touch Industrial Monitor With Capacitive Touch Screen

Product Introduction

Open frame touchscreen monitor delivers the quality and reliability. We design, build and are responsible for the complete solution with touch integrated from the start.

The touch screen is sealed to prevent the bad influence from dirt, dust and liquid , can meet the front IP65 water-resistant requirement.

Using our own touchscreens combine with our technology , everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).



Specifications optional configurations
Front Panel Aluminum panel, brushed and oxidized natural color Other colours can be customized
Back chassis 1.2mm steel plate, black,OSD Menu Other colours can be customized
LCD Screen 10.1" TFT, LED backlight; Resolution 1280*800; Dot matrix: 0.1695*0.1695; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 1300:1; Response time: 25ms; MTBF: 30,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85°).
Touch Screen Capcitive touch  screen Customizable Resistive screen

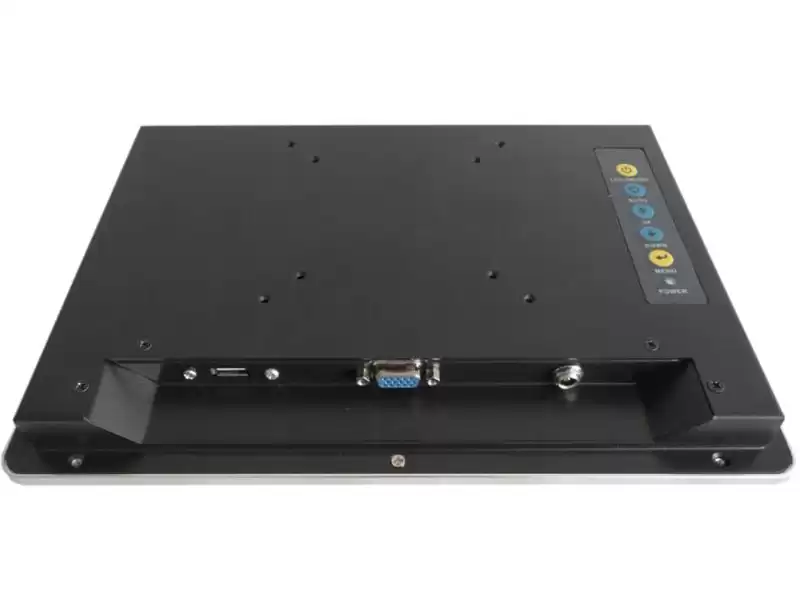

Interfaces DC12V;VGA;USB DC12V can be customised with Phoenix terminals or aerial plugs, customised with DVI; HDMI
Size 273(length)* 190(width)* 28(thickness)mm Net/Gross Weight 1.5/2KG
Power Supply 12V@5A Adapter
Installation mode Recessed screw mount;Recessed hook mounting; VISA wall mount



Product Features

■ Brushed aluminium panel

■ IP65 waterproof panel

■ DC12V power input

■ Capacitive touch screen, OEM resistive screen available

■ Various mounting options available



Work and Environment
Working temperature (-20~60)℃ Storage temperature -40~75℃ Environmental humidity 0~90% air humidity, no condensation
 IP rating   Panel IP65 Vibration 5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration
EMC GB9254-2008 class A Shock 10g acceleration, 11ms duration

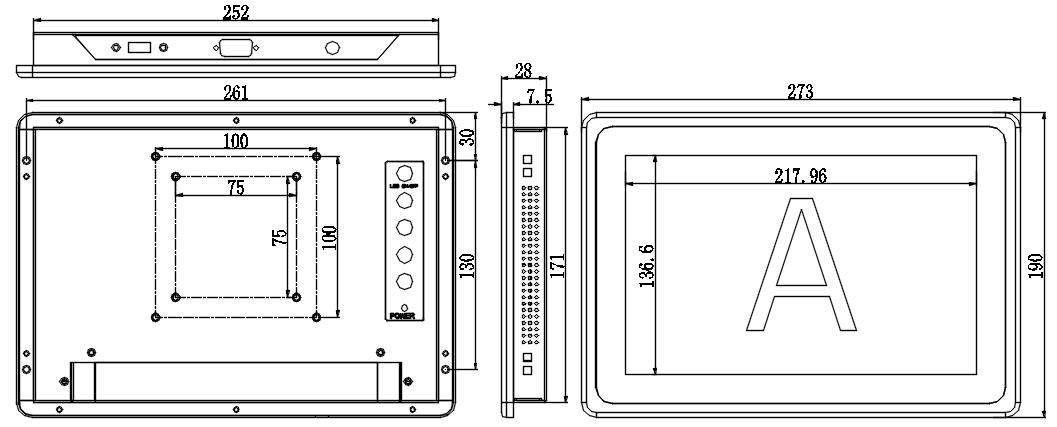

Product Installation Dimension Diagram



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity(MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
