10.1 Inch vertical screen 1200(RGB)*1920 TFT module

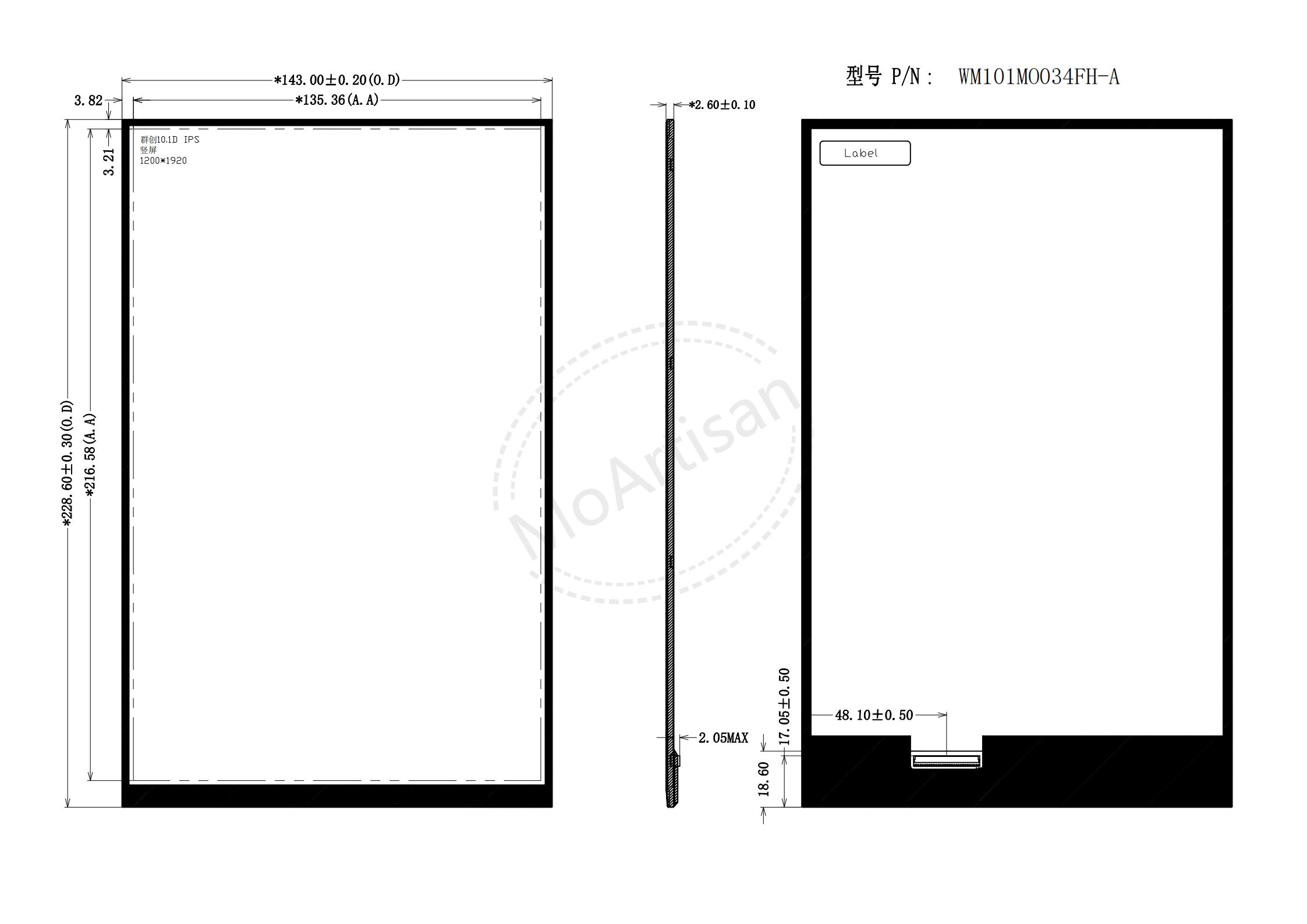

Production Drawings
WM101MO034FH-A Introduction
-
10.1 (10:16) inch
diagonally measured active display area.
-
WUSGA (1200 horizontal by 1920
vertical pixel) resolution.
-
it is a high resolution and high contrast ratio LCD module.
-
This lcm is suitable for camera auxiliary display, personal photo frame, or a monitor.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WUSGA, 1200RGB*1920, IPS, portrait view screen
|
143*228.6*2.6
|
4X8
LED (50K)
|
40 PIN Con, 8-Bit, MIPI
|
350 nits/1000
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM101MO034FH-A
|
Production Applications
Mobile Terminal, Digital photo frame, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead Time for sample: 3~4 weeks.
Notes:
It is a main line of goods and has been attention by user.
It is especially suitable for use as a monitor, a magic mirror or a digital photo frame display.
