10.1 Inch vertical 800(RGB)*1280 TFT module high brightness wide operating temperature

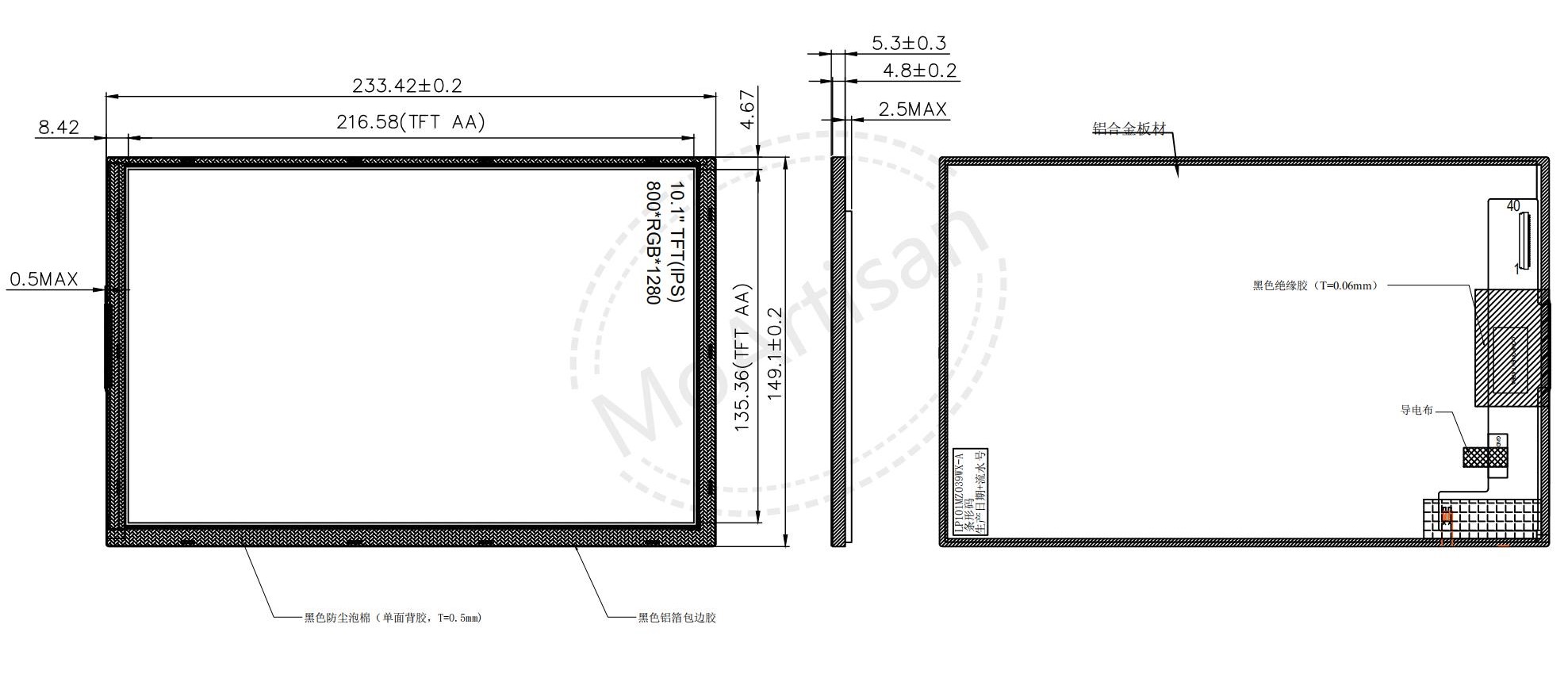

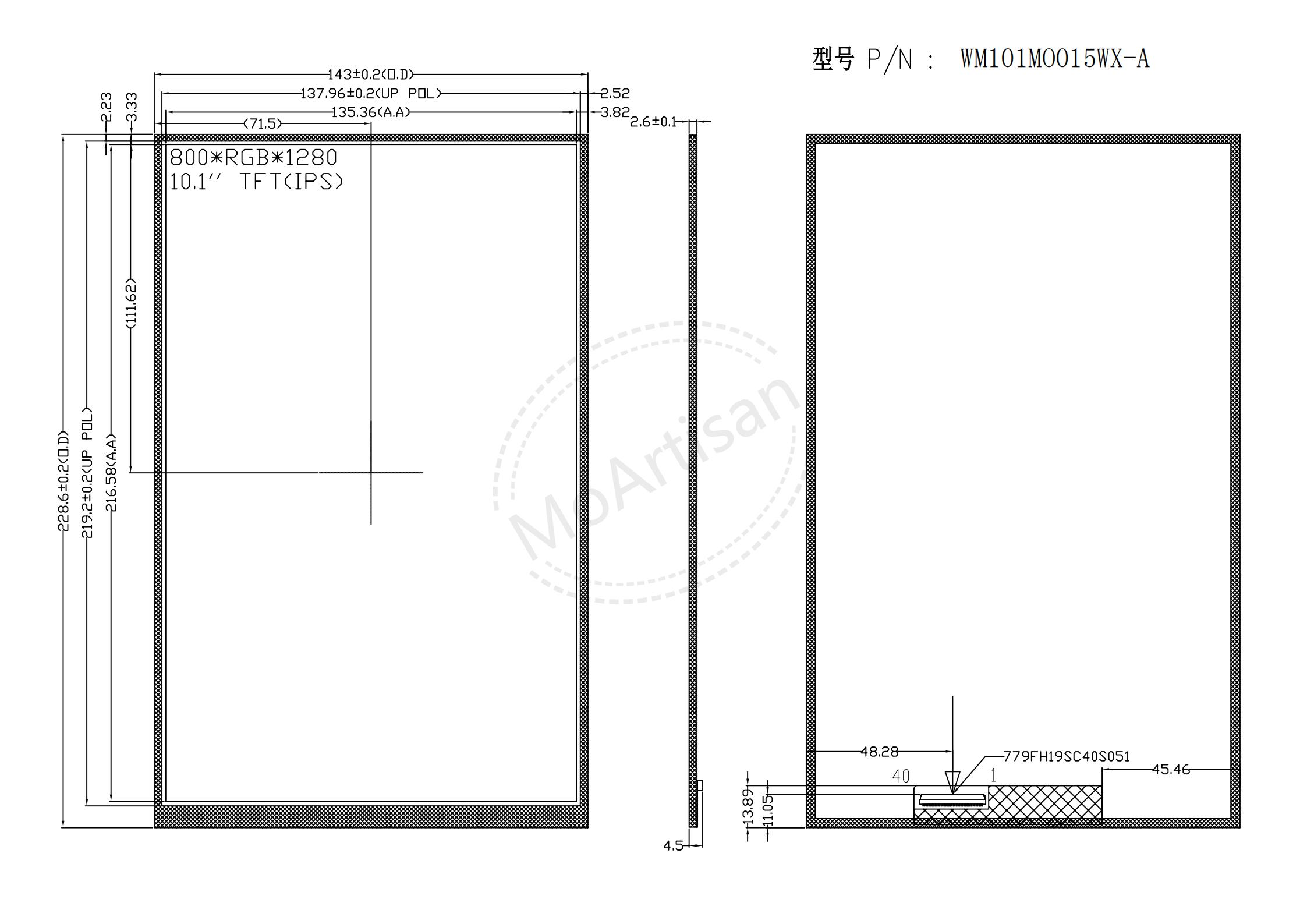

Production Drawings

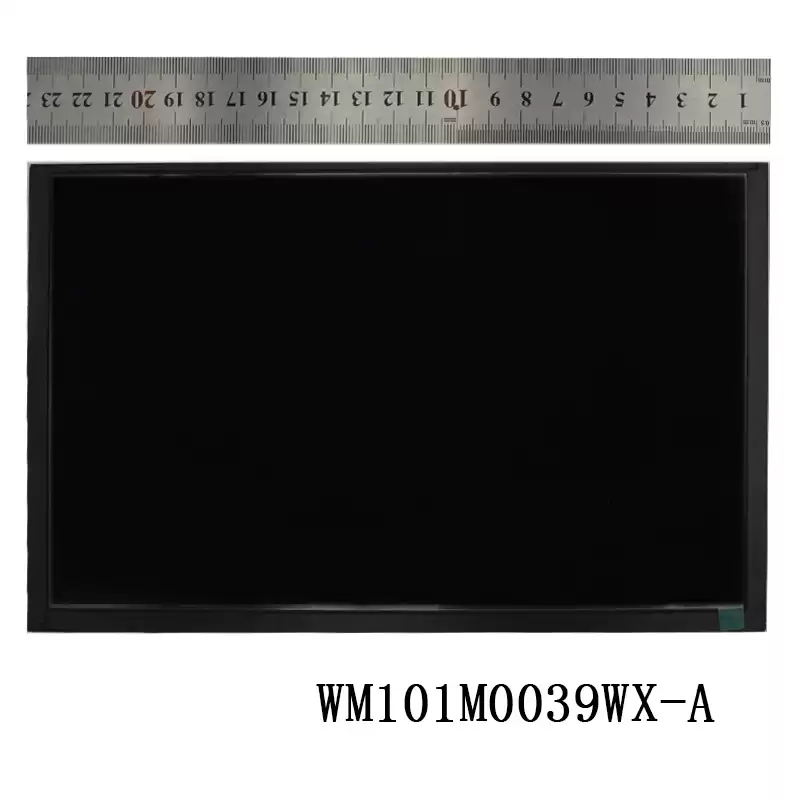

WM101MO039WX-A/015WX-A Introduction
-
10.1 (10:16) inch
diagonally measured active display area.
-
WXGA (800 horizontal by 1280
vertical pixel) resolution, portrait view panel.
-
10.1 inch lcd module with 1000 nits brightness, 450 nits brightness for each.
-
40 PIN CON, MIPI interface.
|
|
About Part Number
WM020MO001QV-A: WM---Brand Abbreviation; 020---Display Inch; MO---Module;
MR---Module+RTP; MC---Module+PCAP; MP---Module+PCB; CP---Moudule+PCAP+PCB…;
001---Serial Number; QV/WV/WX/XG…---Format Solution; A/B/C...---Versions
|
|
|
Size
|
Description
|
LCM Outline
mm
|
LED L/T (Hrs)
|
Interface
|
Brightness/CR
|
Temperature
Range (°C)
|
Viewing Angle
U/D/L/R
|
LCM P/N
|
|
10.1
|
WXGA, 800RGB*1280, IPS, portrait view screen
|
149.1*233.42*4.8
149.1*233.42*2.6
|
8X5 LED
4X8
LED
(50K)
|
40 PIN Con, 8-Bit, MIPI
|
1000 nits/800
450 nits/800
|
Topa: -20~+70
Tstg: -30~+80
|
85/85/85/85
|
WM101MO039WX-A
WM101MO015WX-A
|
Production Applications
Mobile Terminal, Digital photo frame, Personal Navigation Device, Multimedia applications and Others AV system.
Production Customized
It can be modified according to customer requirements.
Lead time for sample: 3~4 weeks.
Notes:
This product is suitable for digital photo frame display and access control system display.
It is a popular item.
