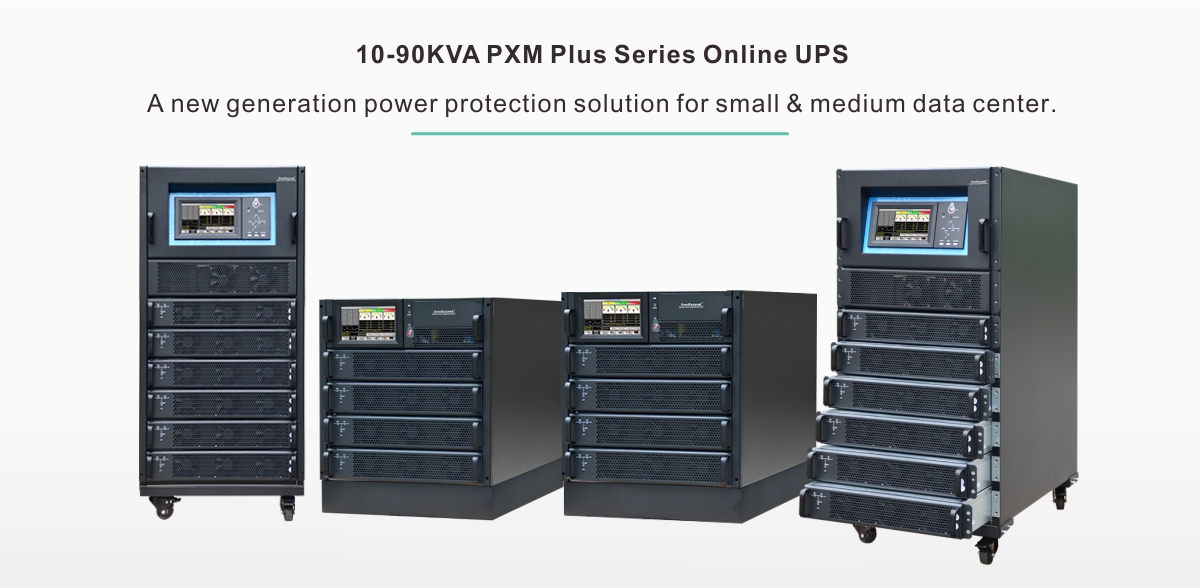

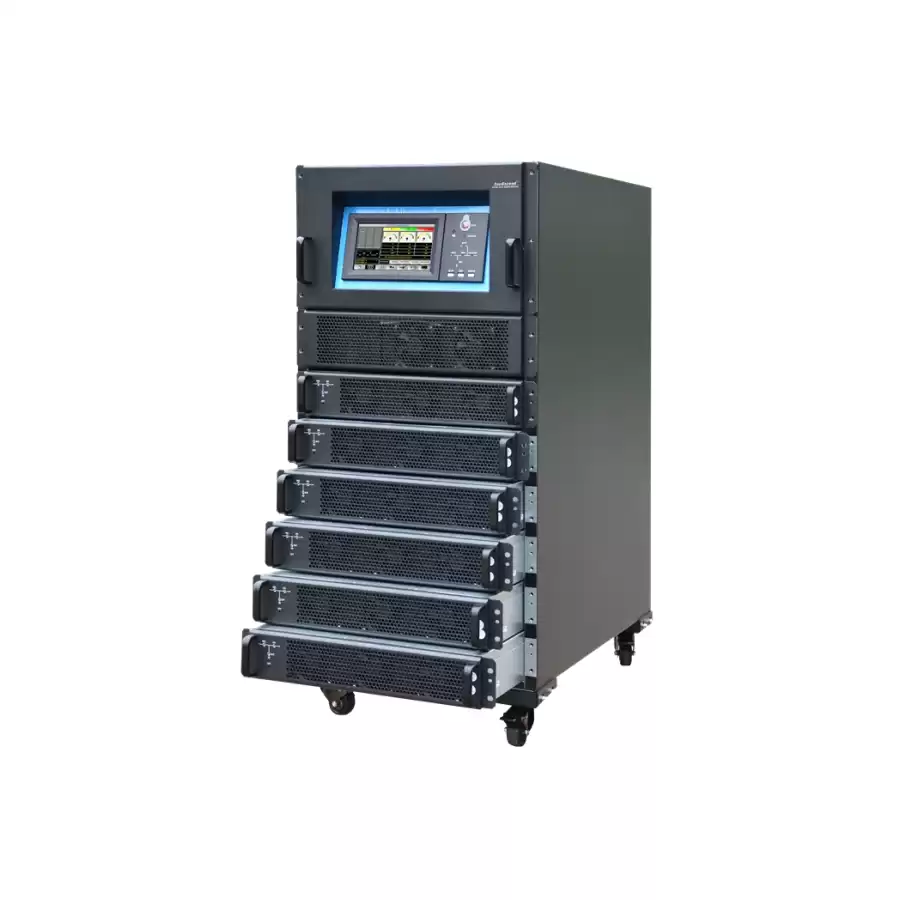

10-90kVA PXM Plus Series Modular UPS

10-90kVA PXM Plus Series Modular UPS

10kVA and 15kVA module, 380/400/415VAC, 3:3

The PXM Plus Modular UPS is a new generation Uninterruptible power supply. The parallel architecture adopts a highly intelligent modular design to achieve maximum power availability and redundancy. With advanced IDC power solutions and smart management technologies it is specially designed to meet the protection demands of mission critical loads in data centers or other important applications. Its flexible configuration of 3/3 and 3/1, compact structure is the ideal choice for small and medium data center.

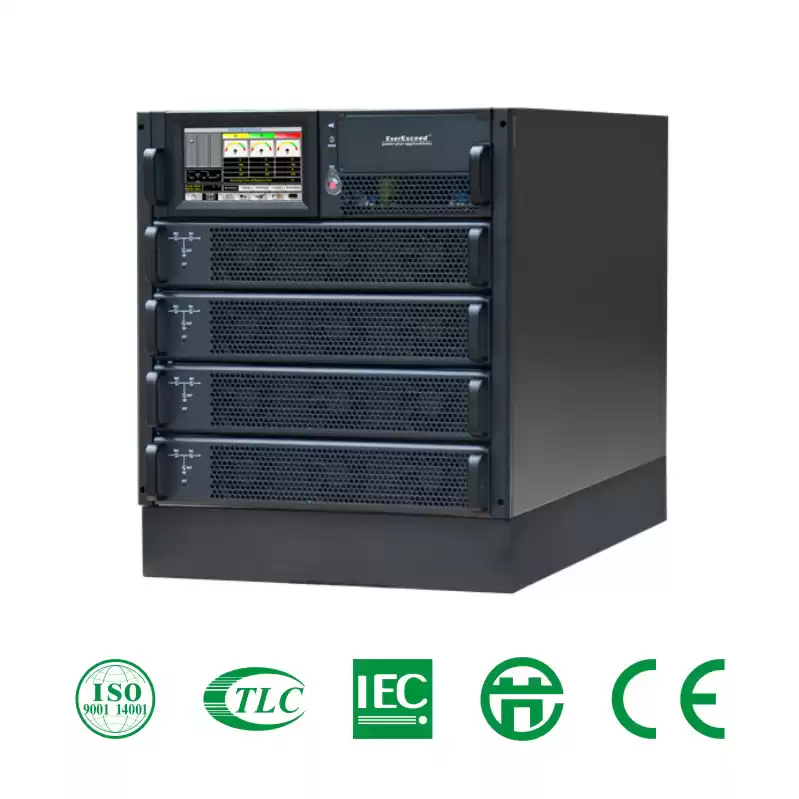

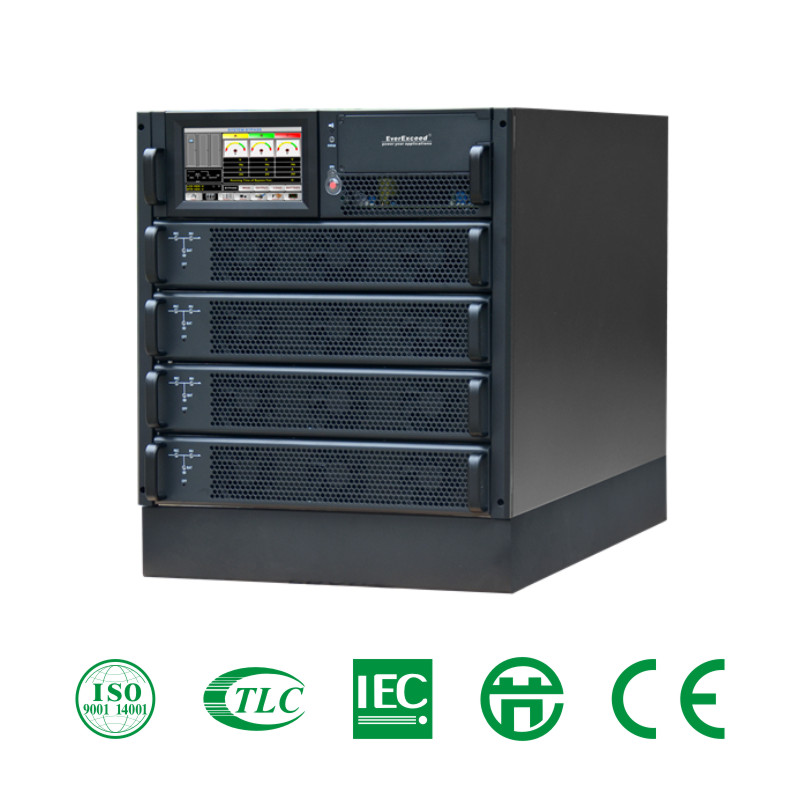

  • CertificateTLC, CE
  • ApplicationsISP, IDC, Computer room, small & medium data center
  • EfficiencyUp to 98%
  • Rated frequency40Hz-70Hz
  • Rated voltage380/400/415VAC
  • Rated capacity10-90KVA
  • ModelPXM Plus


Technical Feature

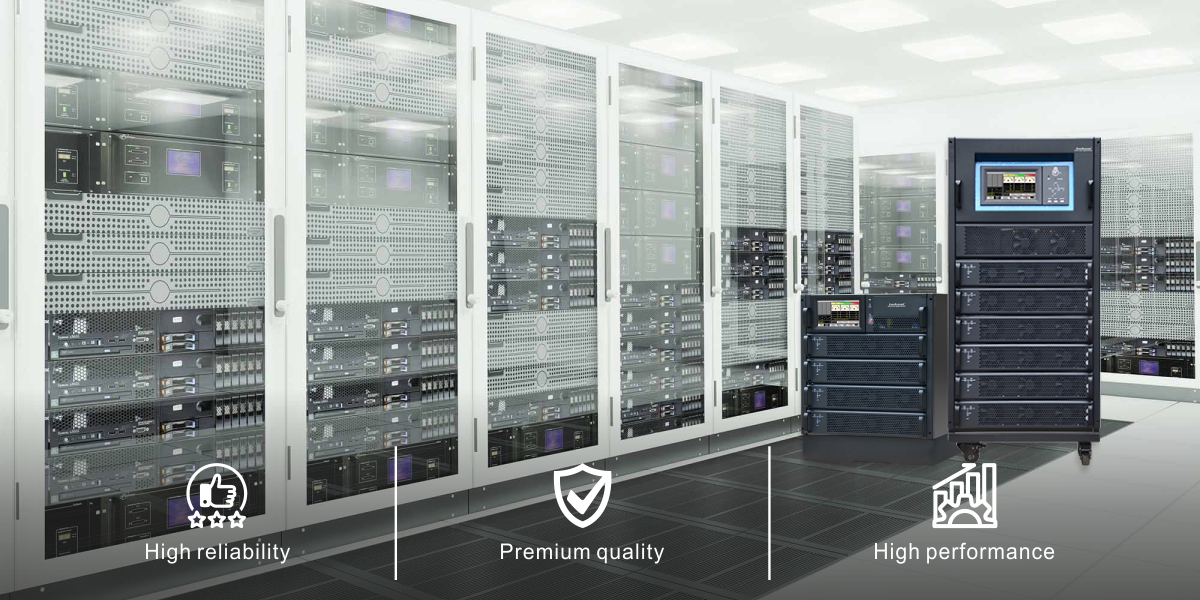

Integrated solution for data center

Rack modular design

High efficiency


UPS can be integrated with battery cabinet, PDU and external maintenance bypass, offering excellent choice for data center

Compatible with 19” standard rack cabinet, convenient to be integrated with servers.

System efficiency up to 96%






Intelligent charging management



High power density


Flexible configuration


The system intelligently control the whole process of charging & discharging, effectively improve the life time of the battery

10/15KVA power module in 2U height, saving great amount of space, easy for capacity expansion

The system can be configured to 3/3 and 3/1

without derating






Smart sleep function

Self aging mode

Multi communication interface


System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency

Energy internal circle technology, system can run with full load ,saving more than 90% energy

Provide RS232, RS485, USB, SNMP & programmable dry contacts.7" touch color LCD with graphic display which is easier for customer to operate


Application

 ISP (Internet Service Provider),   IDC (Internet Data Center),  Computer Room, Small or medium data centers
